SCO68R PCB layout, top view — open source STM32 board by scottcjx

About the SCO68R PCB

SCO68R is an open source STM32 PCB design by scottcjx, published on GitHub under the GPL-3.0 license. It is a 2-layer board, with 190 components from 21 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the AMS1117-3.3 and TPD4E05U06DQAR. By type, the board carries 72 diodes, 22 capacitors, 14 resistors, 3 ICs, 2 connectors and 2 switches.

It belongs with the displays & leds designs in this gallery, and the repository also holds 2 earlier revisions of it.

From the project

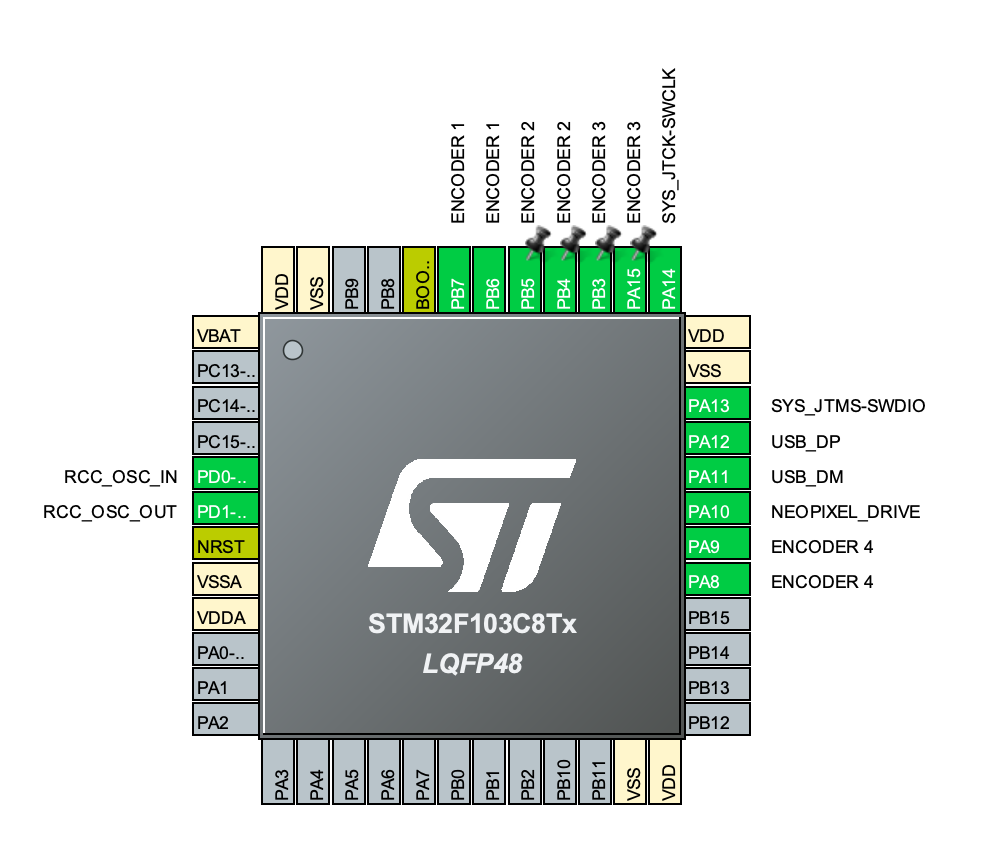

- Selected MCU: STM32F103C8T6 - MCU has 4 timers with STM's "Encoder Mode", SCO68R can support up to 4 rotary encoders.

SCO68R, from the project README
From the project README

Main components on the SCO68R

AMS1117-3.3TPD4E05U06DQARSTM32F103C8Tx

SCO68R bill of materials (BOM)

190 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
TPD4E05U06DQAR
U2
1
STM32F103C8Tx
U3
1
BSS138
Q1
1
16MHz
Y1
1
USB C
J1
1
Conn_02x04_Row_Letter_First
J2
1
Polyfuse
F1
68
Keyswitch_&_Diode
KSW1, KSW2, KSW3, KSW4, KSW5, KSW6, KSW7, KSW8 +60
4
EC11_RotaryEnc
KSWR1, KSWR2, KSWR3, KSWR4
2
SW_MEC_5E
SW1, SW2
68
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +60
3
SK6812MINI
D69, D70, D71
1
D_TVS
D100
2
22uF
C1, C2
2
10pF
C3, C4
1
10uF
C5
17
100nF
C6, C7, C8, C9, C10, C11, C12, C13 +9
3
10k
R1, R5, R6
10
5k1
R2, R3, R7, R8, R9, R10, R11, R12 +2
Show 1 more
QtyPartRefs
1
1k5
R4

SCO68R design files

The KiCad project lives in the scottcjx/SCO68R repository on GitHub; these links point at the commit this page was built from.

SCO68R: common questions

What microcontroller does the SCO68R use?

The SCO68R is built around the STM32F103C8Tx, from the STM32 family.

How big is the SCO68R PCB?

The SCO68R has 2 copper layers and is 1.6 mm thick.

How many components are on the SCO68R?

190 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SCO68R design files?

From the scottcjx/SCO68R repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SCO68R design in my own project?

Yes, under the terms of its GPL-3.0 license, which scottcjx chose for the repository.

Can I test firmware for the SCO68R without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
