Keithley 17X USB PCB layout, top view — open source TI MSP430/CC board by sdp8483
Simulate this board

About the Keithley 17X USB PCB

Keithley 17X USB is an open source TI MSP430/CC PCB design by sdp8483, published on GitHub under the MIT license. It is a 2-layer board measuring 70.5 × 44 mm, with 38 components from 24 distinct parts.

Its main chip is the MSP430FR2110IPW16R, from the TI MSP430/CC family. Other key parts include the TLP281-4, MIC5504-3.3YM5 and FT230XS-R. By type, the board carries 11 resistors, 8 diodes, 7 capacitors, 5 ICs, 3 connectors and 1 jumper.

From the project

USB adapter for Keithley 179 and 177

The Keithley 177 and 179 Digital Multimeter have a GPIB option. If your meter has this option installed you may want to get a GPIB to USB adapter and use that. If your meter does not have this option installed then the Keithley 17x USB Adapter is for you. The original GPIB option was a daughter board that connected to the meter's main board using connector J1008. This connector is a 14 pin DIP socket located right behind the input terminals of the meter. Before continuing with the project I suggest you open up your meter and locate this connector. Below are pictures of the socket location on…

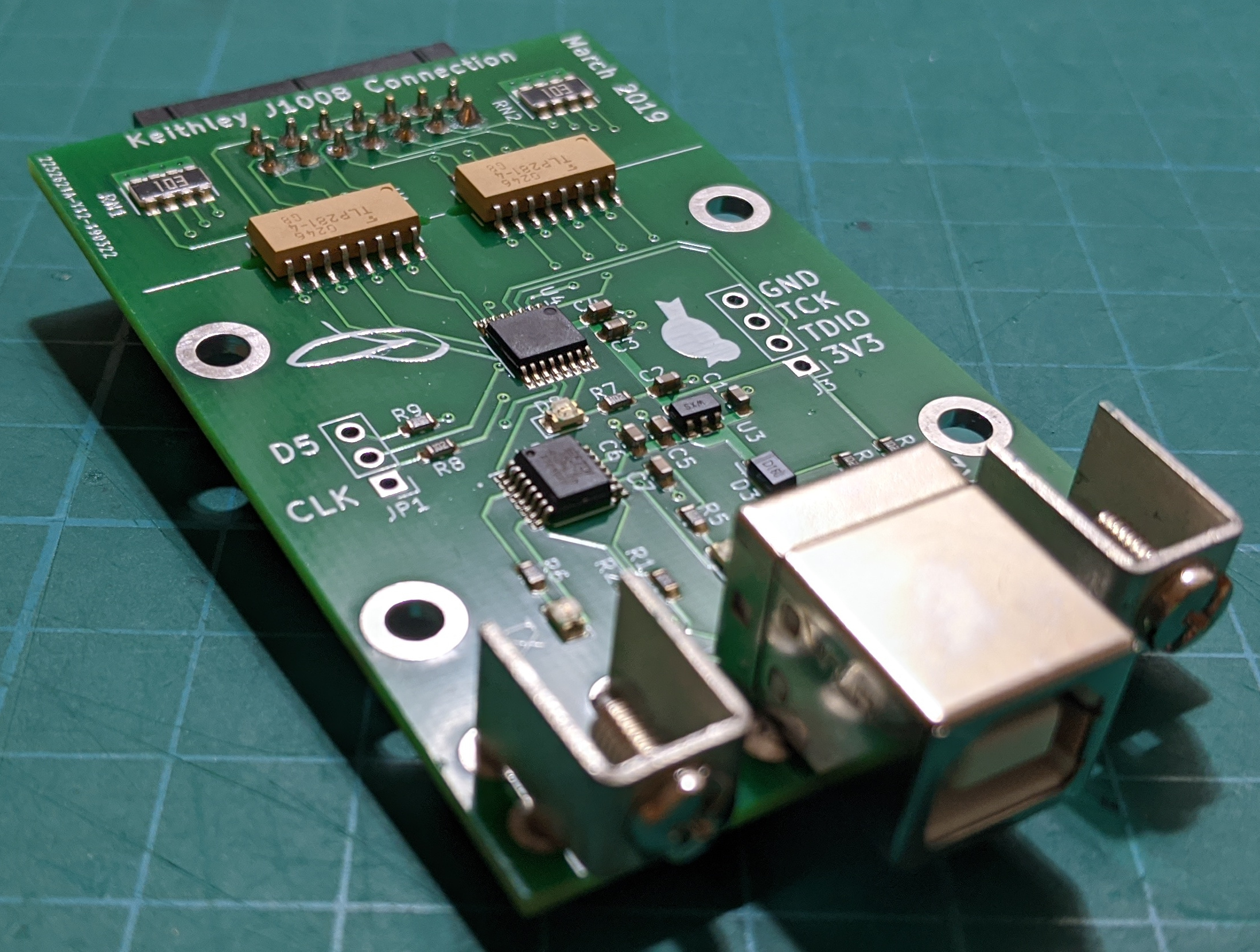

Keithley 17X USB, from the project README
From the project README

Main components on the Keithley 17X USB

TLP281-4MIC5504-3.3YM5MSP430FR2110IPW16RFT230XS-R

Keithley 17X USB bill of materials (BOM)

38 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TLP281-4
U1, U2
1
MIC5504-3.3YM5
U3
1
MSP430FR2110IPW16R
MSP430FR2110
U4
1
FT230XS-R
FT230XS
U5
1
E8144-B02022-L
USB_B
J1
1
302-R141
SIGNAL INPUT
J2
1
PROG
J3
2
7761
M3_RA
H5, H6
1
RATE
JP1
1
0ZCJ0050FF2G
TH1
1
TPD1E10B06QDPYRQ1
TPD1E10B06
D1
1
ESD122DMXR
D2
1
DSS16UTR
D3
1
NCD0805R1
5V
D4
1
NCD0805R1
3V3
D5
1
NCD0805R1
RXLED
D6
1
NCD0805R1
TXLED
D7
1
NCD0805R1
READ
D8
3
CL10A105KQ8NNNC
1uF
C1, C2, C3
3
C0603C104Z3VACTU
100nF
C4, C5, C7
Show 4 more
QtyPartRefs
1
CL10A475KQ8NNNC
4.7uF
C6
2
RMCF0603JT27R0
27R
R1, R2
7
RC0603JR-071KL
1k
R3, R4, R5, R6, R7, R8, R9
2
YC324-JK-0710KL
10k
RN1, RN2

Keithley 17X USB design files

The KiCad project lives in the sdp8483/Keithley_17X_USB repository on GitHub; these links point at the commit this page was built from.

Keithley 17X USB: common questions

What microcontroller does the Keithley 17X USB use?

The Keithley 17X USB is built around the MSP430FR2110IPW16R, from the TI MSP430/CC family.

How big is the Keithley 17X USB PCB?

The Keithley 17X USB measures 70.5 × 44 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keithley 17X USB?

38 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keithley 17X USB design files?

From the sdp8483/Keithley_17X_USB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Keithley 17X USB design in my own project?

Yes, under the terms of its MIT license, which sdp8483 chose for the repository.

Can I test firmware for the Keithley 17X USB without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
