EdgeCubeH3
About the EdgeCubeH3 PCB
EdgeCubeH3 is an open source PCB design by sentoxo, published on GitHub under the CERN-OHL-W-2.0 license. It is a 6-layer board measuring 52 × 52 mm, with 124 components from 62 distinct parts.
Other key parts include the H3, K4B4G1646Q, USBLC6-2SC6, SY6280AAC and SY8089AAAC. By type, the board carries 45 capacitors, 45 resistors, 13 ICs, 8 connectors, 4 transistors and 4 diodes.
From the project

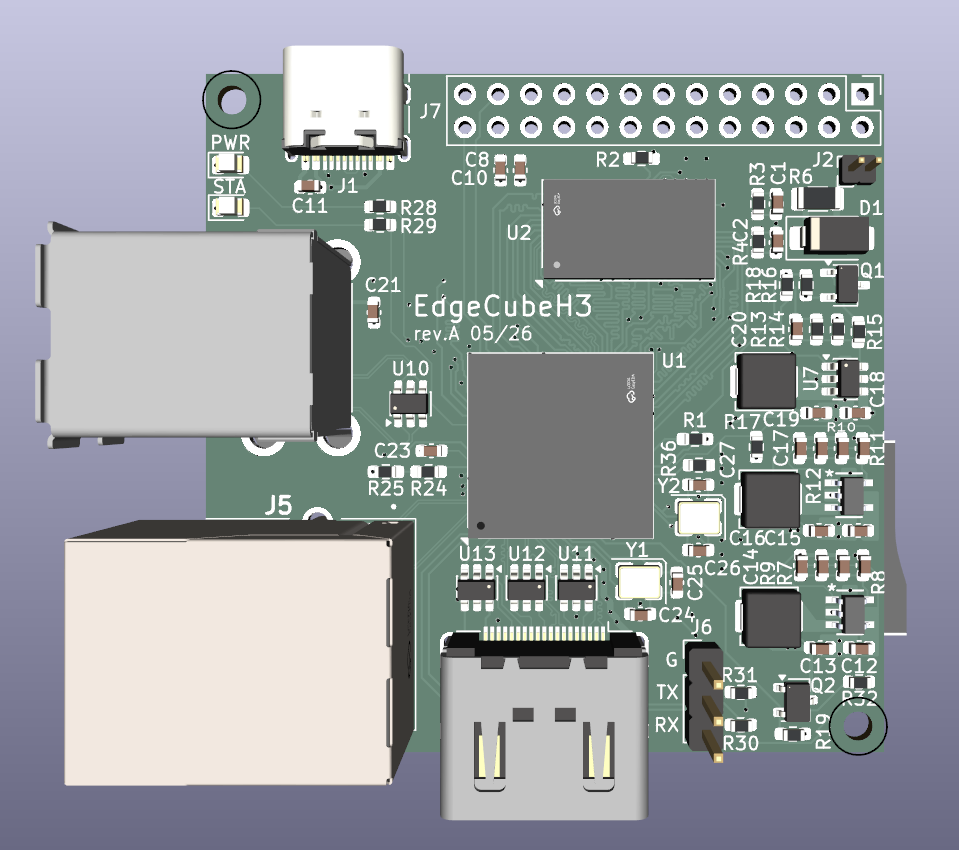

SBC on H3
Custom, cheap, simple and hand-solder single-board computer with allwinner H3 CPU. Compatibilie with Orange Pi One OS's likes Armbian.
- H3 Quad-Core ARM Cortex-A7 @ 1.2GHz CPU - Mali400 MP2 OpenGL ES 2.0 GPU - 512MiB of DDR3L RAM, 16b - 16MB SPI FLASH (Optional) - Ethernet PHY, 100Mb/s - GPDI video out - USB connectors: - 2x USB-A - 1x USB-C - uSD card slot - GPIO - Small format 52x52mm
Main components on the EdgeCubeH3
EdgeCubeH3 bill of materials (BOM)
124 components, 62 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | H3 | FBGA-347_14x14mm_Layout21x21_P0.65mm | U1 |
| 1 | K4B4G1646Q | FBGA-96_7.5x13mm_Layout9x16_P0.8mm | U2 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U3 |
| 1 | SY6280AAC | SOT-23-5 | U4 |
| 2 | SY8089AAAC | SY8089AAAC_SGY | U5, U6 |
| 1 | SY8032 | SOT-23-6 | U7 |
| 1 | W25Q128JVP | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U8 |
| 5 | USBLC6-4SC6 | SOT-23-6 | U10, U11, U12, U13, U14 |
| 2 | NPN | TSOT-23 | Q1, Q4 |
| 1 | PMOS | SOT-23W | Q2 |
| 1 | AO3404 | SOT-23 | Q3 |
| 1 | 24M | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 32K | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | USB PWR | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | SUPERCAP | PinHeader_1x02_P1.27mm_Vertical | J2 |
| 1 | USB_A_Stacked | USB_A_CUI_UJ2-ADH-TH_Horizontal_Stacked | J3 |
| 1 | GPDI_A | HDMI_A_Molex_208658-1001_Horizontal | J4 |
| 1 | 93626-3006 | 936263006 | J5 |
| 1 | DBG UART | PinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | GPIO | PinHeader_2x13_P2.54mm_Vertical | J7 |
Show 42 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Micro_SD_Card_Det1 | microSD_TF-01A | J8 |
| 1 | SS12 | D_SMA | D1 |
| 1 | 1N5819WS | D_SOD-323 | D2 |
| 1 | PWR | LED_0805_2012Metric | D4 |
| 1 | STA | LED_0805_2012Metric | D5 |
| 3 | 2u2 | L_APV_APH0420 | L1, L2, L3 |
| 3 | 100n | C_0603_1608Metric | C1, C2, C30 |
| 14 | 100n | C_0402_1005Metric | C3, C4, C5, C6, C28, C31, C32, C33 +6 |
| 11 | 10u | C_0603_1608Metric | C7, C8, C12, C13, C15, C16, C18, C19 +3 |
| 5 | 1u | C_0603_1608Metric | C9, C10, C11, C43, C44 |
| 2 | 22p | C_0603_1608Metric | C14, C17 |
| 5 | 15p | C_0603_1608Metric | C20, C24, C25, C26, C27 |
| 2 | 2u2 | C_0603_1608Metric | C21, C22 |
| 2 | 4u7 | C_0603_1608Metric | C23, C29 |
| 1 | 100n | R_0402_1005Metric | C45 |
| 2 | 240R-1% | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 4 | 2K | R_0603_1608Metric | R3, R4, R21, R22 |
| 1 | 100R | R_0402_1005Metric | R5 |
| 1 | 10R | R_1206_3216Metric | R6 |
| 2 | 680K | C_0603_1608Metric | R7, R9 |
| 1 | 75K | C_0603_1608Metric | R8 |
| 1 | 200K | C_0603_1608Metric | R10 |
| 1 | 100K | C_0603_1608Metric | R11 |
| 1 | 300K | C_0603_1608Metric | R12 |
| 4 | 10K | R_0603_1608Metric | R13, R17, R18, R32 |
| 1 | 12K | R_0603_1608Metric | R14 |
| 2 | 33K | R_0603_1608Metric | R15, R16 |
| 1 | 100K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19 |
| 1 | 5K6 | R_0603_1608Metric | R20 |
| 1 | 30K | R_0603_1608Metric | R23 |
| 1 | 5K6 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R24 |
| 1 | 470R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R25 |
| 4 | 470R | R_0603_1608Metric | R26, R27, R28, R29 |
| 2 | 120R | R_0603_1608Metric | R30, R31 |
| 1 | 33R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R33 |
| 2 | 47K | R_0603_1608Metric | R34, R35 |
| 1 | 56K | R_0603_1608Metric | R36 |
| 3 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R37, R38, R39 |
| 2 | 51K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R40, R41 |
| 1 | 10M | R_0603_1608Metric | R42 |
| 1 | 2R2 | R_0603_1608Metric | R47 |
| 2 | 5K1 | R_0603_1608Metric | R48, R49 |
EdgeCubeH3 design files
The KiCad project lives in the sentoxo/EdgeCubeH3 repository on GitHub; these links point at the commit this page was built from.
EdgeCubeH3: common questions
How big is the EdgeCubeH3 PCB?
The EdgeCubeH3 measures 52 × 52 mm, has 6 copper layers and is 1.06 mm thick.
How many components are on the EdgeCubeH3?
124 components, from 62 distinct parts. The full bill of materials is listed on this page.
Where can I download the EdgeCubeH3 design files?
From the sentoxo/EdgeCubeH3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the EdgeCubeH3 design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which sentoxo chose for the repository.
