Protected buck unrouted
About the Protected buck unrouted PCB
Protected buck unrouted is an open source PCB design by Shanshan3133, published on GitHub. It is a 2-layer board measuring 120 × 70 mm, with 31 components from 23 distinct parts.
Other key parts include the TPS26600PWPR and TPS5431DDA. By type, the board carries 16 resistors, 7 capacitors, 3 connectors, 2 ICs, 2 diodes and 1 inductor.
It belongs with the power & battery and test & measurement designs in this gallery.

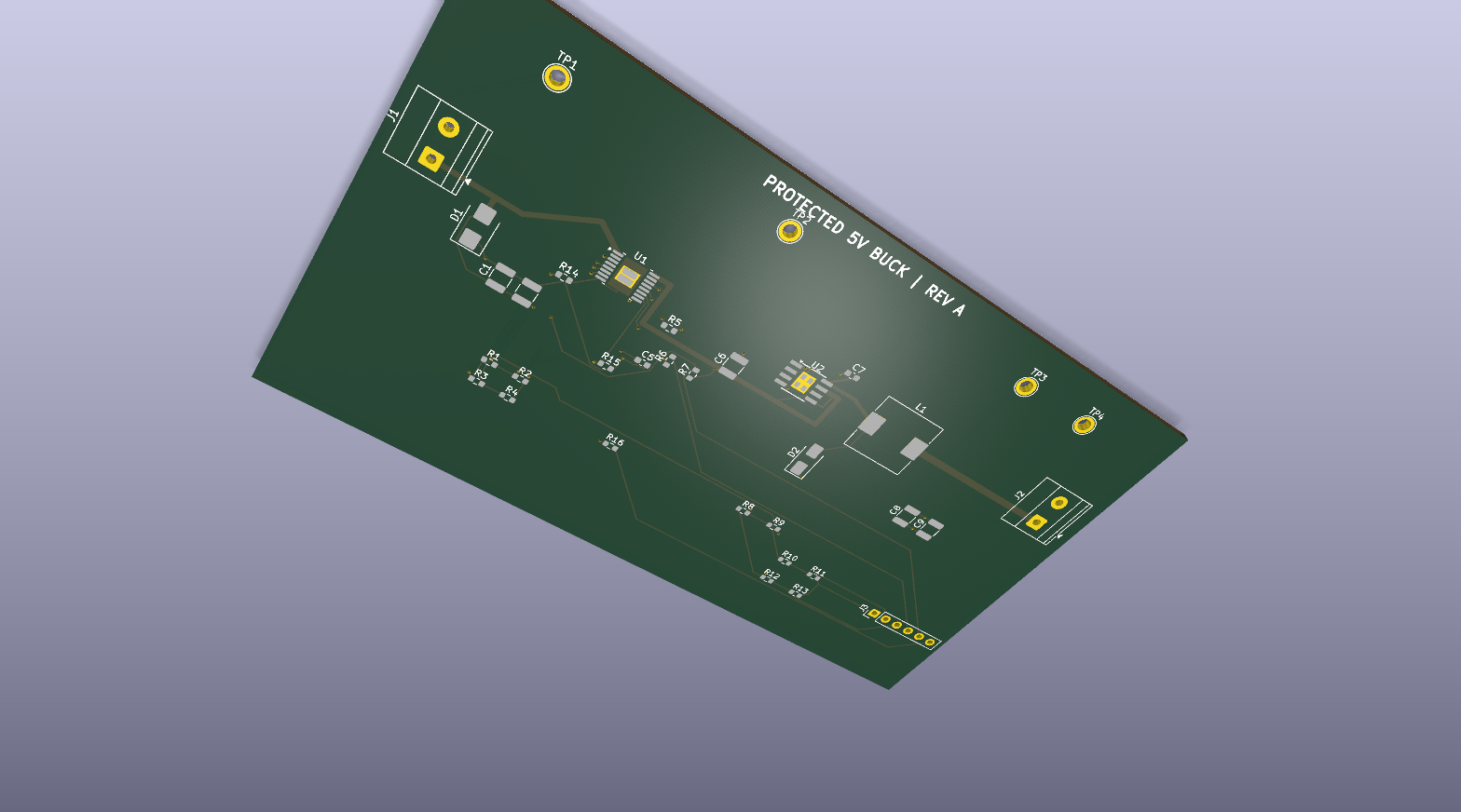

From the project
KiCad protected buck converter with Python-based automated hardware validation, fault injection, and CI reporting
A portfolio project combining a protected 5 V buck-converter PCB with a Python automated validation bench. It demonstrates PCB design, instrument automation, fault injection, safety interlocks, data logging, and CI-style reporting—the day-to-day concerns of hardware validation and systems-integration engineering.
The editable source is hardware/protectedbuck.kicadsch; its generated PDF is included for design review. KiCad 10.0.6 reports zero ERC errors and zero ERC warnings, and the automated parity check matches all 88 schematic pins to 88 PCB pads.
Main components on the Protected buck unrouted
Protected buck unrouted bill of materials (BOM)
31 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS26600PWPR TPS26600PWP | HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.66x2.46mm | U1 |
| 1 | TPS5431DDA | TI_SO-PowerPAD-8 | U2 |
| 1 | VIN 8-18V | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J1 |
| 1 | 5V OUT | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J2 |
| 1 | 1X06 DAQ | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | SMBJ24A | D_SMB | D1 |
| 1 | B340A | D_SMA | D2 |
| 1 | 15uH 4A | L_10.4x10.4_H4.8 | L1 |
| 3 | 10uF 50V | C_1210_3225Metric | C1, C2, C6 |
| 1 | 22NF 22nF | C_0603_1608Metric | C5 |
| 1 | 10NF 10nF BOOT | C_0603_1608Metric | C7 |
| 2 | 47uF 10V | C_1210_3225Metric | C8, C9 |
| 1 | 52.3k 1% | R_0603_1608Metric | R1 |
| 5 | 10k 1% | R_0603_1608Metric | R2, R4, R9, R11, R12 |
| 1 | 150k 1% | R_0603_1608Metric | R3 |
| 1 | 8.06k 1% | R_0603_1608Metric | R5 |
| 1 | 1k | R_0603_1608Metric | R6 |
| 2 | 100K 100k | R_0603_1608Metric | R7, R16 |
| 1 | 30.9k 1% | R_0603_1608Metric | R8 |
| 1 | 56k 1% | R_0603_1608Metric | R10 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 15k 1% | R_0603_1608Metric | R13 |
| 1 | 0R | R_0603_1608Metric | R14 |
| 1 | 16.9k 1% | R_0603_1608Metric | R15 |
Protected buck unrouted design files
The KiCad project lives in the Shanshan3133/automated-hardware-validation-framework repository on GitHub; these links point at the commit this page was built from.
Protected buck unrouted: common questions
How big is the Protected buck unrouted PCB?
The Protected buck unrouted measures 120 × 70 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Protected buck unrouted?
31 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Protected buck unrouted design files?
From the Shanshan3133/automated-hardware-validation-framework repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Protected buck unrouted design in my own project?
The repository has no license, so all rights stay with Shanshan3133. Use it as a reference, and ask the author before reusing the design.
