Pcb dev dsPIC30F6010A

shishir-dey·pcb-dev-dsPIC30F6010A·Hardware/pcb-dev-dsPIC30F6010A/pcb-dev-dsPIC30F6010A.kicad_pcb

Pcb dev dsPIC30F6010A layout, top view — open source PIC board by shishir-dey

About the Pcb dev dsPIC30F6010A

Pcb dev dsPIC30F6010A is an open source PIC PCB design by shishir-dey, published on GitHub under the MIT license. It is a 4-layer board measuring 60 × 80 mm, with 27 components from 17 distinct parts.

Its main chip is the DSPIC30F6010A-30I_PF, from the PIC family. By type, the board carries 17 capacitors, 3 connectors, 3 resistors, 1 IC, 1 crystal and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A 4-layer development board with a dsPIC30F6010A microcontroller. Made with KiCad

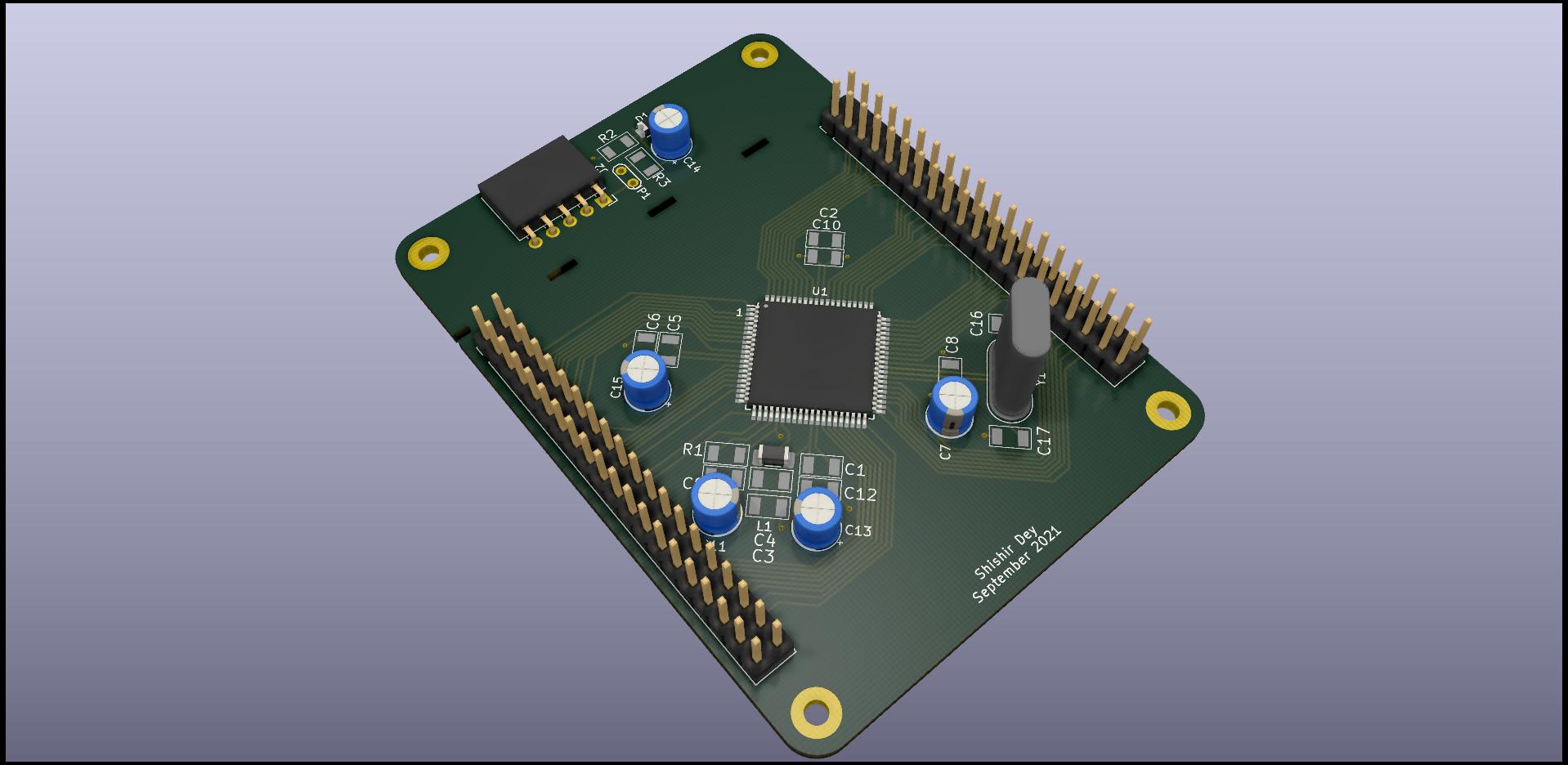

Pcb dev dsPIC30F6010A, from the project README
From the project README

Main components on the Pcb dev dsPIC30F6010A

DSPIC30F6010A-30I_PF

Pcb dev dsPIC30F6010A bill of materials (BOM)

27 components, 17 distinct parts.

QtyPartRefs
1
DSPIC30F6010A-30I_PF
U1
1
10MHz
Y1
1
Left Berg Strip
J1
1
PICkit connector
J2
1
Right Berg Strip
J3
1
CLL4148
D1
1
0E,1206
L1
4
103,1206
C1, C2, C3, C5
5
104,1206
C4, C6, C8, C10, C12
3
1uF, 25V
C7, C13, C15
1
0.01uF,1206
C9
1
2.2uF
C11
1
2.2uF, 25V
C14
2
22pF,1206
C16, C17
1
10E,1206
R1
1
22K,1206
R2
1
470E,1206
R3

Pcb dev dsPIC30F6010A design files

The KiCad project lives in the shishir-dey/pcb-dev-dsPIC30F6010A repository on GitHub; these links point at the commit this page was built from.

Pcb dev dsPIC30F6010A: common questions

What microcontroller does the Pcb dev dsPIC30F6010A use?

The Pcb dev dsPIC30F6010A is built around the DSPIC30F6010A-30I_PF, from the PIC family.

How big is the Pcb dev dsPIC30F6010A?

The Pcb dev dsPIC30F6010A measures 60 × 80 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Pcb dev dsPIC30F6010A?

27 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb dev dsPIC30F6010A design files?

From the shishir-dey/pcb-dev-dsPIC30F6010A repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb dev dsPIC30F6010A design in my own project?

Yes, under the terms of its MIT license, which shishir-dey chose for the repository.

Can I test firmware for the Pcb dev dsPIC30F6010A without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
