Cv binary seq eurorack

shulltronics·cv-binary-seq-eurorack

Cv binary seq eurorack PCB layout, top view — open source board by shulltronics

About the Cv binary seq eurorack PCB

Cv binary seq eurorack is an open source PCB design by shulltronics, published on GitHub. It is a 4-layer board measuring 111.3 × 22.4 mm, with 91 components from 39 distinct parts.

Other key parts include the 3097_TFT_Display_SPI, 4002_RP2040, 4032_Adjustable_Reg_200mA_SOT-23-5, 4014_Voltage_Reference_5V_SOT23-6 and 4001_MCP48FEB24_DAC. By type, the board carries 39 resistors, 24 capacitors, 12 ICs, 12 connectors, 2 switches and 1 crystal.

It belongs with the audio designs in this gallery.

From the project

A 1U Eurorack Module for Triggering CV Sequences

This is a 1U Eurorack module that maps four trigger inputs to four CV outputs. Inspired by the CV capabilities of Pamela's New Workout, cv-binary-sequencer aims to produce customizable and intricate CV outputs for controlling other modules. There is a mapping of the 16 possible trigger inputs to a combination of CV outputs. On each trigger edge of an input CVs will change to the value specified by the mapping.

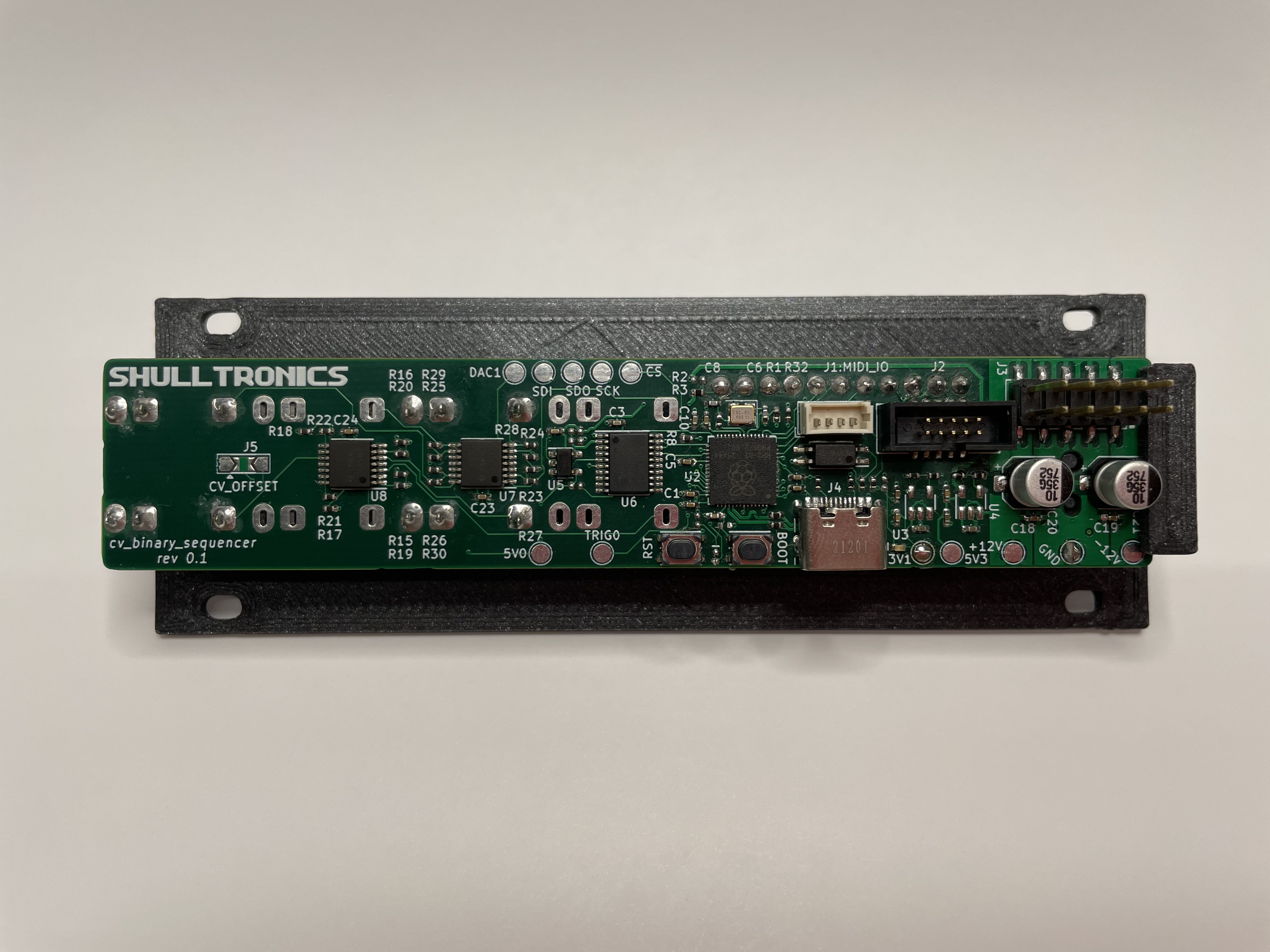

Cv binary seq eurorack, from the project README
From the project README

Main components on the Cv binary seq eurorack

3097_TFT_Display_SPI4002_RP20404032_Adjustable_Reg_200mA_SOT-23-54014_Voltage_Reference_5V_SOT23-64001_MCP48FEB24_DAC3099_TL074CPW_SMD4028_OptoIsolator_TLP290PWRSTAT4048_W25Q16JVSSIQ

Cv binary seq eurorack bill of materials (BOM)

91 components, 39 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
3097_TFT_Display_SPI
U1
1
4002_RP2040
U2
2
4032_Adjustable_Reg_200mA_SOT-23-5
U3, U4
1
4014_Voltage_Reference_5V_SOT23-6
U5
1
4001_MCP48FEB24_DAC
U6
2
3099_TL074CPW_SMD
U7, U8
1
4028_OptoIsolator_TLP290
U9
1
PWR
U10
1
STAT
U11
1
4048_W25Q16JVSSIQ
U12
1
4004-Crystal-12MHz_GND24
Y1
1
:MIDI_IO
J1
1
3086_Connector_Eurorack_Power
J3
1
3096_USBC_RA_SMD
J4
1
CV_OFFSET
J5
8
3085_MiniJack_Thonk_Vert
J6, J7, J8, J9, J10, J11, J12, J13
1
4025_Encoder_Switch_SMD
E1
1
RST
SW1
1
BOOT
SW2
12
3089_Capacitor_100n_16V_0402
C1, C2, C4, C5, C7, C9, C10, C11 +4
Show 19 more
QtyPartRefs
4
3089_Capacitor_100n_16V_SMD
C3, C22, C23, C24
2
4003_Capacitor_22pF_50V_0402
C6, C8
4
4035_Capacitor_2u2_25V_0402
C13, C15, C16, C17
2
4031_Capacitor_10u_35V_SMD
C20, C21
4
4008_Resistor_SMD_10k_0.125W_1%
R1, R8, R32, R39
2
DNP
R2, R38
2
4021_Resistor_SMD_Jumper
R3, R36
2
4010_Resistor_SMD_1k_0.125W_1%
R4, R5
2
4011_Resistor_SMD_27_0.125W_1%
R6, R7
2
4016_Resistor_SMD_27k_0.125W_1%
R9, R11
1
4033_Resistor_SMD_18k_0.125W_1%
R10
1
4034_Resistor_SMD_8k2_0.125W_1%
R12
2
4009_Resistor_SMD_5k1_0.10W_1%
R13, R14
4
4023_Resistor_SMD_56k_0.125W_1%
R15, R16, R17, R18
4
4022_Resistor_SMD_120k_0.125W_1%
R19, R20, R21, R22
8
4006_Resistor_SMD_68k_0.125W_1%
R23, R24, R25, R26, R27, R28, R29, R30
2
4030_Resistor_SMD_220_0.125W_1%
R31, R33
2
4038_Resistor_SMD_100_0.125W_1%
R34, R35
1
JMP
R37

Cv binary seq eurorack design files

The KiCad project lives in the shulltronics/cv-binary-seq-eurorack repository on GitHub; these links point at the commit this page was built from.

Cv binary seq eurorack: common questions

How big is the Cv binary seq eurorack PCB?

The Cv binary seq eurorack measures 111.3 × 22.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Cv binary seq eurorack?

91 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cv binary seq eurorack design files?

From the shulltronics/cv-binary-seq-eurorack repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cv binary seq eurorack design in my own project?

The repository has no license, so all rights stay with shulltronics. Use it as a reference, and ask the author before reusing the design.
