SuperClockController

silicagel777·SuperClock·hw/controller/SuperClockController.kicad_pcb

SuperClockController PCB layout, top view — open source AVR/Arduino board by silicagel777

About the SuperClockController PCB

SuperClockController is an open source AVR/Arduino PCB design by silicagel777, published on GitHub under the MIT license. It is a 2-layer board measuring 139.7 × 48.3 mm, with 77 components from 25 distinct parts.

Its main chip is the ATmega32A-A, from the AVR/Arduino family. Other key parts include the DS3231SN and DS1307ZN. By type, the board carries 31 resistors, 18 transistors, 11 capacitors, 6 connectors, 3 ICs and 3 switches.

It belongs with the displays & leds and retro computing designs in this gallery.

From the project

A DIY desk clock with retro-style dot matrix display

A DIY desk clock with retro-style dot matrix display

- A retro-style dot matrix display: - 17x6 5mm LED matrix - Different LED colors for main area, status bar and number separator - No flickering, ghosting or uneven brightness - High refresh rate of 460Hz - 8-bit global brightness and 3-bit per-pixel brightness - Global brightness is automatically (and smoothly) adjusted by ambient conditions, just like on your phone! - Accurate timekeeping: - Temperature-compensated crystal clock (DS3231SN chip) - Backup power to keep the clock ticking (CR2032 battery) - Displays minute, hour, day…

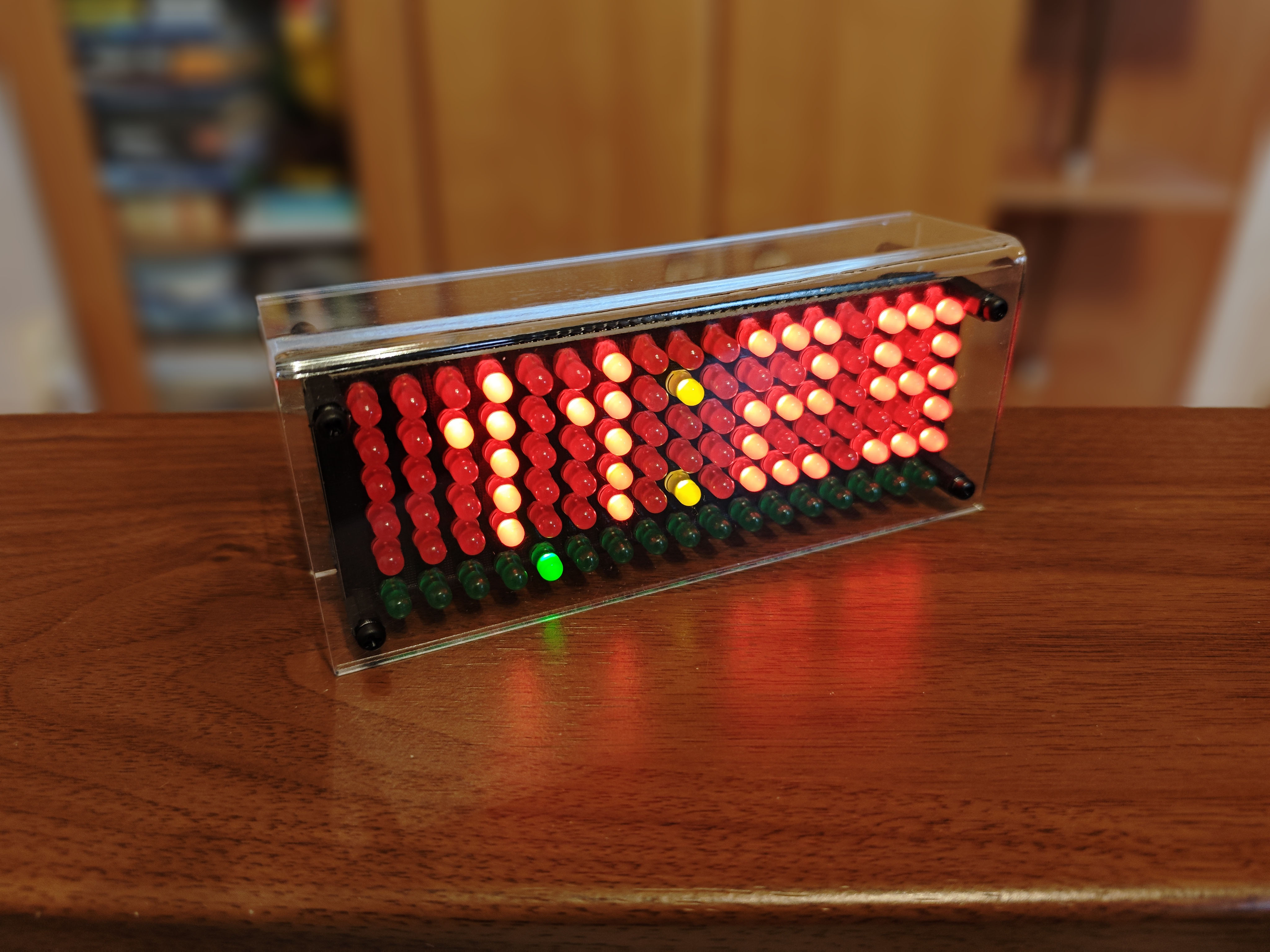

SuperClockController, from the project README
From the project README

Main components on the SuperClockController

ATmega32A-ADS3231SNDS1307ZN

SuperClockController bill of materials (BOM)

77 components, 25 distinct parts.

QtyPartRefs
1
ATmega32A-A
U1
1
DS3231SN
U2
1
DS1307ZN
U3
18
2N7002K
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +10
1
16MHz
Y1
1
32.768kHz
Y2
1
Led Cathodes
J1
1
Led Anodes
J2
1
Yellow LED 0
J3
1
Yellow LED 1
J4
1
USB_A
J5
1
ATmega ISP
J6
1
CR2032
BT1
1
Passive Buzzer 42R
BZ1
3
SW_Push
SW1, SW2, SW3
1
1N5819WS
D1
1
100uF
C1
2
12pF
C2, C3
8
0.1uF
C4, C5, C6, C7, C8, C9, C10, C11
17
~
R1, R2, R3, R4, R5, R6, R7, R8 +9
Show 5 more
QtyPartRefs
7
220
R18, R19, R20, R21, R22, R24, R25
1
3.3K
R23
2
10K
R26, R31
3
4.7K
R27, R28, R29
1
GL5516
R30

SuperClockController design files

The KiCad project lives in the silicagel777/SuperClock repository on GitHub; these links point at the commit this page was built from.

SuperClockController: common questions

What microcontroller does the SuperClockController use?

The SuperClockController is built around the ATmega32A-A, from the AVR/Arduino family.

How big is the SuperClockController PCB?

The SuperClockController measures 139.7 × 48.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SuperClockController?

77 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the SuperClockController design files?

From the silicagel777/SuperClock repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SuperClockController design in my own project?

Yes, under the terms of its MIT license, which silicagel777 chose for the repository.

Can I test firmware for the SuperClockController without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
