About the 7SBMS - Balance Board

7SBMS - Balance Board is an open source PCB design by simple-ee, published on GitHub under the MIT license. It is a board measuring 60 × 70 mm, with 97 components from 7 distinct parts.

Other key parts include the 8S_PASSIVE_V2. By type, the board carries 72 resistors, 24 transistors and 1 IC.

It belongs with the power & battery designs in this gallery.

From the project

This is the modular BMS for use with 8S LiFePO4

Right now I'm essentially maxed out resources and memory on the atmega328PB and cannot add anymore features which is why I'm planning on upgrading the design.

Even though this design is now my old design its still very functional and very stable as it has been running my 4kWh system for about 6 months and protecting the cells perfectly.

The reason for making it a modular design is for easy upgradability and also, considering the current chip shortage, is to replace sections of the board in case there are no parts available. This will prevent the need to redo and re-layout of the entire…

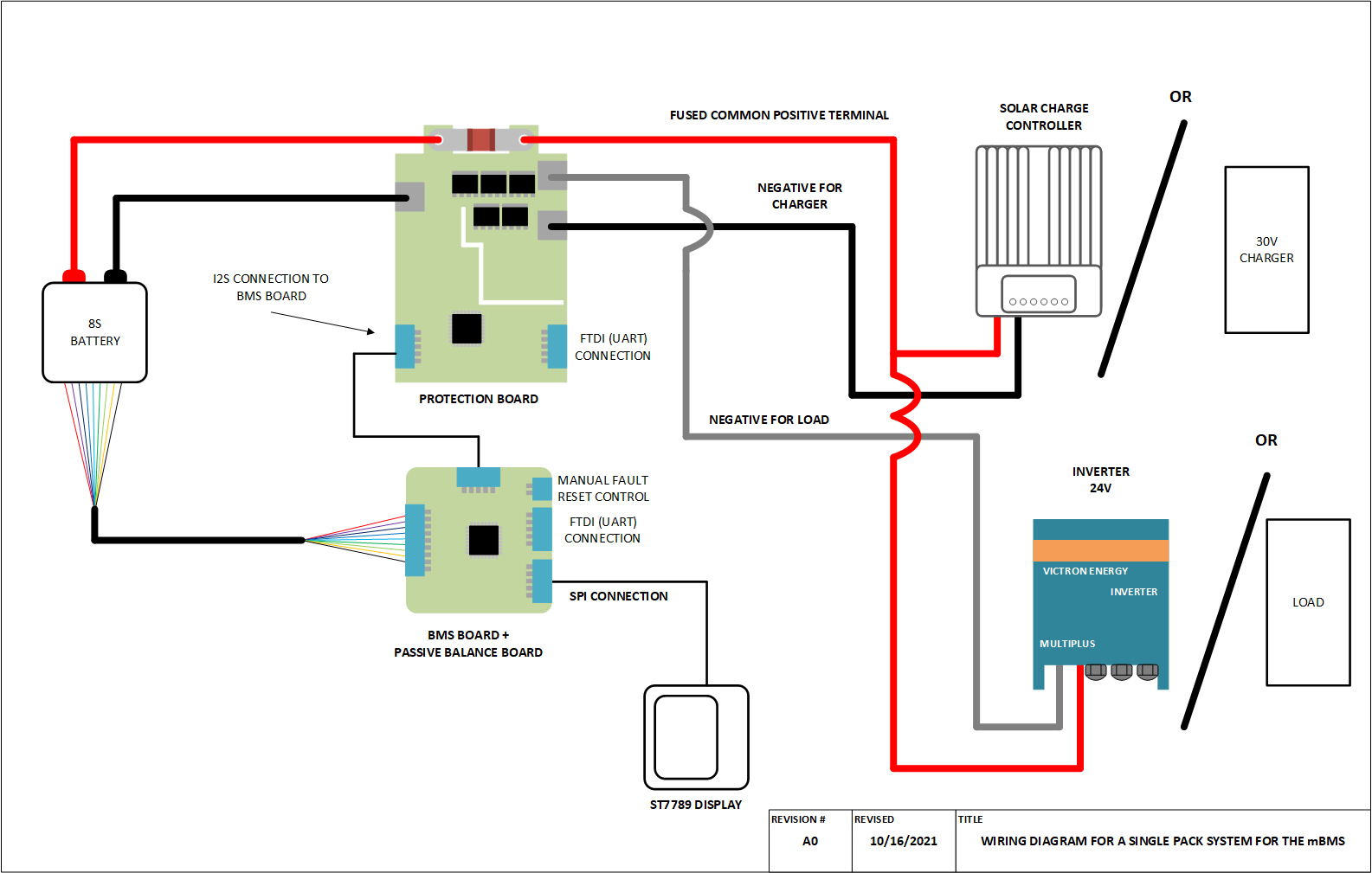

7SBMS - Balance Board, from the project README — From the project README

Main components on the 7SBMS - Balance Board

7SBMS - Balance Board bill of materials (BOM)

97 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	8S_PASSIVE_V2	8S_PASSIVE_V2	U101
8	2N7002-7-F	SOT-23-3	Q201, Q202, Q203, Q204, Q213, Q214, Q215, Q216
8	BSS84LT1G	SOT-23-3	Q205, Q206, Q207, Q208, Q217, Q218, Q219, Q220
8	DMN3135LVT	SOT-23-6	Q209, Q210, Q211, Q212, Q221, Q222, Q223, Q224
31	CPF0603F100KC1	R_0603_Handsolder	R217, R218, R219, R220, R221, R223, R225, R228 +23
9	RMCF0603ZT0R00	R_0603_Handsolder	R227, R301, R302, R303, R304, R309, R310, R311 +1
32	MLFA1FTC10R0	R_MELF_0207	R313, R314, R315, R316, R317, R318, R319, R320 +24

7SBMS - Balance Board design files

The KiCad project lives in the simple-ee/mBMS repository on GitHub; these links point at the commit this page was built from.

LayoutSchematic/The Passive Balance Board/20210213_Projects_PassiveBalanceBoard.kicad_pcb

7SBMS - Balance Board: common questions

How big is the 7SBMS - Balance Board?

The 7SBMS - Balance Board measures 60 × 70 mm and is 1.6 mm thick.

How many components are on the 7SBMS - Balance Board?

97 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the 7SBMS - Balance Board design files?

From the simple-ee/mBMS repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 7SBMS - Balance Board design in my own project?

Yes, under the terms of its MIT license, which simple-ee chose for the repository.
