Compaq portable iii battery

skiselev·compaq-portable-iii-battery·KiCad/Compaq_Portable_III_Battery.kicad_pcb

Compaq portable iii battery PCB layout, top view — open source board by skiselev

About the Compaq portable iii battery PCB

Compaq portable iii battery is an open source PCB design by skiselev, published on GitHub. It is a 2-layer board measuring 38.1 × 30.5 mm, with 5 components from 3 distinct parts.

By type, the board carries 4 connectors and 1 battery holder.

It belongs with the power & battery designs in this gallery.

From the project

Battery Module for Compaq Portable III

Battery module replacement for the Compaq Portable III using a CR2477N coin cell battery

Compaq Portable III Battery Module project on Mouser.com - View and order all components except of the PCB. Compaq Portable III Battery Module on OSH Park - View and order the PCB.

Component type | Reference | Description | Quantity | Possible sources and notes ------------------ | --------- | -------------------------------------- | -------- | -------------------------- PCB | | Compaq Portable III Battery Module PCB | 1 | Order from a PCB manufacturer of your choice using provided Gerber or KiCad files…

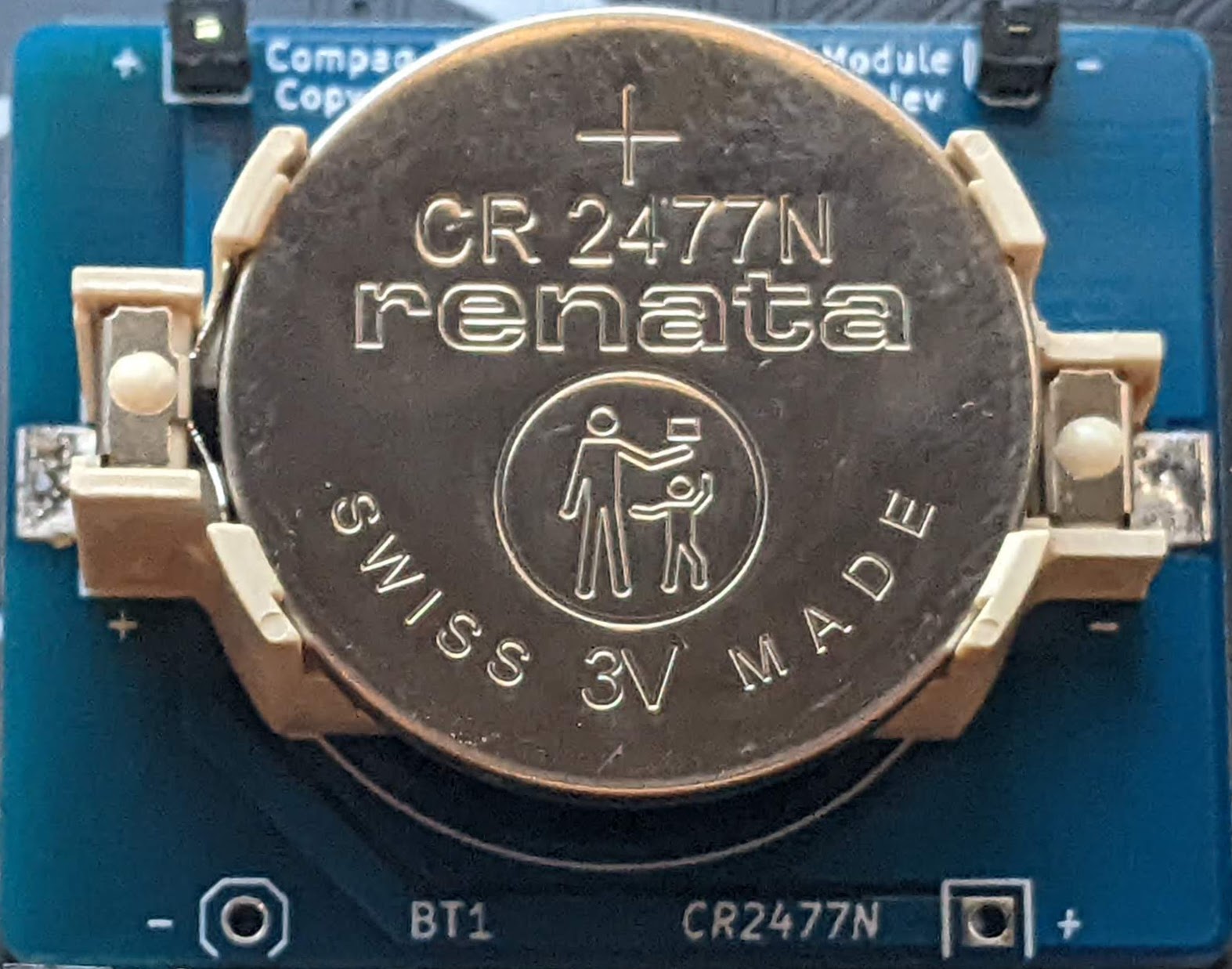

Compaq portable iii battery, from the project README
From the project README

Compaq portable iii battery bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
2
+
J1, J4
2
-
J2, J3
1
CR2477N
BT1

Compaq portable iii battery design files

The KiCad project lives in the skiselev/compaq-portable-iii-battery repository on GitHub; these links point at the commit this page was built from.

Compaq portable iii battery: common questions

How big is the Compaq portable iii battery PCB?

The Compaq portable iii battery measures 38.1 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Compaq portable iii battery?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Compaq portable iii battery design files?

From the skiselev/compaq-portable-iii-battery repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Compaq portable iii battery design in my own project?

The repository has no license, so all rights stay with skiselev. Use it as a reference, and ask the author before reusing the design.
