ISA OPL2 Card

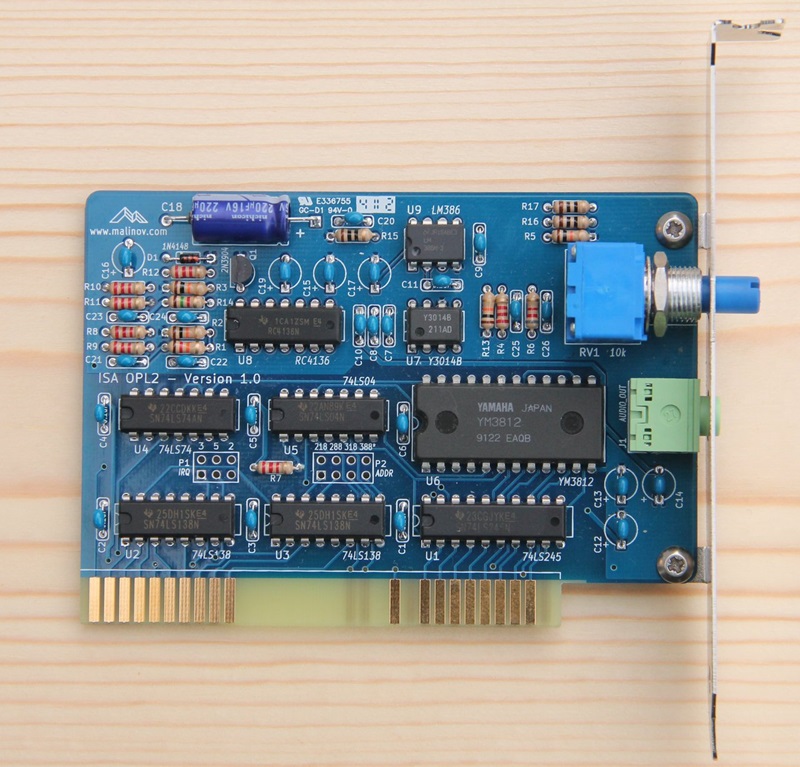

ISA OPL2 Card is a sound card based on Yamaha OPL2 chip, officially known as YM3812. This card is compatible with the AdLib Music Synthesizer Card that was very popular in late 80's - early 90's.
Component Type | Reference | Description | Quantity | Possible Sources and Notes ------------------ | ---------- | ---------------------------------------------------------- | -------- | -------------------------- PCB | | ISA OPL2 Version 1.2 PCB | 1 | Todd Goodman or your favorite PCB manufacturer Integrated Circuit | U1 | 74LS245 | 1 | Mouser 595-SN74LS245N Integrated Circuit | U2, U3 | 74LS138 |…
Main components on the Isa opl2
Isa opl2 bill of materials (BOM)
61 components, 30 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS245 | DIP20_300 | U1 |
| 2 | 74LS138 | DIP16_300 | U2, U3 |
| 1 | 74LS74 | DIP14_300 | U4 |
| 1 | 74LS04 | DIP14_300 | U5 |
| 1 | YM3812 | DIP24_600 | U6 |
| 1 | Y3014B | DIP8_300 | U7 |
| 1 | RC4136 | DIP14_300 | U8 |
| 1 | LM386 | DIP8_300 | U9 |
| 1 | 2N3904 | TO92_EBC_254 | Q1 |
| 1 | AUDIO_OUT | PHONE3_5_STEREO | J1 |
| 1 | IRQ | Pin_Array_3X2 | P1 |
| 1 | ADDR | Pin_Array_4X2 | P2 |
| 1 | BUSPC | BUS_PC | BUS1 |
| 2 | CONN_1 | HOLE_3MM | HOLE1, HOLE2 |
| 1 | 10k | BOURNS91A1 | RV1 |
| 1 | 1N4148 | Diode_762 | D1 |
| 11 | 0.1uF | Cap_Cer_504 | C1, C2, C3, C4, C5, C6, C7, C8 +3 |
| 6 | 10uF | Cap_Tant_504 | C12, C13, C14, C15, C16, C17 |
| 1 | 220uF | Cap_Elec_Axial_254 | C18 |
| 1 | 4.7uF | Cap_Tant_504 | C19 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 47nF | Cap_Cer_504 | C20 |
| 4 | 4.7nF | Cap_Cer_504 | C21, C22, C23, C24 |
| 1 | 1nF | Cap_Cer_504 | C25 |
| 1 | 270pF | Cap_Cer_504 | C26 |
| 1 | 12k | Res_762 | R1 |
| 4 | 10k | Res_762 | R2, R3, R4, R5 |
| 1 | 8.2k | Res_762 | R6 |
| 7 | 2.2k | Res_762 | R7, R8, R9, R10, R11, R12, R13 |
| 1 | 1.5k | Res_762 | R14 |
| 3 | 10 | Res_762 | R15, R16, R17 |
