Quansheng-Charger-USB-Mod PCB layout, top view — open source board by skuep
Simulate this board

About the Quansheng-Charger-USB-Mod PCB

Quansheng-Charger-USB-Mod is an open source PCB design by skuep, published on GitHub. It is a 2-layer board measuring 42.8 × 48 mm, with 37 components from 20 distinct parts.

Other key parts include the IP2326. By type, the board carries 17 resistors, 8 capacitors, 5 test points, 2 inductors, 1 IC and 1 connector.

It belongs with the power & battery designs in this gallery.

From the project

- Upload GERBER-quansheng-usb-charger.zip to JLCPCB. - Choose 1.6mm PCB thickness, LeadFree HASL - Enable "PCB Assembly" with "Economic" type. Select "Tooling Holes Added by Customer" - Press NEXT button - Upload BOM-quansheng-usb-charger.csv and CPL-quansheng-usb-charger.csv fil

- Upload GERBER-quansheng-usb-charger.zip to JLCPCB. - Choose 1.6mm PCB thickness, LeadFree HASL - Enable "PCB Assembly" with "Economic" type. Select "Tooling Holes Added by Customer" - Press NEXT button - Upload BOM-quansheng-usb-charger.csv and CPL-quansheng-usb-charger.csv files. - Press Continue for the Error message of some missing parts (It's okay). - Make sure all parts are selected for placement and Press Next - Check Placement and Press Next - Select Production Description (e.g. Smart Products and Accessories -> Charger) - Save To Cart

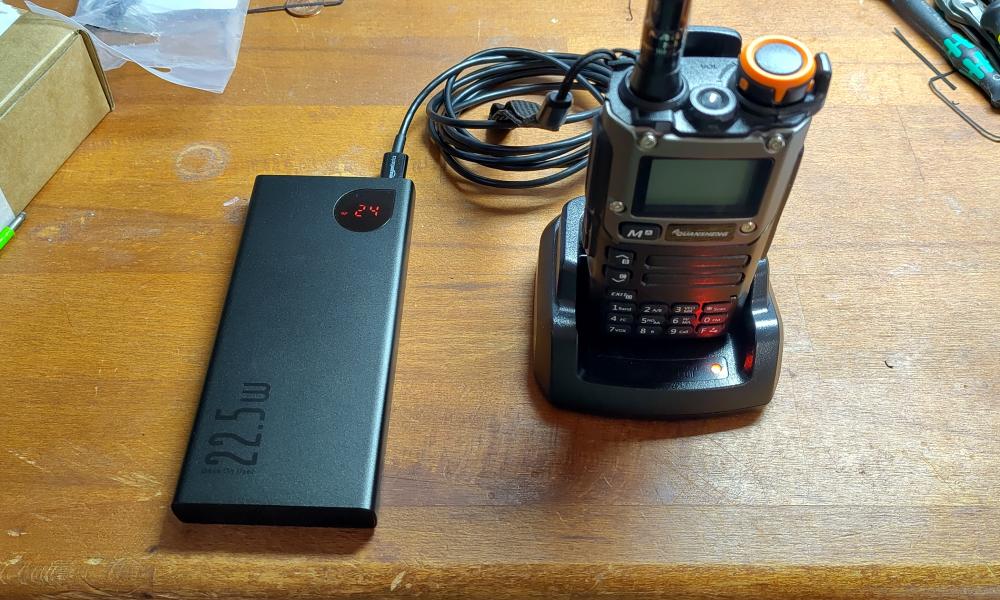

Quansheng-Charger-USB-Mod, from the project README
From the project README

Main components on the Quansheng-Charger-USB-Mod

IP2326

Quansheng-Charger-USB-Mod bill of materials (BOM)

37 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
IP2326
U1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
2
ToolingHole
H1, H2
1
ISET
JP1
1
BAT+
TP1
1
BAT-
TP2
1
LEDG
TP3
1
LEDCOM
TP4
1
LEDR
TP5
1
BLM18KG121TN1D
FB1
1
FXL0530-2R2-M
L1
2
100N/25V
100n/25V
C1, C4
4
10U/25V
10u/25V
C2, C3, C7, C8
2
22U/25V
22u/25V
C5, C6
3
5.1K
R1, R2, R3
5
NC
R4, R9, R10, R15, R16
2
1K
R5, R7
3
C22936
1R
R6, R13, R14
3
120K
R8, R12, R17
1
51K
R11

Quansheng-Charger-USB-Mod design files

The KiCad project lives in the skuep/Quansheng-Charger-USB-Mod repository on GitHub; these links point at the commit this page was built from.

Quansheng-Charger-USB-Mod: common questions

How big is the Quansheng-Charger-USB-Mod PCB?

The Quansheng-Charger-USB-Mod measures 42.8 × 48 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Quansheng-Charger-USB-Mod?

37 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Quansheng-Charger-USB-Mod design files?

From the skuep/Quansheng-Charger-USB-Mod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Quansheng-Charger-USB-Mod design in my own project?

The repository has no license, so all rights stay with skuep. Use it as a reference, and ask the author before reusing the design.
