About the T61 PiPico Scanner PCB

T61 PiPico Scanner is an open source RP2040/RP2350 PCB design by sly547, published on GitHub. It is a 2-layer board measuring 60 × 45 mm, with 20 components from 12 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the APX810S-44SR-7. By type, the board carries 6 connectors, 4 resistors, 3 transistors, 2 ICs and 1 capacitor.

It belongs with the keyboards, iot & wireless and power & battery designs in this gallery.

From the project

Keyboard scanner for a Thinkpad T61 keyboard, using the original connector, salvaged from a retired T61, and a Raspberry Pi Pico H. Components on the BOM:

Keyboard scanner for a Thinkpad T61 keyboard, using the original connector, salvaged from a retired T61, and a Raspberry Pi Pico H. Components on the BOM:

1x Molex 54363-0489 (WM6787CT-ND on Digikey) 1x Raspberry Pi Pico (with or without headers) 1x capacitor SMD 0603 2.2 uF 1x capacitor SMD 0603 100 nF 1x p-MOSFET TSM2305CX or similar (optional, for external 5V, e.g. a battery) 2x n-MOSFET 2N7002 or similar 4x resistor SMD 0603 10 kOhm 1x resistor SMD 0603 22 kOhm

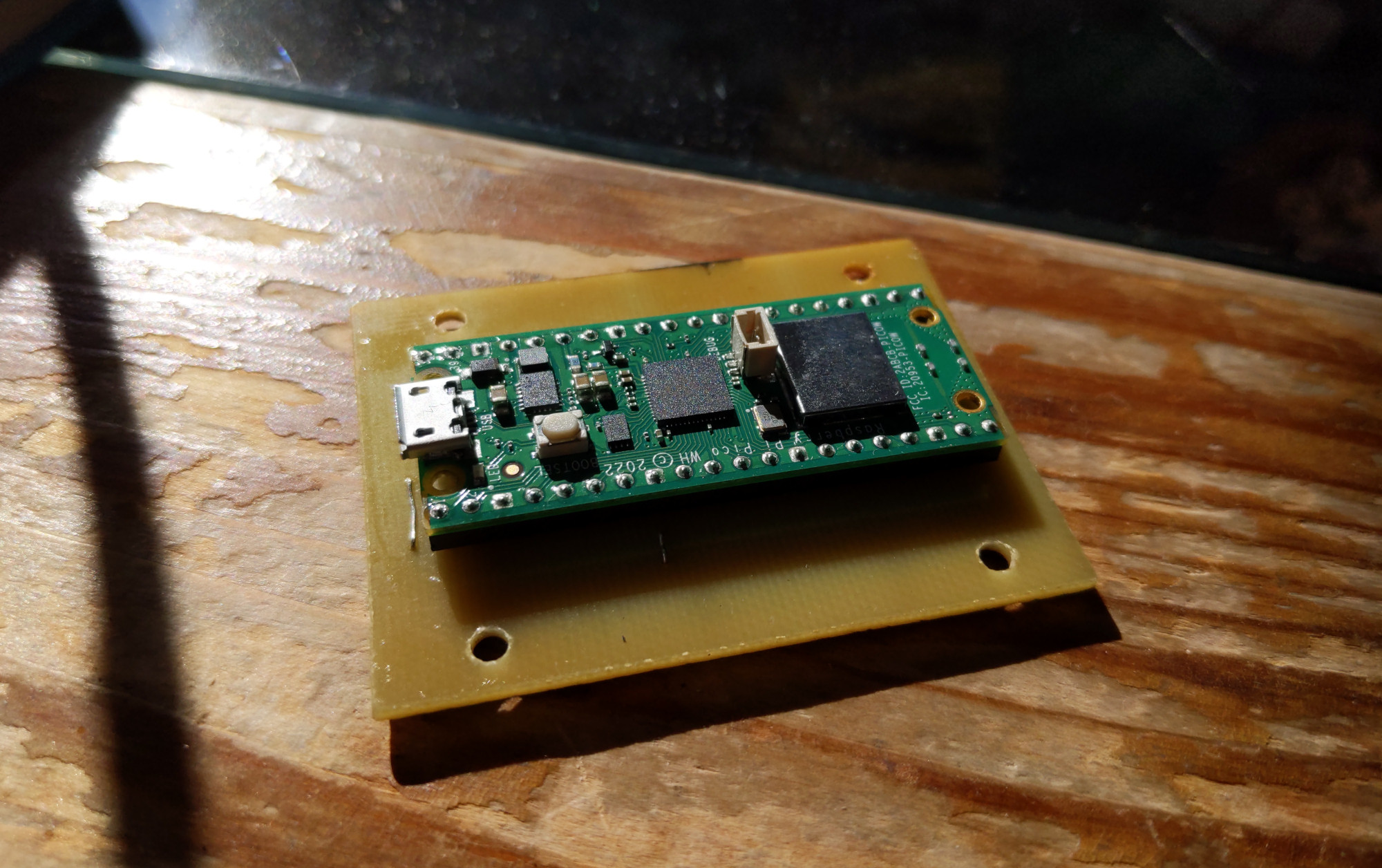

T61 PiPico Scanner, from the project README
From the project README

Main components on the T61 PiPico Scanner

PicoAPX810S-44SR-7

T61 PiPico Scanner bill of materials (BOM)

20 components, 12 distinct parts.

QtyPartRefs
1
Pico
U101
1
APX810S-44SR-7
U102
2
2N7002
Q101, Q102
1
DMG2305UX
Q103
2
GND
J101, J105
1
VBUS
J102
1
EXT5V
J103
1
PWRSWITCH
J106
1
54363-0489
J107
4
—
@HOLE0, @HOLE1, @HOLE2, @HOLE3
1
100n
C102
4
10k
R104, R105, R106, R107

T61 PiPico Scanner design files

The KiCad project lives in the sly547/T61_PiPico_Scanner repository on GitHub; these links point at the commit this page was built from.

T61 PiPico Scanner: common questions

What microcontroller does the T61 PiPico Scanner use?

The T61 PiPico Scanner is built around the Pico, from the RP2040/RP2350 family.

How big is the T61 PiPico Scanner PCB?

The T61 PiPico Scanner measures 60 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the T61 PiPico Scanner?

20 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the T61 PiPico Scanner design files?

From the sly547/T61_PiPico_Scanner repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the T61 PiPico Scanner design in my own project?

The repository has no license, so all rights stay with sly547. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the T61 PiPico Scanner without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
