V0d-2048-32
About the V0d-2048-32 PCB
V0d-2048-32 is an open source PCB design by smaldragon, published on GitHub under the Unlicense license. It is a 2-layer board measuring 90 × 56.8 mm, with 24 components from 13 distinct parts.
Other key parts include the AM29F160, 74HC139, 74HC273, 74HC4520 and 74HC670. By type, the board carries 10 capacitors, 9 ICs, 3 resistors and 1 diode.
From the project
A famicom discrete logic mapper

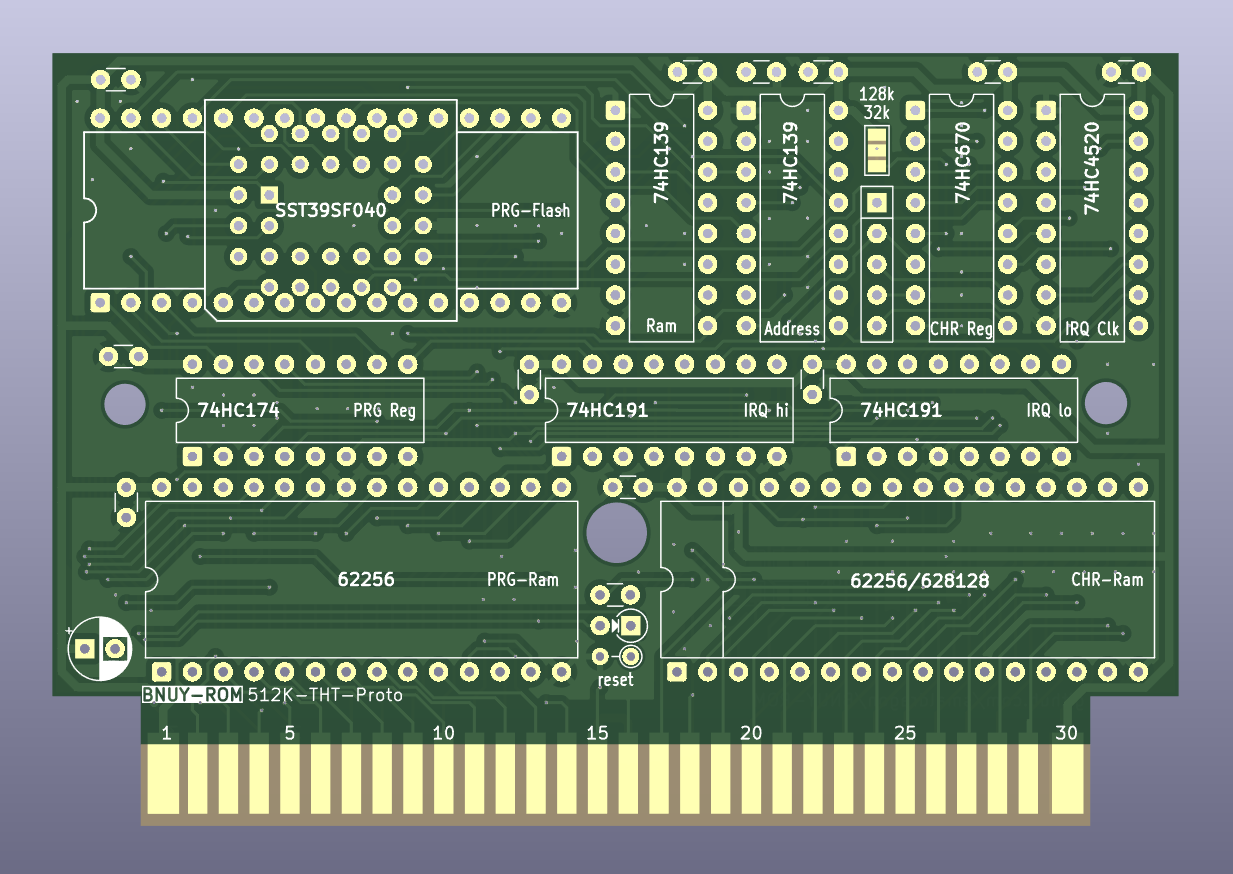

BNUY-ROM is an homebrew discrete logic mapper for the famicom/nes, which aims to have a similar level of capabilities to common ASIC mappers, while keeping a relatively low chip count. The mapper is designed to be modular, with features that can be included or ommitted depending on the needs of a game. It is similar to BNROM, hence the name.
Rewritable PRG-FLASH, 32K Window: 39SF0x0 - Up to 512 KiB 29FxxxFT - Up to 2048KiB 32KiB PRG-RAM, 8K Window 8KiB, 32KiB or 128KiB of CHR-RAM, 42K Windows Fixed 4-Screen Nametable Arrangement Scanline IRQ, with MMC5-like timing
Main components on the V0d-2048-32
V0d-2048-32 bill of materials (BOM)
24 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AM29F160 | TSOP-I-48_18.4x12mm_P0.5mm | U1 |
| 2 | 74HC139 | SOIC-16_3.9x9.9mm_P1.27mm | U2, U5 |
| 1 | 74HC273 | SOIC-20W_7.5x12.8mm_P1.27mm | U3 |
| 1 | 74HC4520 | SOIC-16_3.9x9.9mm_P1.27mm | U4 |
| 1 | 74HC670 | SOIC-16_3.9x9.9mm_P1.27mm | U7 |
| 2 | IS62C256AL | TSOP-I-28_11.8x8mm_P0.55mm_MiddlePin | U9, U10 |
| 1 | 74HC40103 | SOIC-16_3.9x9.9mm_P1.27mm | U13 |
| 1 | Famicom_Cartridge_Edge | Famicom Cartridge Edge Connector (long legs) | H1 |
| 1 | 1N4148 | D_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 1nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 9 | C_Small | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C4, C5, C6, C7, C8, C9, C10 +1 |
| 1 | 4.7K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1 |
| 2 | R_Pack04 | R_Array_Convex_4x0603 | RN1, RN2 |
