About the UniversalboxArm PCB
UniversalboxArm is an open source STM32 PCB design by Solartraveler, published on GitHub. It is a 4-layer board measuring 112 × 57 mm, with 153 components from 66 distinct parts.
Its main chip is the STM32L452RETx, from the STM32 family. Other key parts include the USBLC6-2SC6, LP38693MP-3.3, ATtiny861A-SU, REF3020 and MCP6542. By type, the board carries 45 resistors, 33 capacitors, 25 diodes, 16 transistors, 11 connectors and 10 ICs.
It belongs with the displays & leds designs in this gallery.
From the project
PCB for experimenting with a STM32

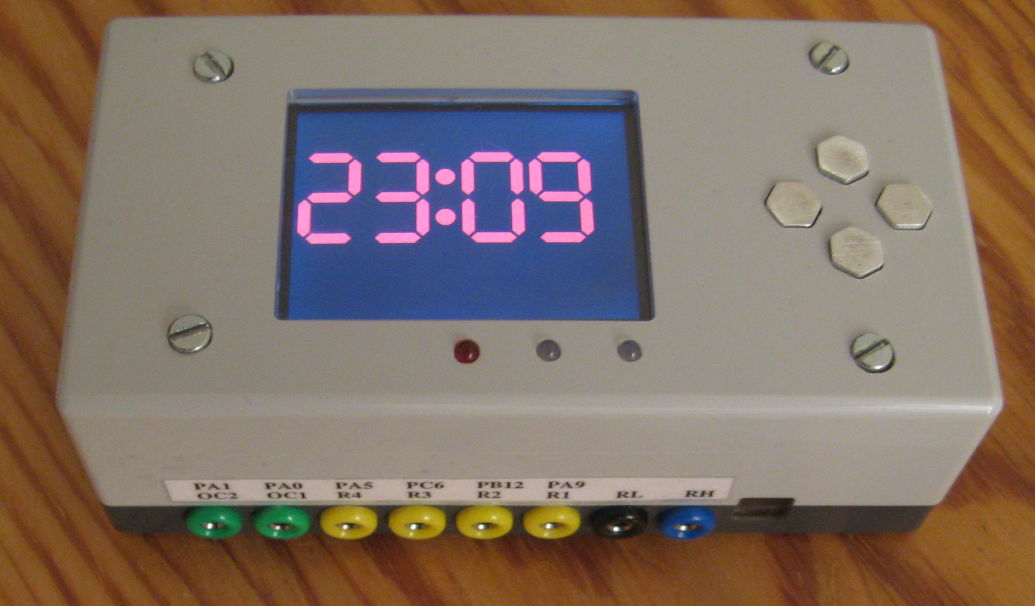

Have a box for experiments and easy testing with a CPU which is more powerful than an AVR (Arduino) and uses less energy than a Raspberry Pi. Then add some common peripherals and fit this into a case.
The following hardware has been added. Not everything is required to be populated on the PCB.
- STM32L452RET (80MHz, 160KiB RAM) tested
- Can run from a LiFePO battery and charge it

Main components on the UniversalboxArm
UniversalboxArm bill of materials (BOM)
153 components, 66 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | LP38693MP-3.3 | SOT-223-5 | U2 |
| 1 | ATtiny861A-SU | SOIC-20W_7.5x12.8mm_P1.27mm | U20 |
| 1 | REF3020 | SOT-23 | U21 |
| 1 | MCP6542 | SOIC-8_3.9x4.9mm_P1.27mm | U22 |
| 1 | AT45DB641-S | SO-8_5.3x6.2mm_P1.27mm | U50 |
| 1 | STM32L452RETx | LQFP-64_10x10mm_P0.5mm_Handsoldering | U60 |
| 1 | MCP65R41T-1202E | SOT-23-6_Handsoldering | U61 |
| 1 | MAX3221 | SSOP-16_5.3x6.2mm_P0.65mm_Handsolder | U110 |
| 1 | TSOP312xx | Vishay_CAST-3Pin | U130 |
| 1 | BCX56-16 | SOT-89-3 | Q20 |
| 8 | BSS138 | SOT-23 | Q21, Q22, Q25, Q60, Q90, Q91, Q92, Q93 |
| 5 | IRLML6402 | SOT-23 | Q23, Q24, Q50, Q51, Q120 |
| 2 | IRLML6344 | SOT-23 | Q61, Q62 |
| 1 | 32768Hz | Crystal_HC49-U_Vertical | Y60 |
| 1 | 8MHz | Crystal_MP03 | Y61 |
| 1 | USB_B_Micro | USB_Micro-B_Amtek-MIUSB-F5M-BBX-U_Handsolder | J1 |
| 1 | AVR-ISP-6 | PinHeader_2x03_P2.54mm_Vertical | J20 |
| 1 | Conn_01x14_Female | LCD_320x240_2.4 | J50 |
| 1 | Conn_01x06_Female | PinHeader_1x06_P2.54mm_Vertical | J60 |
Show 46 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Vertical | J61 |
| 2 | Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J62, J91 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J90 |
| 1 | Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J110 |
| 1 | Conn_02x04_Counter_Clockwise | PinSocket_ESP-01 | J120 |
| 1 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J121 |
| 1 | Battery_Cell LiFePo | Keystone_Holder_1xAA_1015 | BT20 |
| 1 | 0.50A | SFM_OMNI-BLOK_Handsolder | F20 |
| 4 | IM01 | Relay_DPDT_Omron_G6K-2F-Y | K90, K91, K92, K93 |
| 4 | SW_SPST | SW_PUSH_6mm_H13mm | SW60, SW61, SW62, SW63 |
| 1 | KTY81-221 | TO-92-2 | TH20 |
| 3 | SK14 | D_SMA | D1, D2, D3 |
| 5 | BAT54C | SOT-23 | D20, D21, D62, D63, D64 |
| 1 | TL431DBZ | SOT-23 | D22 |
| 6 | BAS32L | D_MiniMELF | D23, D24, D90, D91, D92, D93 |
| 1 | LED | LED_D3.0mm | D25 |
| 2 | LED_Dual_AAC | LED_D3.0mm-3 | D60, D61 |
| 6 | PESD5V2S2UT | SOT-23 | D65, D66, D67, D69, D70, D71 |
| 1 | PESD24V2S2UT | SOT-23 | D68 |
| 4 | 10µF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C20, C23 |
| 2 | 100µF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C3, C4 |
| 17 | 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C21, C22, C26, C50, C51, C60, C61, C62 +9 |
| 1 | 10nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C24 |
| 1 | 470nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C25 |
| 3 | 4.7µF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C66, C71, C130 |
| 2 | 10pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C67, C68 |
| 2 | 22pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C69, C70 |
| 1 | 4.7µF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C120 |
| 2 | 100kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R40 |
| 1 | 3.9Ω | R_MELF_MMB-0207 | R20 |
| 2 | 33kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R21, R23 |
| 2 | 15kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R22, R24 |
| 1 | 9100Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R25 |
| 2 | 22kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R26, R39 |
| 2 | 47kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R28, R29 |
| 10 | 220kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R30, R51, R60, R61, R67, R69, R90, R91 +2 |
| 2 | 100Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R31, R36 |
| 1 | 10kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R32 |
| 1 | 4.7kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R33 |
| 1 | 470Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R34 |
| 3 | 330Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R35, R63, R65 |
| 1 | 150Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R37 |
| 1 | 12kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R38 |
| 1 | 1kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R41 |
| 2 | 56kΩ | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R50, R120 |
| 10 | 180Ω | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R52, R53, R62, R64, R66, R68, R70, R71 +2 |
UniversalboxArm design files
The KiCad project lives in the Solartraveler/UniversalboxArm repository on GitHub; these links point at the commit this page was built from.
UniversalboxArm: common questions
What microcontroller does the UniversalboxArm use?
The UniversalboxArm is built around the STM32L452RETx, from the STM32 family.
How big is the UniversalboxArm PCB?
The UniversalboxArm measures 112 × 57 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the UniversalboxArm?
153 components, from 66 distinct parts. The full bill of materials is listed on this page.
Where can I download the UniversalboxArm design files?
From the Solartraveler/UniversalboxArm repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the UniversalboxArm design in my own project?
The repository has no license, so all rights stay with Solartraveler. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the UniversalboxArm without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
