DECA RETRO CAPE 2

somhi·DECA_retro_cape_2

DECA RETRO CAPE 2 PCB layout, top view — open source board by somhi
Simulate this board

About the DECA RETRO CAPE 2 PCB

DECA RETRO CAPE 2 is an open source PCB design by somhi, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 43 components from 11 distinct parts.

Other key parts include the TXS0108EPWR and AMS1117-2.5. By type, the board carries 33 resistors, 4 diodes, 4 capacitors and 2 ICs.

It belongs with the retro computing designs in this gallery.

From the project

Retro cape (addon) for DECA FPGA

DECA Retro Cape 2 is an addon for the DECA FPGA development kit from Arrow/Terasic. The addon is connected to the Beaglebone Black connectors and hence the name of Cape as addons in the Beaglebone world are known.

This cape adds IO interface to the DECA board with all is needed to implement retro computers in this beautiful FPGA. Main IO interfaces are DB15 for VGA, PS2 for keyboard and mouse, DB9 for joystick, MiSTer memory connector, MiSTer user port.

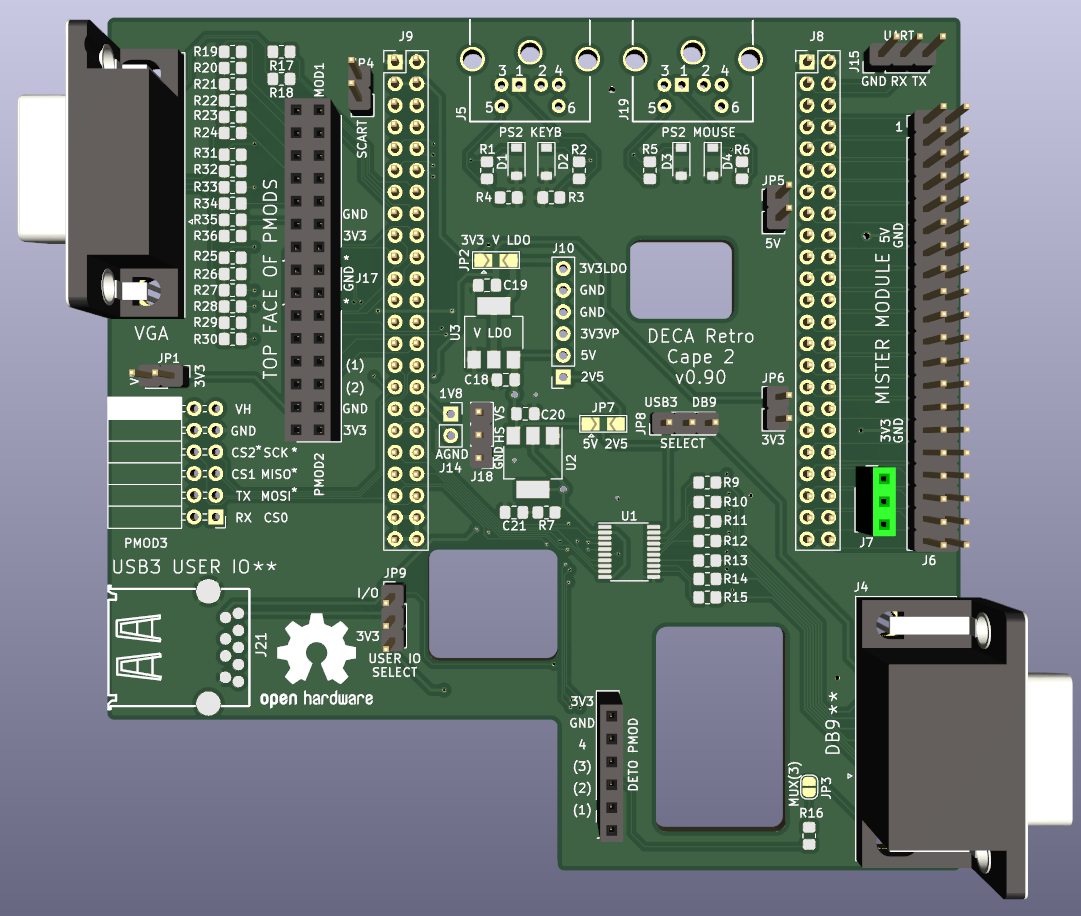

DECA RETRO CAPE 2, from the project README
From the project README

Main components on the DECA RETRO CAPE 2

TXS0108EPWRAMS1117-2.5

DECA RETRO CAPE 2 bill of materials (BOM)

43 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TXS0108EPWR
U1
1
AMS1117-2.5
U2
4
BZT52C3V9
D1, D2, D3, D4
1
1UF
1uF
C18
2
10UF
10uF
C19, C20
1
22UF
22uF
C21
12
510
R1, R2, R5, R6, R9, R10, R11, R12 +4
1
1
R7
2
180
R17, R18
9
2k
R19, R20, R21, R25, R26, R27, R31, R32 +1
9
1k
R22, R23, R24, R28, R29, R30, R34, R35 +1

DECA RETRO CAPE 2 design files

The KiCad project lives in the somhi/DECA_retro_cape_2 repository on GitHub; these links point at the commit this page was built from.

DECA RETRO CAPE 2: common questions

How big is the DECA RETRO CAPE 2 PCB?

The DECA RETRO CAPE 2 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DECA RETRO CAPE 2?

43 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DECA RETRO CAPE 2 design files?

From the somhi/DECA_retro_cape_2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the DECA RETRO CAPE 2 design in my own project?

The repository has no license, so all rights stay with somhi. Use it as a reference, and ask the author before reusing the design.
