About the Nrf52832-smart ring kicad PCB

Nrf52832-smart ring kicad is an open source Nordic nRF PCB design by SpeedUp-Tech, published on GitHub. It is a board, with 25 components from 15 distinct parts.

Its main chip is the NRF52832-QFAA-R, from the Nordic nRF family.

It belongs with the iot & wireless, sensors and power & battery designs in this gallery.

From the project

Editable four-sheet KiCad schematic for a compact nRF52832 smart ring with optical PPG sensing, motion sensing, battery charging, and a low-noise 1.8 V rail, generated with SpeedUp for engineering review.

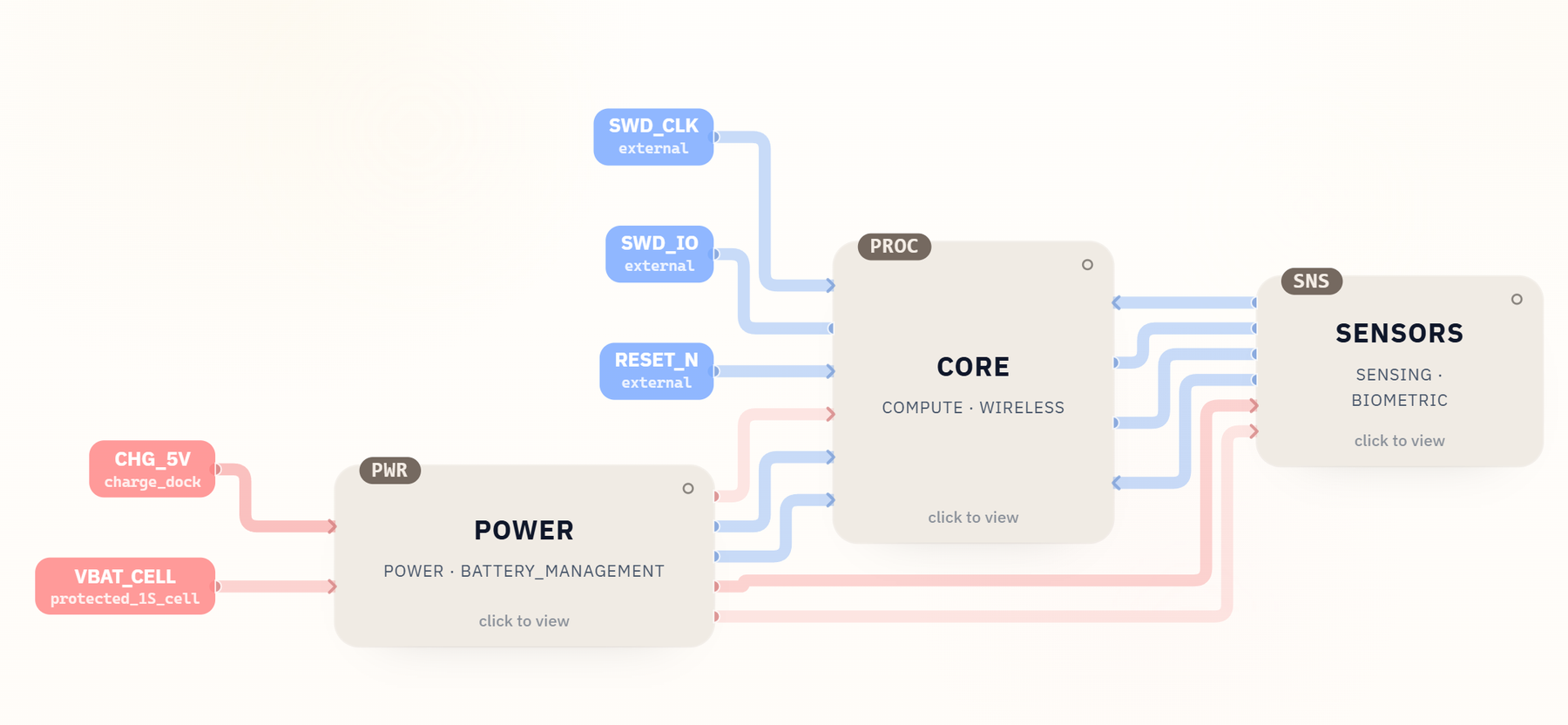

Generated with SpeedUp from a product requirement, this repository contains an editable KiCad 10 schematic for a compact smart ring built around the nRF52832 and prepared for engineering review. Battery charging and regulation, BLE compute and RF, and optical and motion sensing are separated into three hierarchical sheets.

Download v0.1.2 · Open the live demo · Read the project case study

Nrf52832-smart ring kicad bill of materials (BOM)

25 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
KH-1608-H08
COR_A1
3
100n
COR_C1, COR_C2, COR_C3
1
4.7u
COR_C4
1
1u
COR_C5
2
15p
COR_C6, COR_C7
1
0.8p
COR_C8
1
100p
COR_C9
1
10n
COR_C10
1
3.9n
COR_L1
2
10k
COR_R1, COR_R2
3
100k
COR_R3, COR_R4, COR_R5
1
33
COR_R6
5
1625854-3
COR_TP1, COR_TP2, COR_TP3, COR_TP4, COR_TP5
1
NRF52832-QFAA-R
COR_U1
1
X201632MMB4SI
COR_Y1

Nrf52832-smart ring kicad design files

The KiCad project lives in the SpeedUp-Tech/nrf52832-smart-ring-kicad-schematic repository on GitHub; these links point at the commit this page was built from.

Nrf52832-smart ring kicad: common questions

What microcontroller does the Nrf52832-smart ring kicad use?

The Nrf52832-smart ring kicad is built around the NRF52832-QFAA-R, from the Nordic nRF family.

How many components are on the Nrf52832-smart ring kicad?

25 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nrf52832-smart ring kicad design files?

From the SpeedUp-Tech/nrf52832-smart-ring-kicad-schematic repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Nrf52832-smart ring kicad design in my own project?

The repository has no license, so all rights stay with SpeedUp-Tech. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Nrf52832-smart ring kicad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
