Benjolin Gorga

squaresolid·benjolin_gorga·Benjolin Gorga/Benjolin Gorga.kicad_pcb

Benjolin Gorga PCB layout, top view — open source board by squaresolid

About the Benjolin Gorga PCB

Benjolin Gorga is an open source PCB design by squaresolid, published on GitHub. It is a 2-layer board measuring 77.5 × 100 mm, with 137 components from 34 distinct parts.

Other key parts include the 4021D, TL074D, SSM2164S, TL072D and LM78L09. By type, the board carries 66 resistors, 34 capacitors, 13 diodes, 12 connectors, 9 ICs and 1 transistor.

It belongs with the audio designs in this gallery.

From the project

A eurorack version 1.6 of Rob Hordijk's Benjolin with 100mm x 78mm which significantly reduce the cost of printing PCB. The panel still on eurorack standard size though, so no cost reduction there. The panel design is enhanced with Batak's Gorga (Indonesian tribe from Sumatra) drawings. All Kicad file is provided.

As I was taking care of my wife at the hospital, I decided to redesign Forestcaver's Benjolin https://github.com/forestcaver/Benjolin As I was finishing this, Rob Hordijk passed away and I would like to dedicate this to him. The board come with several changes, which is: - 1206 components instead of 0603 which allows a much friendlier hand soldering - DIP package for SSM2164 as in Indonesia it's pretty hard to find SMD components - Gorga Graphics for Panel (Panel size is still as eurorack standard so no efficient cost production can be made) - 100mm x 78mm circuit board redesign which allows…

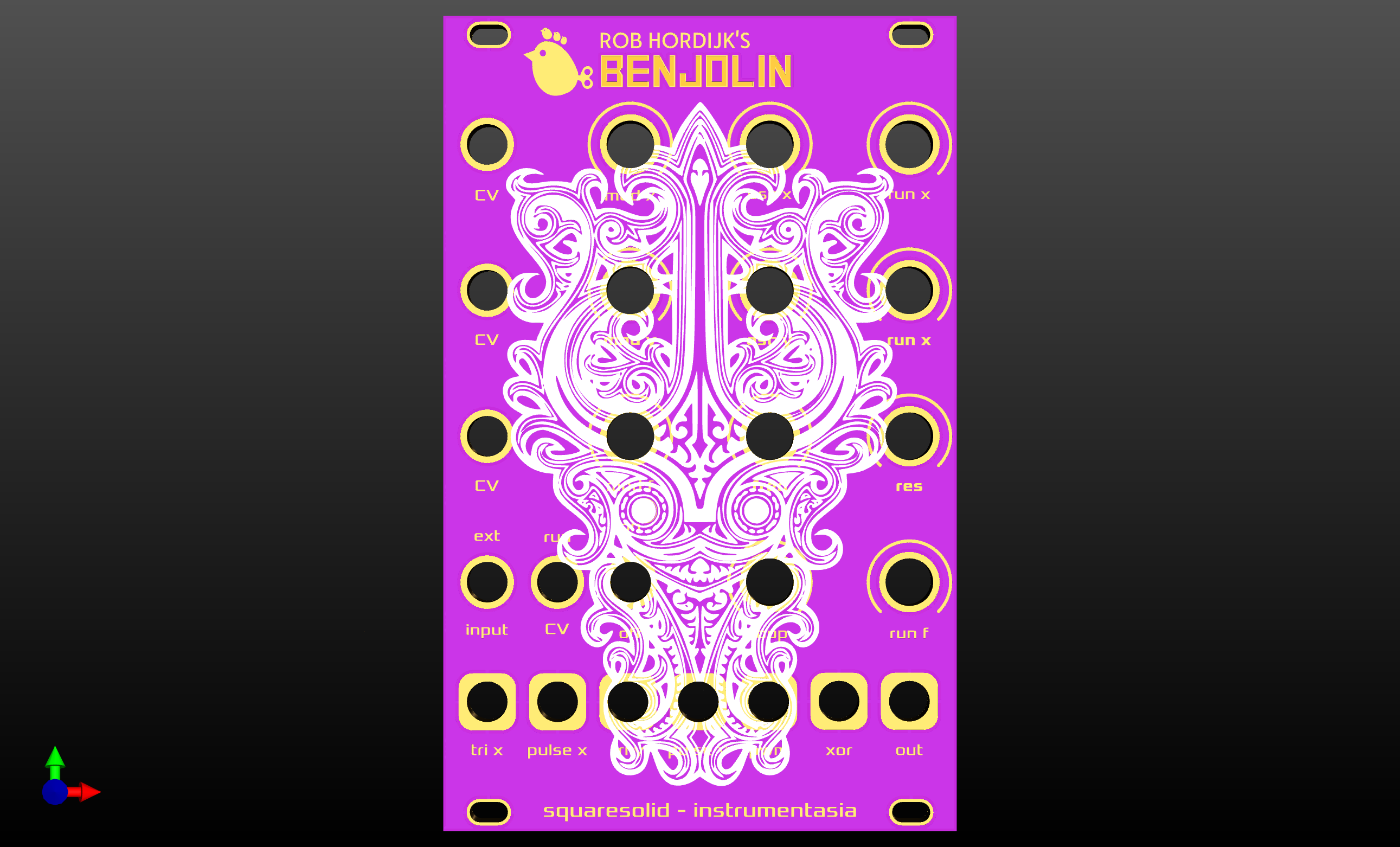

Benjolin Gorga, from the project README
From the project README

Main components on the Benjolin Gorga

4021DTL074DSSM2164STL072DLM78L09LM79L09

Benjolin Gorga bill of materials (BOM)

137 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
4021D
IC1
3
TL074D
IC2, IC5, IC6
1
SSM2164S
IC3
2
TL072D
IC4, IC9
1
LM78L09
lm78l09
IC7
1
LM79L09
lm79l09
IC8
1
2N3904
2n3904
Q1
12
PJ301_THONKICONN6
J1, J2, J3, J4, J5, J6, J7, J8 +4
1
M05X2PTH
JP1
1
SUBMINI-2T
submini-2T
SW1
6
1N4148W-7
D1, D2, D3, D4, D5, D6
4
1N4004
1n4004
D7, D8, D9, D10
3
1N5819HW
D11, D100, D200
4
560P
560p
C1, C2, C6, C9
2
1n
C3, C4
19
100N
100n
C5, C11, C12, C13, C14, C17, C18, C19 +11
3
220P
220p
C7, C8, C10
2
10U
10u
C15, C16
2
18P
18p
C29, C32
2
4.7U
4.7u
C100, C200
Show 14 more
QtyPartRefs
9
51K
51k
R1, R2, R4, R6, R30, R35, R41, R42 +1
15
30K
30k
R3, R5, R15, R16, R19, R20, R23, R24 +7
5
10K
10k
R7, R8, R29, R38, R46
4
510
R9, R10, R37, R49
9
100K
100k
R11, R12, R17, R31, R44, R45, R63, R64 +1
6
15K
15k
R13, R14, R22, R26, R27, R39
1
47k (was 62k)
R18
1
62K
62k
R21
1
150K
150k
R36
1
1.5K
1.5k
R40
1
470K
470k
R50
11
10K
10k
R51, R52, R53, R54, R55, R56, R57, R58 +3
1
1.0K
1.0k
R62
1
20K
20k
R66

Benjolin Gorga design files

The KiCad project lives in the squaresolid/benjolin_gorga repository on GitHub; these links point at the commit this page was built from.

Benjolin Gorga: common questions

How big is the Benjolin Gorga PCB?

The Benjolin Gorga measures 77.5 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Benjolin Gorga?

137 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Benjolin Gorga design files?

From the squaresolid/benjolin_gorga repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Benjolin Gorga design in my own project?

The repository has no license, so all rights stay with squaresolid. Use it as a reference, and ask the author before reusing the design.
