About the Navidat PCB

Navidat is an open source AVR/Arduino PCB design by str-dst, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 56.2 × 99.5 mm, with 32 components from 14 distinct parts.

Its main chip is the ATMEGA32U2-AU, from the AVR/Arduino family. Other key parts include the SRV05-4. By type, the board carries 10 LEDs, 6 capacitors, 6 resistors, 5 diodes, 2 ICs and 1 crystal.

From the project

full navigation keypad

- Powered by an Atmega32u2 - Basic ESD and overvoltage protection - Centered USB type-C port for a detachable cable - Fully programmable using QMK and Vial

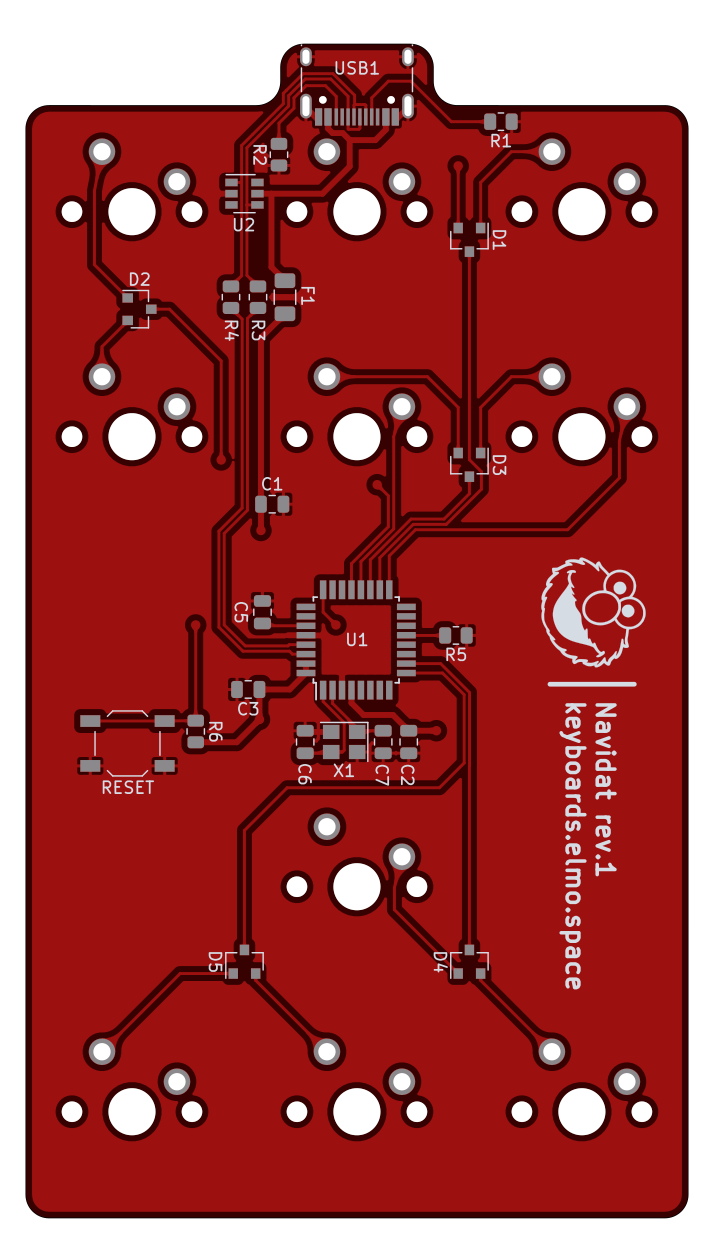

Navidat, from the project README
From the project README

Main components on the Navidat

ATMEGA32U2-AUSRV05-4

Navidat bill of materials (BOM)

32 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U2-AU
ATmega32U2-AU
U1
1
SRV05-4
U2
1
CRYSTAL_GND24_SMALL
Crystal_GND24_Small
X1
1
C69688
Polyfuse_Small
F1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
USB1
10
MX-NoLED
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +2
5
C68978
D_AAK_Small
D1, D2, D3, D4, D5
1
10UF
10uF
C1
2
0.1UF
0.1uF
C2, C3
1
1UF
1uF
C5
2
22PF
22pF
C6, C7
2
5.1K
5.1k
R1, R2
2
22
R3, R4
2
10K
10k
R5, R6

Navidat design files

The KiCad project lives in the str-dst/Navidat repository on GitHub; these links point at the commit this page was built from.

Navidat: common questions

What microcontroller does the Navidat use?

The Navidat is built around the ATMEGA32U2-AU, from the AVR/Arduino family.

How big is the Navidat PCB?

The Navidat measures 56.2 × 99.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Navidat?

32 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Navidat design files?

From the str-dst/Navidat repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Navidat design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Navidat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
