Arduino-UNO-Clone PCB layout, top view — open source AVR/Arduino board by swapnil-maurya

About the Arduino-UNO-Clone PCB

Arduino-UNO-Clone is an open source AVR/Arduino PCB design by swapnil-maurya, published on GitHub. It is a 2-layer board measuring 68.6 × 53.4 mm, with 51 components from 34 distinct parts.

Its main chip is the ATMEGA328-M, from the AVR/Arduino family. Other key parts include the CH340G, AMS1117-3.3, NCP1117-5.0_SOT223 and LM358ADR. By type, the board carries 14 capacitors, 10 connectors, 10 resistors, 5 ICs, 5 diodes and 2 crystals.

From the project

Arduino UNO Clone PCB Design using KiCad

Custom Arduino UNO compatible PCB designed using KiCad EDA.

This project contains the complete design of an Arduino UNO Clone PCB. The PCB was designed using KiCad, including schematic, PCB layout, 3D visualization, Gerber manufacturing files, BOM and mechanical DXF.

- KiCad 10.0 - KiCad Schematic Editor - KiCad PCB Editor - KiCad 3D Viewer - Microsoft Excel

- Arduino UNO compatible PCB - ATmega328P microcontroller - USB interface - DC power input - Digital I/O headers - Analog input headers - Power headers - ICSP header - Reset button - Status LEDs - 16 MHz crystal oscillator - SMD…

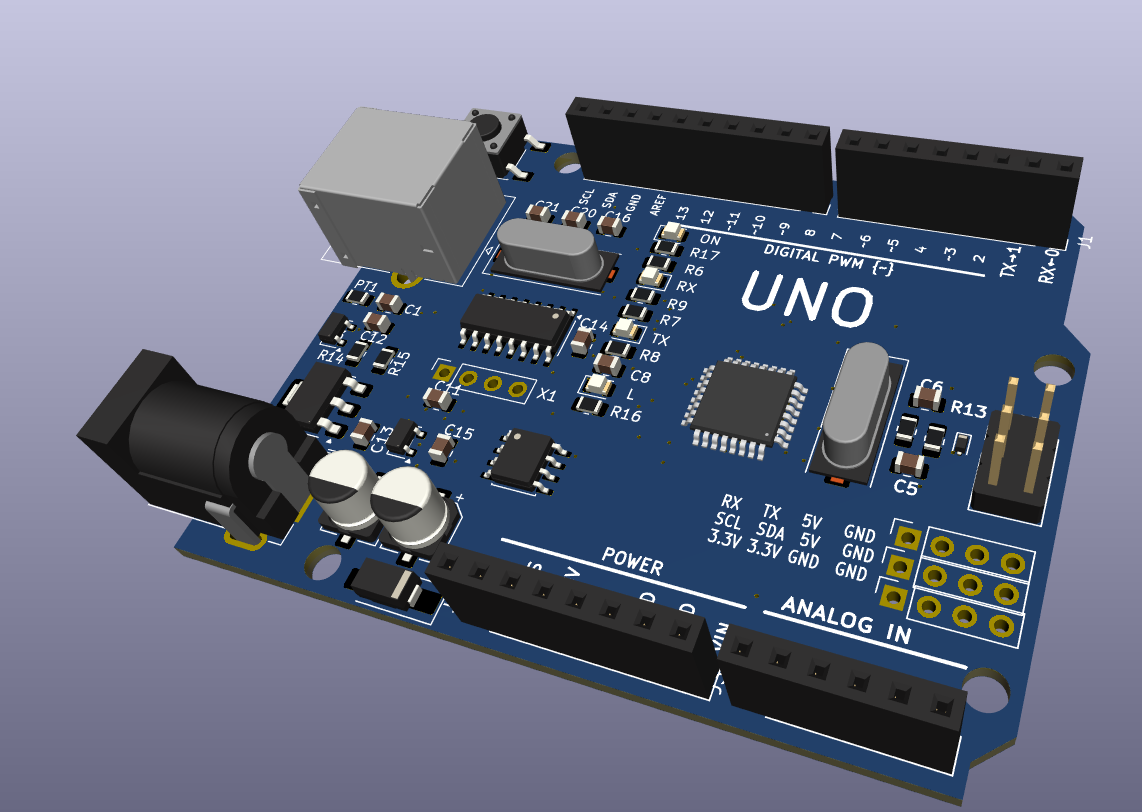

Arduino-UNO-Clone, from the project README
From the project README

Main components on the Arduino-UNO-Clone

ATMEGA328-MCH340GAMS1117-3.3NCP1117-5.0_SOT223LM358ADR

Arduino-UNO-Clone bill of materials (BOM)

51 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328-M
ATmega328-M
U1
1
CH340G
U2
1
AMS1117-3.3
U3
1
NCP1117-5.0_SOT223
U6
1
LM358ADR
U7
1
SI2301DS(A1SHB)
Q1
1
CONN_01X04
Conn_01x04
X1
1
12MHZ
12MHz
Y2
1
DIGITAL_PIN_1
J1
1
3.3V POWER HEADER
J2
1
ANALOG_PIN
J3
1
DIGITAL_PIN_2
J4
1
POWER
J5
1
I2C HEADER
J6
1
UART HEADER
J7
1
USB_B
J8
1
ICSP
J10
1
DC2.1MMX
J11
1
1k
PT1
1
RESET
S1
Show 14 more
QtyPartRefs
1
M7
VD2
1
16MHZ
16MHz
Z1
1
TX
D1
1
RX
D2
1
ON
D3
1
L
D5
1
M7 ISCP
D6
4
C
C1, C5, C6, C8
2
47u 25V
C2, C3
6
100N
100n
C11, C12, C13, C14, C15, C16
2
22PF
C20, C21
1
1M
R1
6
1k
R6, R7, R8, R9, R16, R17
3
10K
R13, R14, R15

Arduino-UNO-Clone design files

The KiCad project lives in the swapnil-maurya/Arduino-UNO-Clone-PCB repository on GitHub; these links point at the commit this page was built from.

Arduino-UNO-Clone: common questions

What microcontroller does the Arduino-UNO-Clone use?

The Arduino-UNO-Clone is built around the ATMEGA328-M, from the AVR/Arduino family.

How big is the Arduino-UNO-Clone PCB?

The Arduino-UNO-Clone measures 68.6 × 53.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arduino-UNO-Clone?

51 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Arduino-UNO-Clone design files?

From the swapnil-maurya/Arduino-UNO-Clone-PCB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Arduino-UNO-Clone design in my own project?

The repository has no license, so all rights stay with swapnil-maurya. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Arduino-UNO-Clone without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
