Gender blender sign-2025 PCB layout, top view — open source ESP32 board by swarmidentity

About the Gender blender sign-2025 PCB

Gender blender sign-2025 is an open source ESP32 PCB design by swarmidentity, published on GitHub. It is a 2-layer board measuring 62.9 × 40.6 mm, with 5 components from 4 distinct parts.

Its main chip is the ESP32-C3-DevKitM-1, from the ESP32 family.

It belongs with the iot & wireless designs in this gallery.

From the project

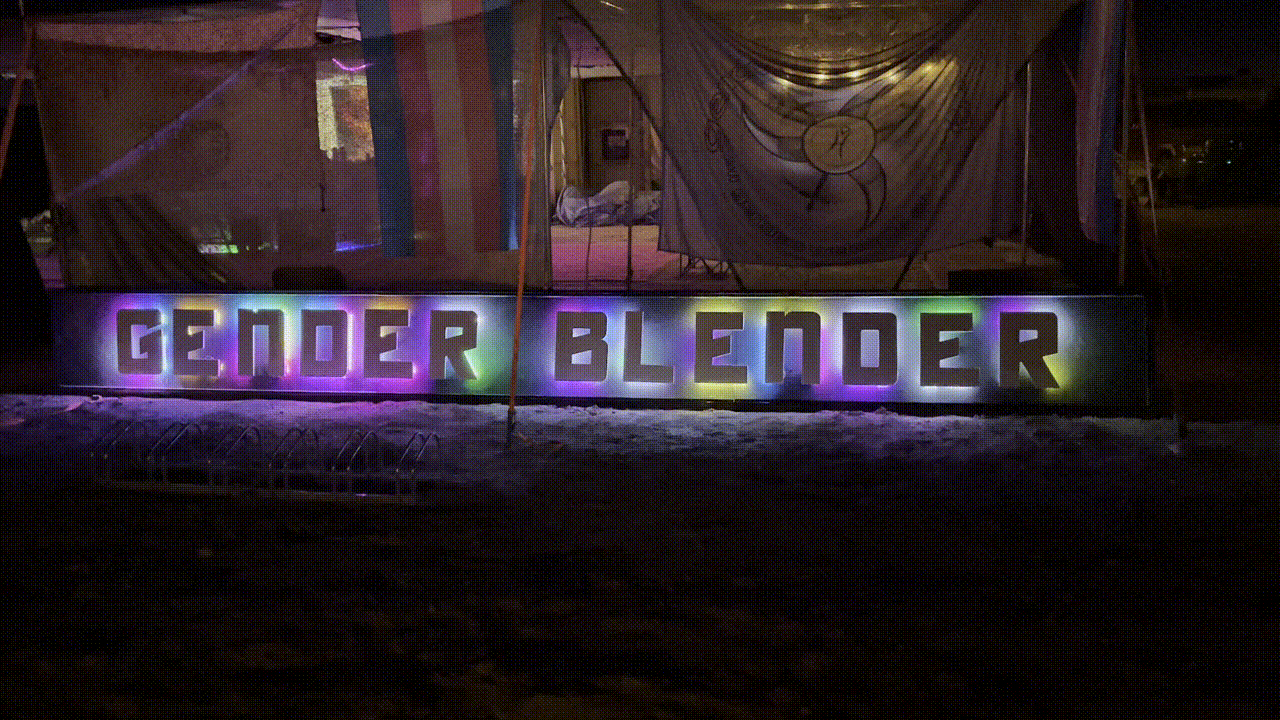

This ESP32-LED powered sign lit up our Burning Man Theme Camp for 2025 (GenderBlender's 16th year on Playa)!

This ESP32-LED powered sign lit up our Burning Man Theme Camp for 2025 (GenderBlender's 16th year on Playa)!

When the sign is powered up, the ESP32 broadcasts a local wifi network called "GenderBlender". When you connect to this network you'll be prompted to sign in to a captive portal (similar to airport or hotel wifi) - I've noticed that this tends to be easier on Android than iPhone, sometimes I had to manually open a browser and try to navigate. Once you're connected, use the displayed 90's-tastic web page to send commands to the sign!

Gender blender sign-2025, from the project README
From the project README

Gender blender sign-2025 bill of materials (BOM)

5 components, 4 distinct parts.

QtyPartRefs
1
BOB-12009
3.3V-5V-Level-Shifter1
2
Conn_01x01
5V-Power-Input-F1, GND-Power-Input-F1
1
ESP32-C3-DevKitM-1
ESP32-Logic-Controller1
1
Conn_01x03_Pin
JST-Output-M1

Gender blender sign-2025 design files

The KiCad project lives in the swarmidentity/gender-blender-sign-2025 repository on GitHub; these links point at the commit this page was built from.

Gender blender sign-2025: common questions

What microcontroller does the Gender blender sign-2025 use?

The Gender blender sign-2025 is built around the ESP32-C3-DevKitM-1, from the ESP32 family.

How big is the Gender blender sign-2025 PCB?

The Gender blender sign-2025 measures 62.9 × 40.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gender blender sign-2025?

5 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gender blender sign-2025 design files?

From the swarmidentity/gender-blender-sign-2025 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Gender blender sign-2025 design in my own project?

The repository has no license, so all rights stay with swarmidentity. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gender blender sign-2025 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
