Syvrcboard v0

syvrc·syvrcboard-v0·PCB/syvrcboard v0.kicad_pcb

Syvrcboard v0 PCB layout, top view — open source RP2040/RP2350 board by syvrc

About the Syvrcboard v0 PCB

Syvrcboard v0 is an open source RP2040/RP2350 PCB design by syvrc, published on GitHub. It is a 2-layer board measuring 362 × 133.4 mm, with 178 components from 10 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 89 diodes, 88 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

a Custom TKL Mechanical Keyboard with 10 Macro Keys, a Rotary Encoder Switch and is powered by Raspberry Pi Pico Board

Features: - 88x keys - a rotary encoder switch for volume , brightness etc - custom TKL layout w/ 11 macrokeys - demon slayer themed pcb silkscreen art!! - works with Raspberry Pi Pico - KMK firmware (subject to change) - sandwich mount

lined (light bg) | lined (dark bg) :-----------------------------------------------------------:|:-----------------------------------------------------------: |

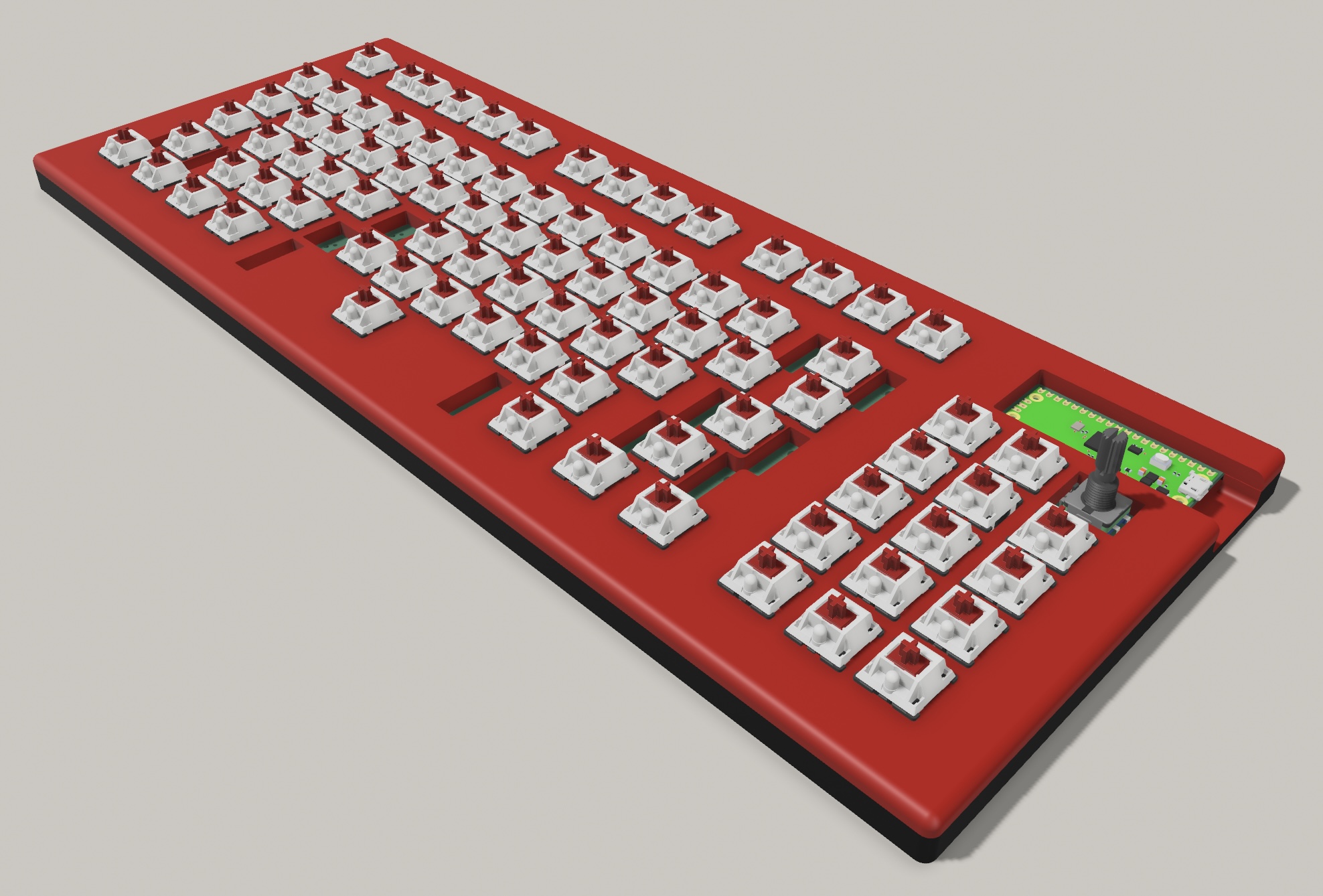

Syvrcboard v0, from the project README
From the project README

Main components on the Syvrcboard v0

Raspberry_Pi_Pico

Syvrcboard v0 bill of materials (BOM)

178 components, 10 distinct parts.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
73
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +65
1
Keyswitch
S27
2
Keyswitch
S30, S43
1
Keyswitch
S47
2
Keyswitch
S59, S63
1
Keyswitch
S74
7
Keyswitch
S78, S79, S80, S81, S83, S84, S85
1
Keyswitch
S82
89
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +81

Syvrcboard v0 design files

The KiCad project lives in the syvrc/syvrcboard-v0 repository on GitHub; these links point at the commit this page was built from.

Syvrcboard v0: common questions

What microcontroller does the Syvrcboard v0 use?

The Syvrcboard v0 is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the Syvrcboard v0 PCB?

The Syvrcboard v0 measures 362 × 133.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Syvrcboard v0?

178 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Syvrcboard v0 design files?

From the syvrc/syvrcboard-v0 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Syvrcboard v0 design in my own project?

The repository has no license, so all rights stay with syvrc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Syvrcboard v0 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
