DRV8874-breakout board
About the DRV8874-breakout board

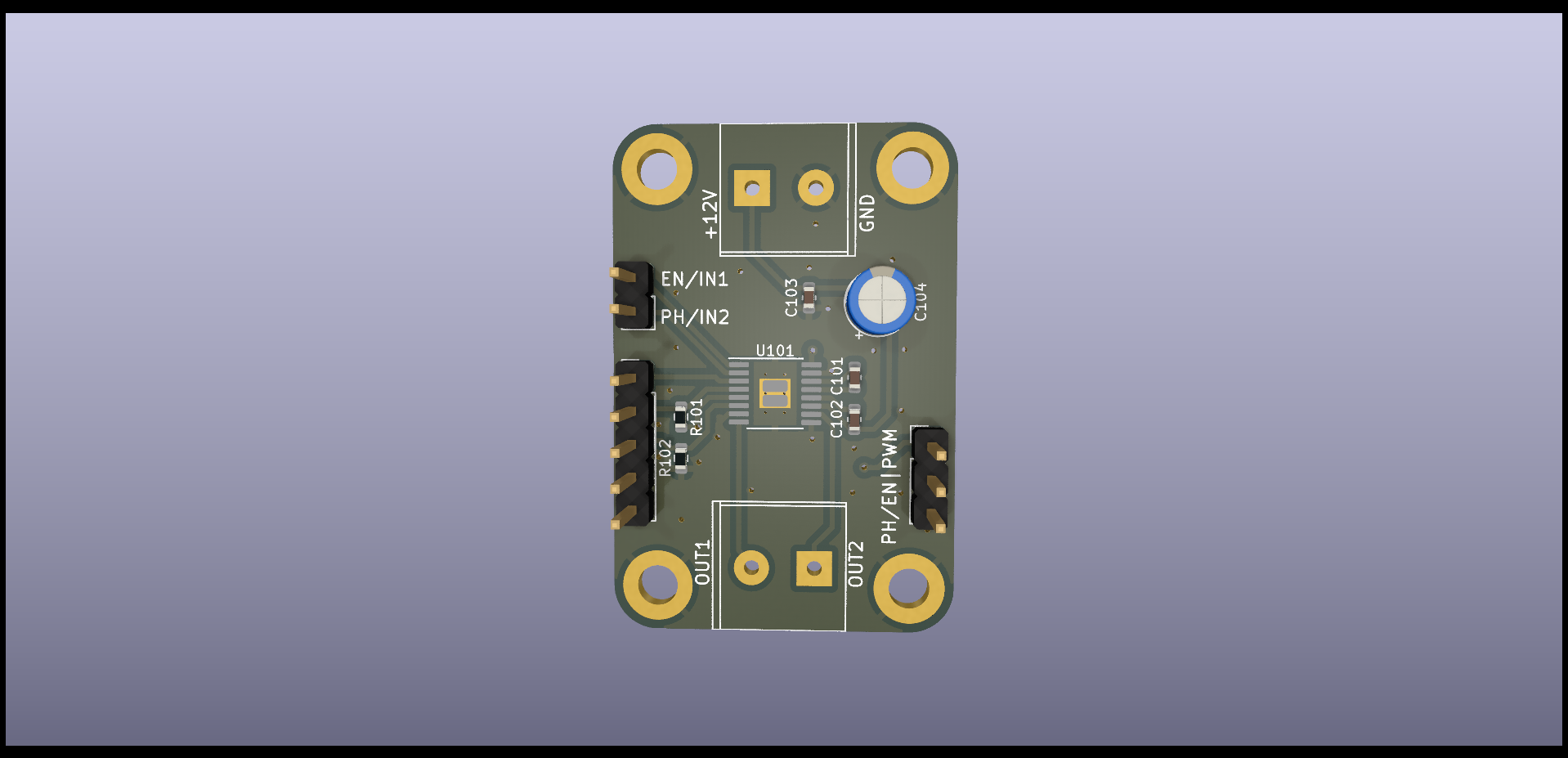

DRV8874-breakout board is an open source PCB design by szolotykh, published on GitHub under the MIT license. It is a 2-layer board measuring 27 × 40 mm, with 13 components from 11 distinct parts.
By type, the board carries 5 connectors, 4 capacitors, 3 resistors and 1 IC.
It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.
From the project
Motor controller based on DRV8874
The Motor Controller, harnessing the power of the DRV8874 H-bridge motor driver by Texas Instruments, offers a top-of-the-line solution for managing small to large DC motors. This compact yet potent device presents an expansive operating supply voltage range of 4.5V to 37V, assuring adaptability with diverse power inputs. It is capable of delivering a peak current of up to a remarkable 6A, ensuring smooth and efficient motor operations even under strenuous conditions. Armed with advanced safety and protection features including overcurrent, thermal, undervoltage, and even charge pump…
DRV8874-breakout board bill of materials (BOM)
13 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.46x2.31mm_ThermalVias | U101 |
| 2 | M0_CONN | JILN JL126-50002G01 | J101, J103 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J102 |
| 1 | Conn_01x06_Pin | PinHeader_1x05_P2.54mm_Vertical | J104 |
| 1 | PMODE | PinHeader_1x03_P2.54mm_Vertical | J105 |
| 1 | 22nf | C_0603_1608Metric | C101 |
| 2 | 0.1uf | C_0603_1608Metric | C102, C103 |
| 1 | 47u | CP_Radial_D5.0mm_P2.00mm | C104 |
| 1 | 10K | R_0603_1608Metric | R101 |
| 1 | 1.2K | R_0603_1608Metric | R102 |
| 1 | ~ | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R103 |
DRV8874-breakout board design files
The KiCad project lives in the szolotykh/DRV8874-breakout-board repository on GitHub; these links point at the commit this page was built from.
DRV8874-breakout board: common questions
How big is the DRV8874-breakout board?
The DRV8874-breakout board measures 27 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DRV8874-breakout board?
13 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the DRV8874-breakout board design files?
From the szolotykh/DRV8874-breakout-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DRV8874-breakout board design in my own project?
Yes, under the terms of its MIT license, which szolotykh chose for the repository.
