T dsp tac5212 pro audio module layout, top view — open source board by t-dsp
Simulate this board

About the T dsp tac5212 pro audio module

T dsp tac5212 pro audio module is an open source PCB design by t-dsp, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 41.3 × 26.5 mm, with 75 components from 26 distinct parts.

Other key parts include the 74LVC1G125GV,125. By type, the board carries 31 resistors, 24 capacitors, 9 diodes, 4 inductors, 3 transformers and 2 ICs.

It belongs with the audio designs in this gallery.

From the project

Part of the T-DSP open modular audio platform.

Part of the T-DSP open modular audio platform.

A compact (50mm x 34.5mm) stereo audio codec module built around the Texas Instruments TAC5212 high-performance audio codec.

View 3D Render Gallery -- interactive slideshow of all board views

T-DSP is an open modular audio platform designed for musicians, engineers, and developers who want powerful digital signal processing in a flexible, hackable format. Built around the Teensy microcontroller and the Teensy Audio Library, T-DSP combines studio-quality audio with a growing library of open-source modules for mixing, synthesis, effects, and…

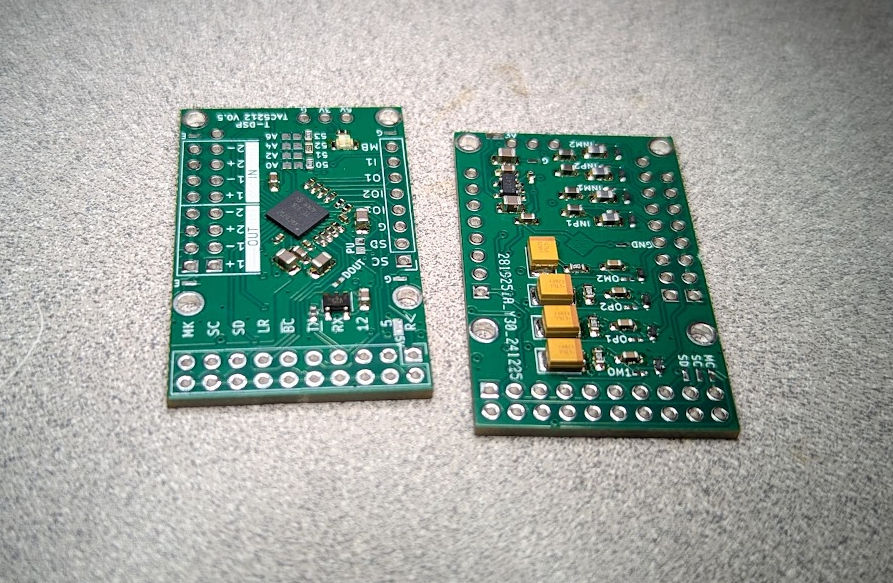

T dsp tac5212 pro audio module, from the project README
From the project README

Main components on the T dsp tac5212 pro audio module

74LVC1G125GV,125

T dsp tac5212 pro audio module bill of materials (BOM)

75 components, 26 distinct parts.

QtyPartRefs
1
Single Buffer with Tri-state Passthru - SN74LVC1G66DCK - SOT-23-5
U108
1
74LVC1G125GV,125
3.3v LDO - TLV74133PDBVR
TI / Nexperia
U109
2
C1608X7R1H473K080AA
10uF
TDK
T*C108, T*C110
1
1uF
T*C109
1
TAC5212IRGER
TAC5212
1
-
board
-
board_outline108
8
TPD1E10B06DPYR
D108, D109, D110, D111, D112, D113, D114, D115
1
RED LED
D116
4
BLM21A601S - BLM21AG601SH1
FB108, FB109, FB110, FB111
4
C1608X7R1H473K080AA
10uF
TDK
C108, C111, C115, C131
5
0.1uF
C109, C112, C116, C128, C129
4
47uF
C110, C117, C121, C123
4
0.0047µF (4.7nF)
C113, C114, C120, C122
2
1uF
C118, C119
4
10uF
C124, C125, C126, C127
1
47uF
C130
4
10 ohm
R108, R111, R132, R135
4
49.9
R109, R110, R112, R113
3
0 Ohm
R115, R118, R119
2
33 ohm
R117, R125
Show 6 more
QtyPartRefs
3
2.21k ohm
R120, R121, R140
1
22.0k
R122
2
4.7k
R123, R124
4
DNP
R127, R128, R129, R130
4
0 ohm
R134, R161, R162, R163
4
100K
R136, R137, R138, R139

T dsp tac5212 pro audio module design files

The KiCad project lives in the t-dsp/t-dsp_tac5212_pro_audio_module repository on GitHub; these links point at the commit this page was built from.

T dsp tac5212 pro audio module: common questions

How big is the T dsp tac5212 pro audio module?

The T dsp tac5212 pro audio module measures 41.3 × 26.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the T dsp tac5212 pro audio module?

75 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the T dsp tac5212 pro audio module design files?

From the t-dsp/t-dsp_tac5212_pro_audio_module repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the T dsp tac5212 pro audio module design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
