Msp430 jtag

Tarsier-Marianz·msp430_jtag

Msp430 jtag PCB layout, top view — open source board by Tarsier-Marianz

About the Msp430 jtag PCB

Msp430 jtag is an open source PCB design by Tarsier-Marianz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 57.2 × 38.1 mm, with 25 components from 12 distinct parts.

Other key parts include the 74LS244. By type, the board carries 18 resistors, 3 connectors, 1 IC, 1 transistor, 1 diode and 1 capacitor.

It belongs with the usb & debug tools designs in this gallery.

From the project

MSP430-JTAG Parallel Port Programmer

A simple MSP430-JTAG Parallel Port Programmer

KiCad IDE - for letting me use a free software in designing PCB

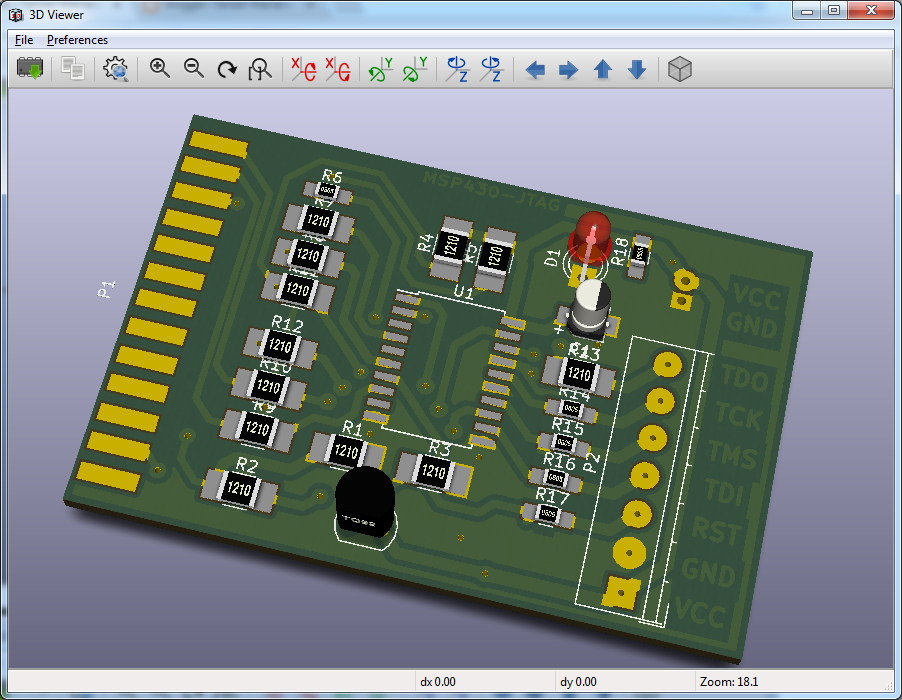

Msp430 jtag, from the project README
From the project README

Main components on the Msp430 jtag

74LS244

Msp430 jtag bill of materials (BOM)

25 components, 12 distinct parts.

QtyPartRefs
1
74LS244
U1
1
PN2222A
Q1
1
CONN_01X25
P1
1
CONN_01X07
P2
1
CONN_01X02
P3
1
LED
D1
1
0.1uF
C1
11
33K
R1, R2, R4, R5, R7, R8, R9, R10 +3
1
3.3K
R3
1
82Ω
R6
4
330Ω
R14, R15, R16, R17
1
R
R18

Msp430 jtag design files

The KiCad project lives in the Tarsier-Marianz/msp430_jtag repository on GitHub; these links point at the commit this page was built from.

Msp430 jtag: common questions

How big is the Msp430 jtag PCB?

The Msp430 jtag measures 57.2 × 38.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Msp430 jtag?

25 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Msp430 jtag design files?

From the Tarsier-Marianz/msp430_jtag repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Msp430 jtag design in my own project?

Yes, under the terms of its GPL-3.0 license, which Tarsier-Marianz chose for the repository.
