About the Amiga Mouse Switch PCB
Amiga Mouse Switch is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 82.6 × 40.6 mm, with 23 components from 15 distinct parts.
Other key parts include the 74HCT4053 and NE555. By type, the board carries 4 modules, 4 resistors, 3 ICs, 3 jumpers, 3 diodes and 3 capacitors.
It belongs with the retro computing designs in this gallery.
From the project

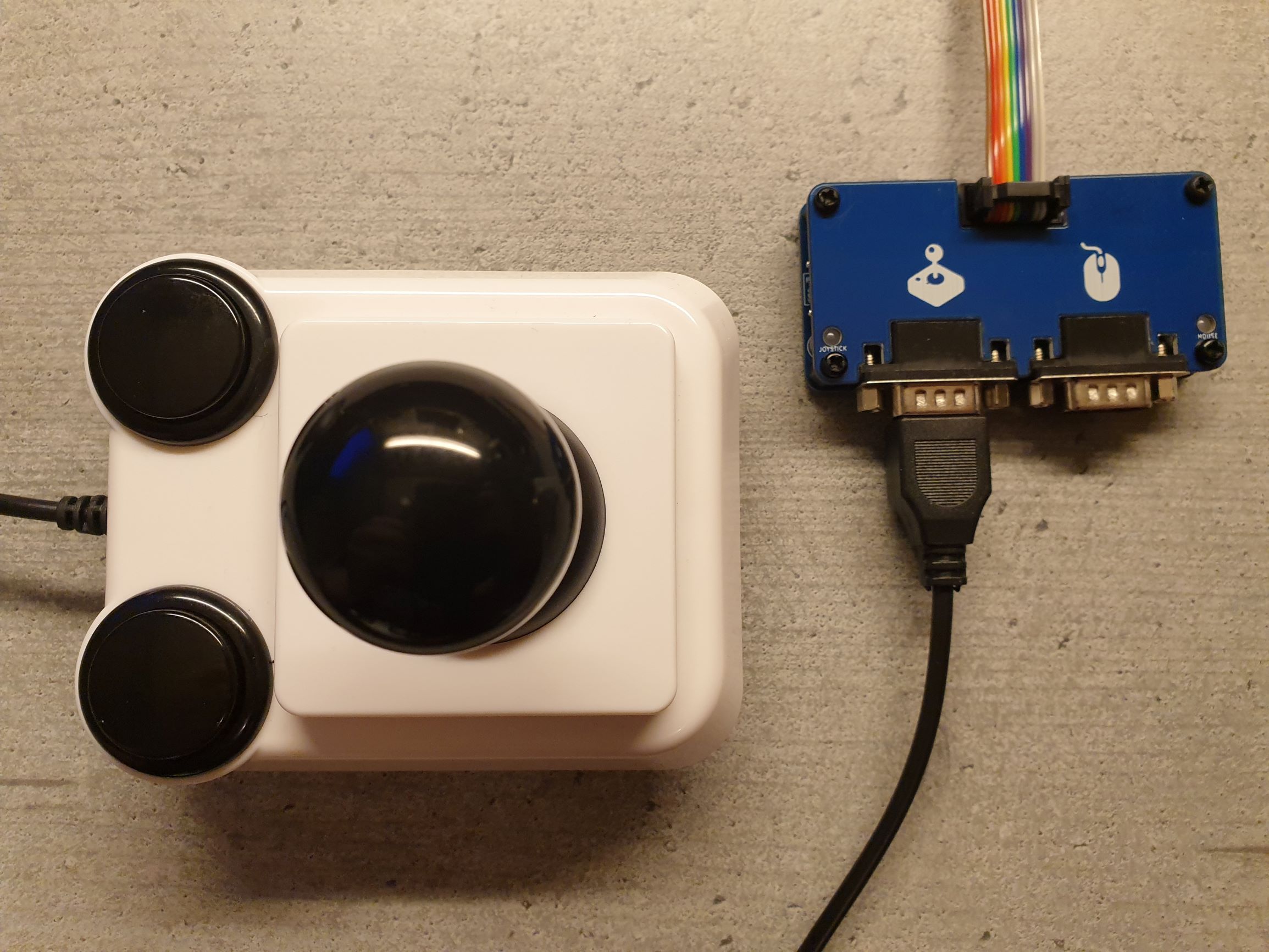

An attempt at building an automatic Amiga Mouse/Joystick switch (when used with Amiga port 1) - pushing the button changes the device connected. No more two-cable Merengue for me on the Amiga 500, forever more!
The easy solution is to simply buy one of the many adapters that allows you to switch between the mouse and a joystick at the push of a button, but as I like building things I've attempted to make a new version of it - in part by just copying parts of the C64 Joystick Switcher that in many ways is very similar. I also took some inspiration from reading the December 1991 article in Elektor Magazine, unfortunately locked behind a paywall.

Main components on the Amiga Mouse Switch
Amiga Mouse Switch bill of materials (BOM)
23 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HCT4053 | DIP-16_W7.62mm_Socket_LongPads | U1, U2 |
| 1 | NE555 | DIP-8_W7.62mm_Socket_LongPads | U3 |
| 4 | Mounting | M3_pin | M1, M2, M3, M4 |
| 1 | Amiga IDC | IDC_Joystick | J3 |
| 1 | AUTO_JOY | bridge | JP1 |
| 1 | AUTO_MOUSE | bridge | JP2 |
| 1 | EN_SCROLL | bridge | JP3 |
| 1 | JOY_SEL | SW_PUSH_6mm | SW1 |
| 1 | MOUSE_SEL | SW_PUSH_6mm | SW2 |
| 1 | MOUSE | LED_D5.0mm | D1 |
| 1 | JOYSTICK | LED_D5.0mm | D2 |
| 1 | 1n4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D3 |
| 3 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2, C3 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2 |
| 2 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R4 |
Amiga Mouse Switch design files
The KiCad project lives in the tebl/Amiga-Mouse-Switch repository on GitHub; these links point at the commit this page was built from.
Amiga Mouse Switch: common questions
How big is the Amiga Mouse Switch PCB?
The Amiga Mouse Switch measures 82.6 × 40.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Amiga Mouse Switch?
23 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Amiga Mouse Switch design files?
From the tebl/Amiga-Mouse-Switch repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Amiga Mouse Switch design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
