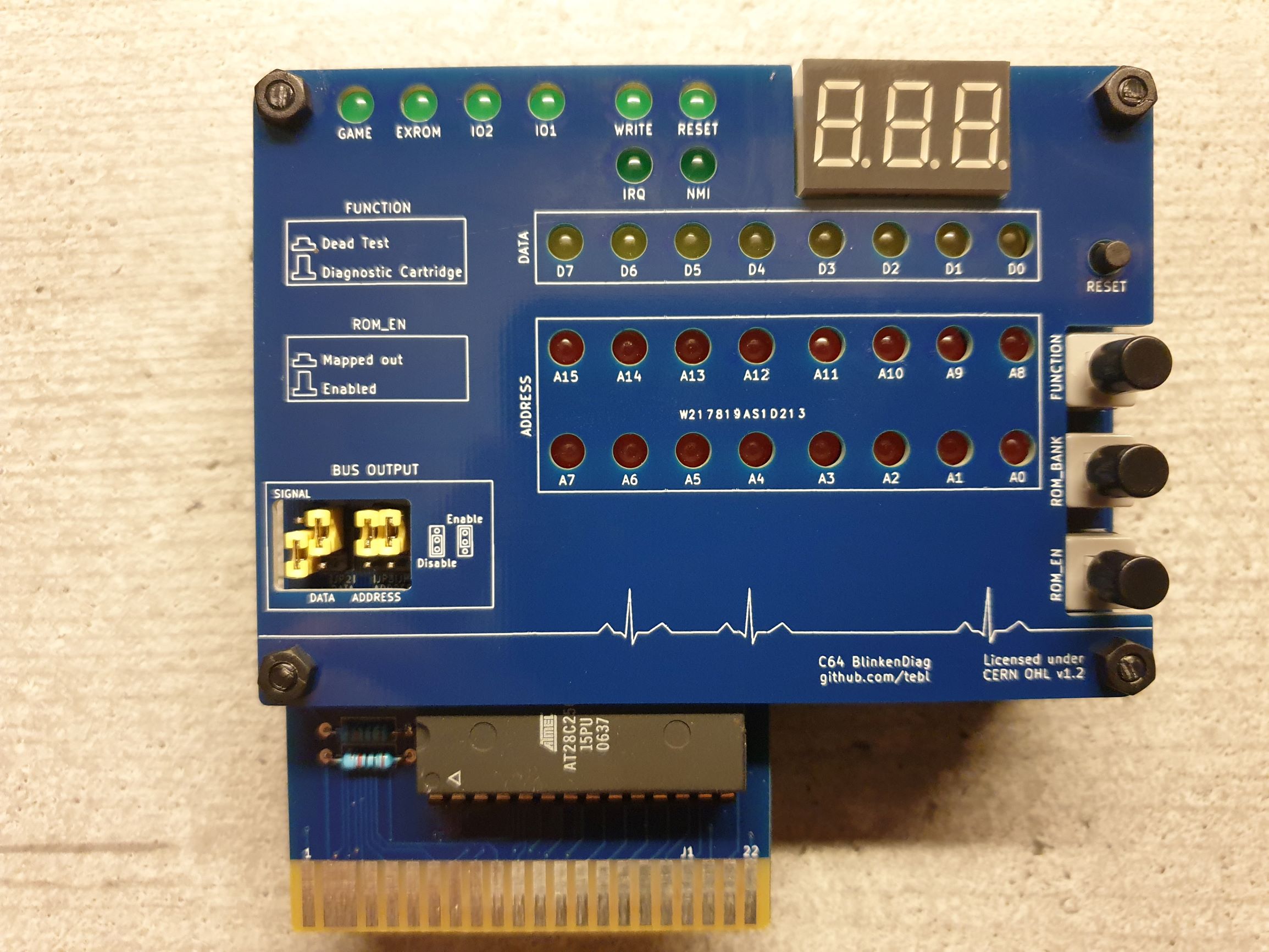

About the C64 BlinkenDiag Faceplate PCB
C64 BlinkenDiag Faceplate is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 99.4 × 70.1 mm, with 4 components from 1 distinct parts.
It belongs with the retro computing designs in this gallery.
From the project
A version of the DIAG64cart, this mainly changes components for the ones I've already got and adds a lot of LEDs. It's a blinkenlight project for diagnostic usage.
- 1> Building the unit - 1.1> Soldering it together - 1.2> Assembling the unit - 1.3> Testing it out - 2> Schematic - 3> BOM
Add the capacitors that are next to the sockets, these are only for decoupling and are not of the kind that is polarized - personally I tend to solder them in so that, if possible, you can see the printing on the side. The electrolytic capacitor on the bottom left corner, but we need to check that we have a component that will fit first - the faceplate will sit 8mm above the main PCB. If you have one that won't fit, you can lay it on its side instead of waiting for the…

C64 BlinkenDiag Faceplate bill of materials (BOM)
4 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Mounting | M3_pin | M1, M2, M3, M4 |
C64 BlinkenDiag Faceplate design files
The KiCad project lives in the tebl/C64-BlinkenDiag repository on GitHub; these links point at the commit this page was built from.
C64 BlinkenDiag Faceplate: common questions
How big is the C64 BlinkenDiag Faceplate PCB?
The C64 BlinkenDiag Faceplate measures 99.4 × 70.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the C64 BlinkenDiag Faceplate?
4 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the C64 BlinkenDiag Faceplate design files?
From the tebl/C64-BlinkenDiag repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the C64 BlinkenDiag Faceplate design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
