Remote PCB layout, top view — open source board by TemuWolverine

About the Remote PCB

Remote is an open source PCB design by TemuWolverine, published on GitHub under the MIT license. It is a 2-layer board measuring 41.3 × 109.1 mm, with 16 components from 5 distinct parts.

Other key parts include the lolin32_lite_V1.00. By type, the board carries 2 ICs, 1 connector and 1 capacitor.

It belongs with the power & battery designs in this gallery.

From the project

Hardware-based music assistant focused devices

Mech parts * 3x M2.5? M3? heat set inserts & screws

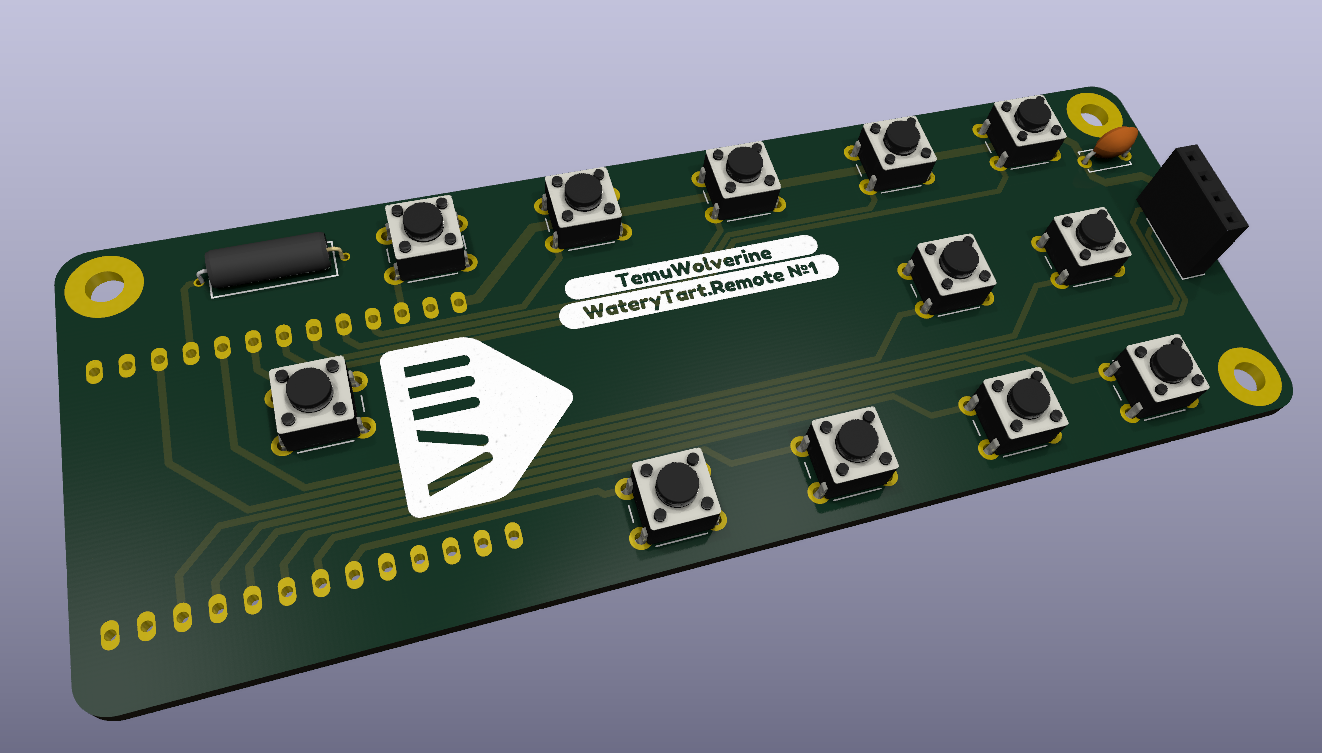

Remote, from the project README
From the project README

Main components on the Remote

lolin32_lite_V1.00

Remote bill of materials (BOM)

16 components, 5 distinct parts.

QtyPartRefs
1
lolin32_lite_V1.00
U1
1
~
SHOU HAN(首韩)
U2
1
Conn_01x04
J1
12
SW_Omron_B3FS
BtnCycleRepeat1, BtnFavourite1, BtnNextTrack1, BtnPlayPause1, BtnPlayerCylceNext1, BtnPlayerCylcePrevious1, BtnPreviousTrack1, BtnShuffle1 +4
1
0.1uF
C2

Remote design files

The KiCad project lives in the TemuWolverine/WateryTart.Hardware repository on GitHub; these links point at the commit this page was built from.

Remote: common questions

How big is the Remote PCB?

The Remote measures 41.3 × 109.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Remote?

16 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Remote design files?

From the TemuWolverine/WateryTart.Hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Remote design in my own project?

Yes, under the terms of its MIT license, which TemuWolverine chose for the repository.
