GBC CARD
About the GBC CARD PCB
GBC CARD is an open source PCB design by theBrutzler, published on GitHub. It is a 2-layer board measuring 57.2 × 24 mm, with 19 components from 9 distinct parts.
Other key parts include the AW9523B. By type, the board carries 7 resistors, 5 capacitors, 2 ICs, 2 transistors, 2 connectors and 1 diode.
It belongs with the retro computing designs in this gallery.
From the project

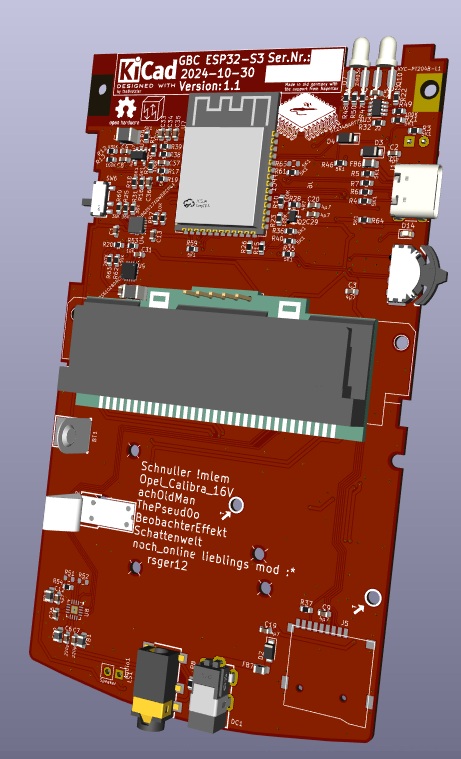

A retrofit board with an esp32 for a gameboy color case
https://github.com/jsc69/theLittleBrutzelboy/releases/tag/0.8a link to the brutzleboy game
Main components on the GBC CARD
GBC CARD bill of materials (BOM)
19 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AW9523B | QFN-24-1EP_4x4mm_P0.5mm_EP2.7x2.7mm | U1, U2 |
| 1 | C19078062 PMOS | SOT-323_SC-70 | Q1 |
| 1 | BC817 | SOT-323_SC-70 | Q2 |
| 1 | CONN_01X05_PIN Conn_01x05_Pin | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | GB_GBC_1X32 GB_GBC_1x32 | GB_GBC_1x32 | J2 |
| 1 | C5120763 D | Nexperia_CFP3_SOD-123W | D1 |
| 2 | 100N 100n | C_0603_1608Metric | C1, C2 |
| 3 | C69335 4µ7 | C_0603_1608Metric | C3, C4, C5 |
| 7 | 5K1 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7 |
GBC CARD design files
The KiCad project lives in the theBrutzler/ESP32_GBC_RETROFIT repository on GitHub; these links point at the commit this page was built from.
GBC CARD: common questions
How big is the GBC CARD PCB?
The GBC CARD measures 57.2 × 24 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GBC CARD?
19 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the GBC CARD design files?
From the theBrutzler/ESP32_GBC_RETROFIT repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the GBC CARD design in my own project?
The repository has no license, so all rights stay with theBrutzler. Use it as a reference, and ask the author before reusing the design.
