Pcb ae2 soundlink usb c layout, top view — open source board by TimGoll

About the Pcb ae2 soundlink usb c

Pcb ae2 soundlink usb c is an open source PCB design by TimGoll, published on GitHub. It is a 2-layer board measuring 18.5 × 12.1 mm, with 6 components from 5 distinct parts.

By type, the board carries 3 resistors, 2 connectors and 1 capacitor.

It belongs with the audio designs in this gallery.

From the project

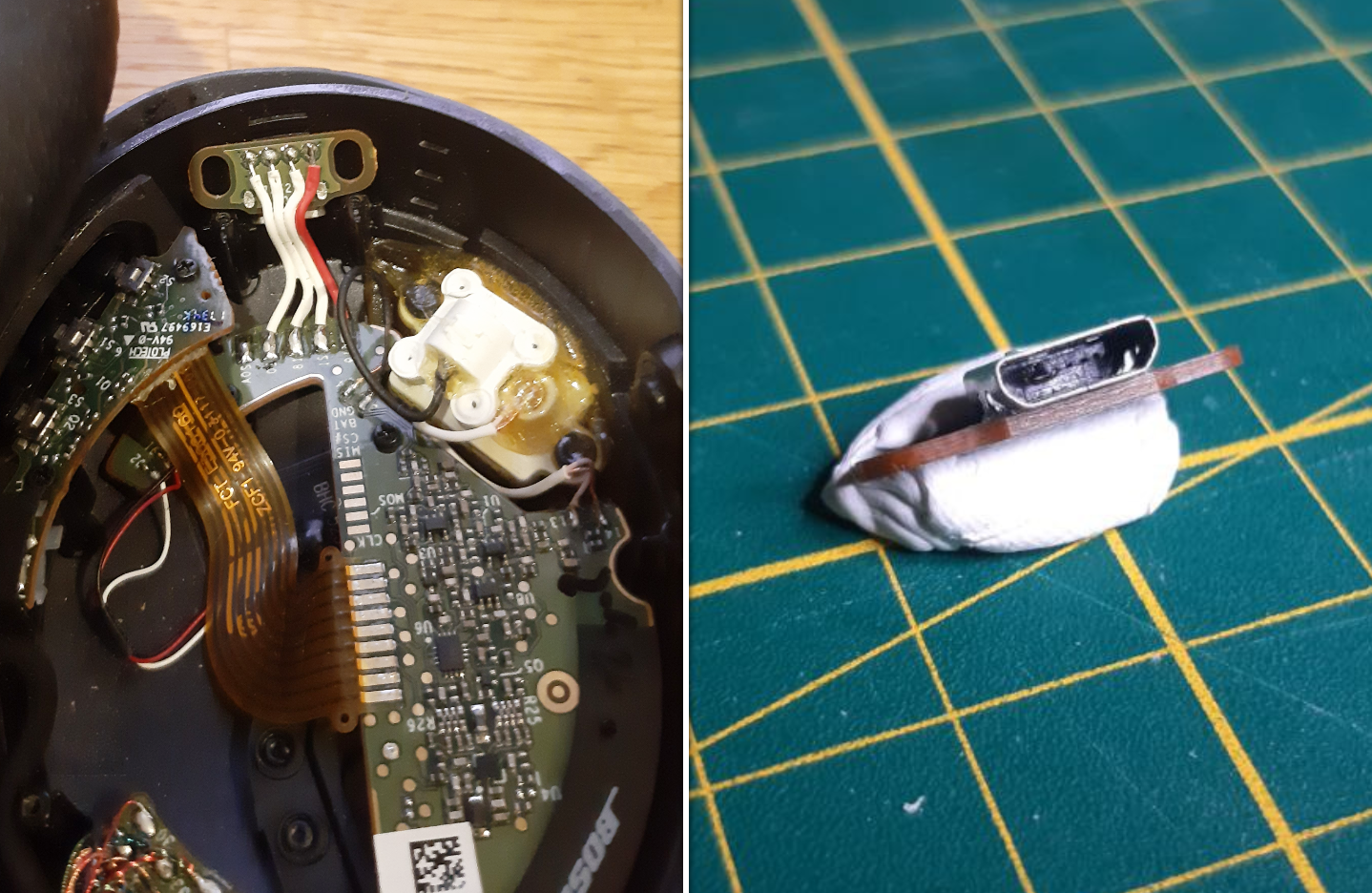

A few months after the warranty expired one of the contacts in the USB receptable broke of. This made it impossible for me to charge the device. Since there were no replacement parts available, I wanted to fix it by myself. One possible solution was to just replace the receptacle

A few months after the warranty expired one of the contacts in the USB receptable broke of. This made it impossible for me to charge the device. Since there were no replacement parts available, I wanted to fix it by myself. One possible solution was to just replace the receptacle on the PCB, but I wanted to use replace the PCB completely, because these headphones were my last remaining micro USB device.

Pcb ae2 soundlink usb c, from the project README
From the project README

Pcb ae2 soundlink usb c bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
UFP Receptacle (USB2.0)
J1
1
usb
J2
1
4n7
C1
1
1M
R1
2
5k1
R2, R3

Pcb ae2 soundlink usb c design files

The KiCad project lives in the TimGoll/pcb_ae2_soundlink_usb-c repository on GitHub; these links point at the commit this page was built from.

Pcb ae2 soundlink usb c: common questions

How big is the Pcb ae2 soundlink usb c?

The Pcb ae2 soundlink usb c measures 18.5 × 12.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pcb ae2 soundlink usb c?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb ae2 soundlink usb c design files?

From the TimGoll/pcb_ae2_soundlink_usb-c repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pcb ae2 soundlink usb c design in my own project?

The repository has no license, so all rights stay with TimGoll. Use it as a reference, and ask the author before reusing the design.
