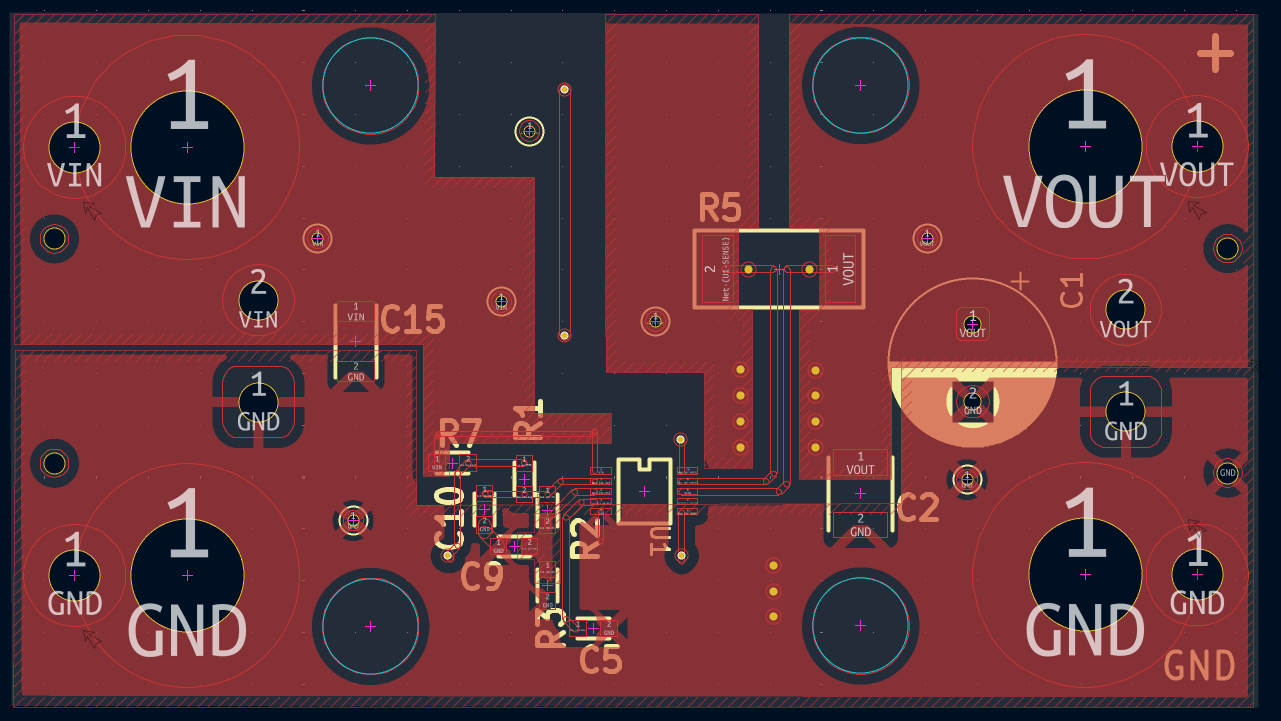

LVC PCB layout, top view — open source board by TKontu

About the LVC PCB

LVC is an open source PCB design by TKontu, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 61.2 × 34.1 mm, with 23 components from 18 distinct parts.

Other key parts include the C688384. By type, the board carries 9 capacitors, 7 resistors, 2 transistors and 1 IC.

It belongs with the power & battery designs in this gallery.

From the project

An inline protection board for replacing 2S NiMH/NiCd packs with 2S LiPo/LiHV, built around the Analog Devices LTC4368-1. NiMH tolerates being run flat; LiPo/LiHV does not. This board adds the low-voltage cutoff those older packs never needed, plus reverse-battery and bidirection

An inline protection board for replacing 2S NiMH/NiCd packs with 2S LiPo/LiHV, built around the Analog Devices LTC4368-1. NiMH tolerates being run flat; LiPo/LiHV does not. This board adds the low-voltage cutoff those older packs never needed, plus reverse-battery and bidirectional overcurrent protection, between the battery and the existing load.

Pack-total sensing on the two main leads only — cell balancing is handled by the charger via the balance lead. Adapted from the ADI DC2418A demo board, rescaled from 24 V / 10 A to a 2S (6.0–8.7 V) pack.

LVC, from the project README
From the project README

Main components on the LVC

C688384

LVC bill of materials (BOM)

23 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C688384
LTC4368IMS-1_PBF
ADI
U1
2
SIR870ADP-T1-GE3
Q2, Q3
4
KEYSTONE_8831
MH3, MH4, MH5, MH6
1
47 uF
TBD
C1
1
C22877898
4.7 uF
TDK
C2
1
C344195
OPT
CCTC
C5
1
C381466
4.7 uF
PSA
C6
1
C54157527
4.7 uF
TORCH
C7
2
OPT
C9, C10
1
C577233
3.3 nF
YAGEO
C11
1
C282823
1 uF
CCTC
C15
1
C4219180
1.18 M
VISHAY
R1
1
C2930117
56.2 k
FOJAN
R2
1
C14675
100 k
YAGEO
R3
1
C51934143
1.2 m
JIERR
R4
1
DNP
R5
1
C2778857
649 k
UNI-ROYAL
R7
1
C2907456
22 k
FOJAN
R13

LVC design files

The KiCad project lives in the TKontu/ltc4368-2s-protector repository on GitHub; these links point at the commit this page was built from.
