Skibidi usb c hub
About the Skibidi usb c hub PCB
Skibidi usb c hub is an open source PCB design by tobycm, published on GitHub under the MIT license. It is a 2-layer board measuring 17.5 × 40 mm, with 24 components from 11 distinct parts.
Other key parts include the CH334P. By type, the board carries 8 resistors, 7 capacitors, 1 IC, 1 fuse, 1 diode and 1 inductor.
From the project
speedrunning a usb a to 4 port usb c hub in school xd
speedrunning a usb a to 4 port usb c hub in school xd

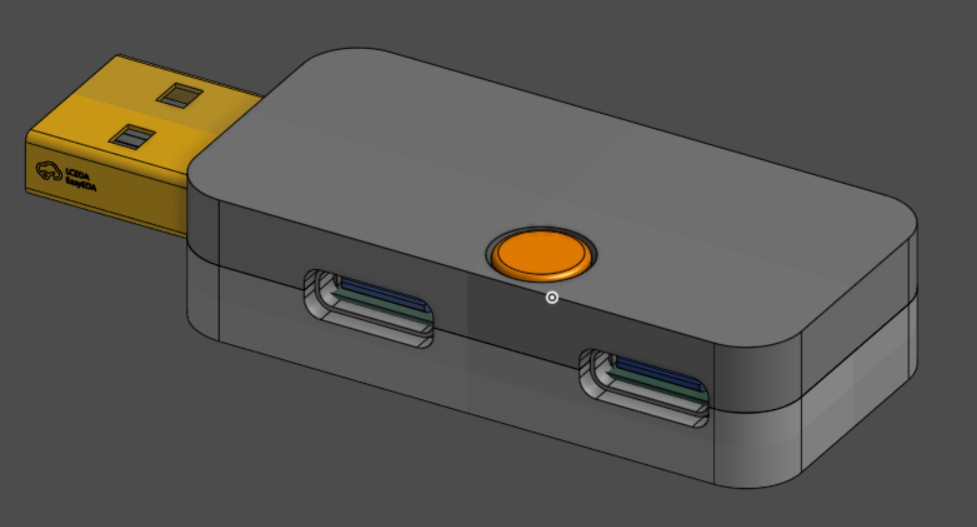

i had an old computer that only has usb a ports, so i made this hub to extend those ports to usb c
Onshape: https://cad.onshape.com/documents/2453a6f2426758a8164db13e/w/aaae3aa11a76b09d86b06c41/e/a0f10c7f22eb2d735bb89467?renderMode=0&uiState=698d8565a52609b0fe224337
Kicanvas: https://kicanvas.org/?repo=https%3A%2F%2Fgithub.com%2Ftobycm%2Fskibidi-usb-c-hub%2Ftree%2Fmain%2Fpcb
Main components on the Skibidi usb c hub
Skibidi usb c hub bill of materials (BOM)
24 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH334P | QFN-16_L3.0-W3.0-P0.50-BL-EP1.7 | U1 |
| 1 | 2A | Fuse_1206_3216Metric | F1 |
| 1 | AM90 | USB-AM-TH_AM90 | USB1 |
| 4 | C2765186 TYPE-C 16PIN 2MD(073) | USB-C-SMD_TYPE-C-6PIN-2MD-073 | USB2, USB3, USB4, USB5 |
| 1 | 5V | D_SOD-523 | D1 |
| 1 | 220Ω@100MHz | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | FB1 |
| 1 | 100N 100n | C_0402_1005Metric | C1 |
| 1 | 4.7U 4.7u | C_0402_1005Metric | C2 |
| 4 | 10U 10u | C_0603_1608Metric | C5, C6, C7, C8 |
| 1 | 220u | CP_Elec_6.3x5.8 | C9 |
| 8 | 56K 56k | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 |
Skibidi usb c hub design files
The KiCad project lives in the tobycm/skibidi-usb-c-hub repository on GitHub; these links point at the commit this page was built from.
Skibidi usb c hub: common questions
How big is the Skibidi usb c hub PCB?
The Skibidi usb c hub measures 17.5 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Skibidi usb c hub?
24 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Skibidi usb c hub design files?
From the tobycm/skibidi-usb-c-hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Skibidi usb c hub design in my own project?
Yes, under the terms of its MIT license, which tobycm chose for the repository.
