About the Busboard PCB

Busboard is an open source PCB design by tomarus, published on GitHub. It is a 2-layer board measuring 200 × 31.5 mm, with 19 components from 5 distinct parts.

By type, the board carries 13 connectors, 3 LEDs and 3 resistors.

It belongs with the audio designs in this gallery.

From the project

Eurorack Busboard

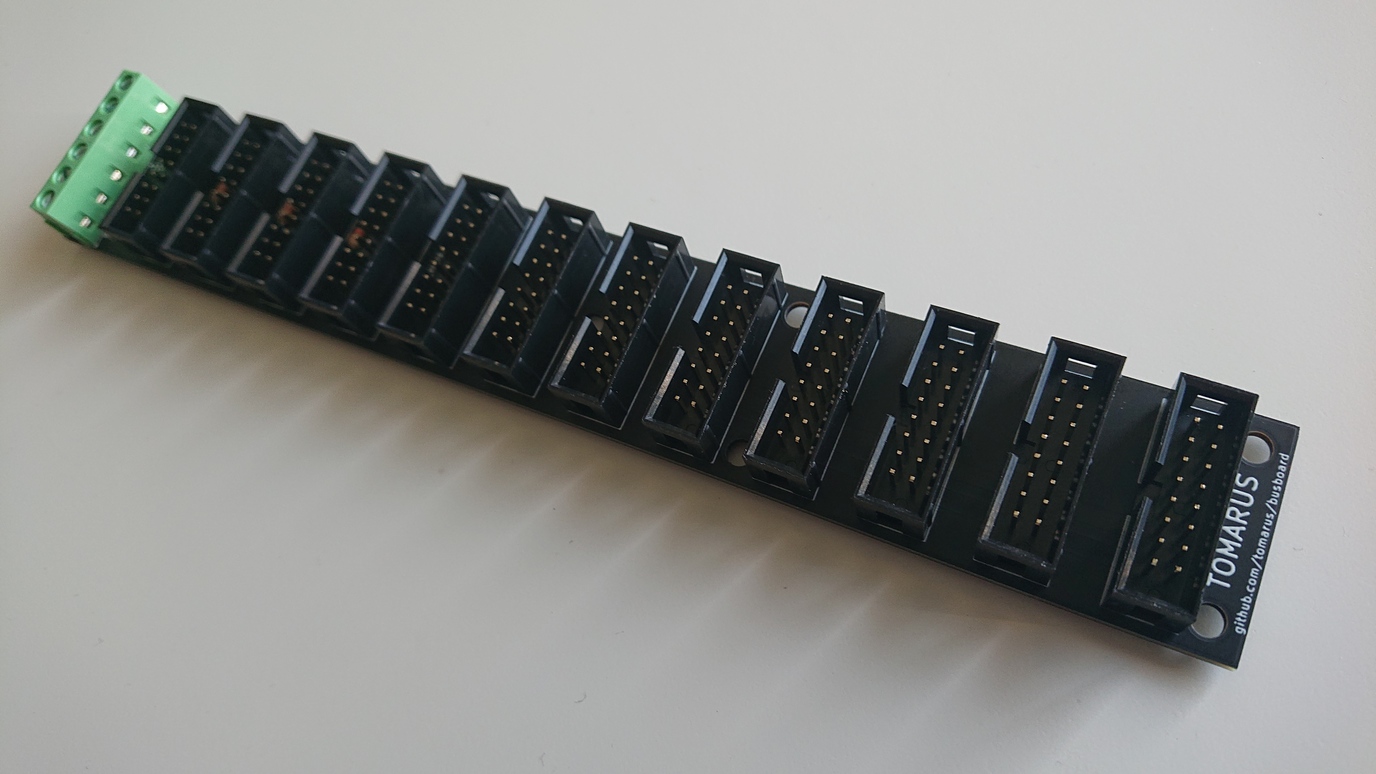

Busboard, from the project README
From the project README

Busboard bill of materials (BOM)

19 components, 5 distinct parts.

QtyPartRefs
12
Conn_02x08_Odd_Even
J1, J2, J3, J4, J5, J6, J7, J8 +4
1
Conn_01x06
J13
3
LED
+5v, +12v, -12v
2
2K
R1, R2
1
1K
R3

Busboard design files

The KiCad project lives in the tomarus/busboard repository on GitHub; these links point at the commit this page was built from.

Busboard: common questions

How big is the Busboard PCB?

The Busboard measures 200 × 31.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Busboard?

19 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Busboard design files?

From the tomarus/busboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Busboard design in my own project?

The repository has no license, so all rights stay with tomarus. Use it as a reference, and ask the author before reusing the design.
