Fordacp
About the Fordacp PCB
Fordacp is an open source AVR/Arduino PCB design by tomaskovacik, published on GitHub. It is a 2-layer board measuring 39.7 × 28.7 mm, with 36 components from 27 distinct parts.
Its main chip is the ATMEGA2560-A, from the AVR/Arduino family. Other key parts include the SP3485CN, AP1117D50, BLK-MD-SPK-B and XS3860. By type, the board carries 13 capacitors, 9 resistors, 5 ICs, 3 diodes, 2 connectors and 1 crystal.
From the project
HW for Dale Thomas fordcap CD changer emualtor
SW is Dale Thomas/Krzysztof Pintscher/Andrew Hammond work not my
www.instructables.com/id/Ford-CD-Emulator-Arduino-Mega/ http://www.instructables.com/id/Ford-Bluetooth-Interface-Control-phone-with-stock-/
I make just HW part in kicad, libraries for BLK-MD-SPK-B and S3860M-S here

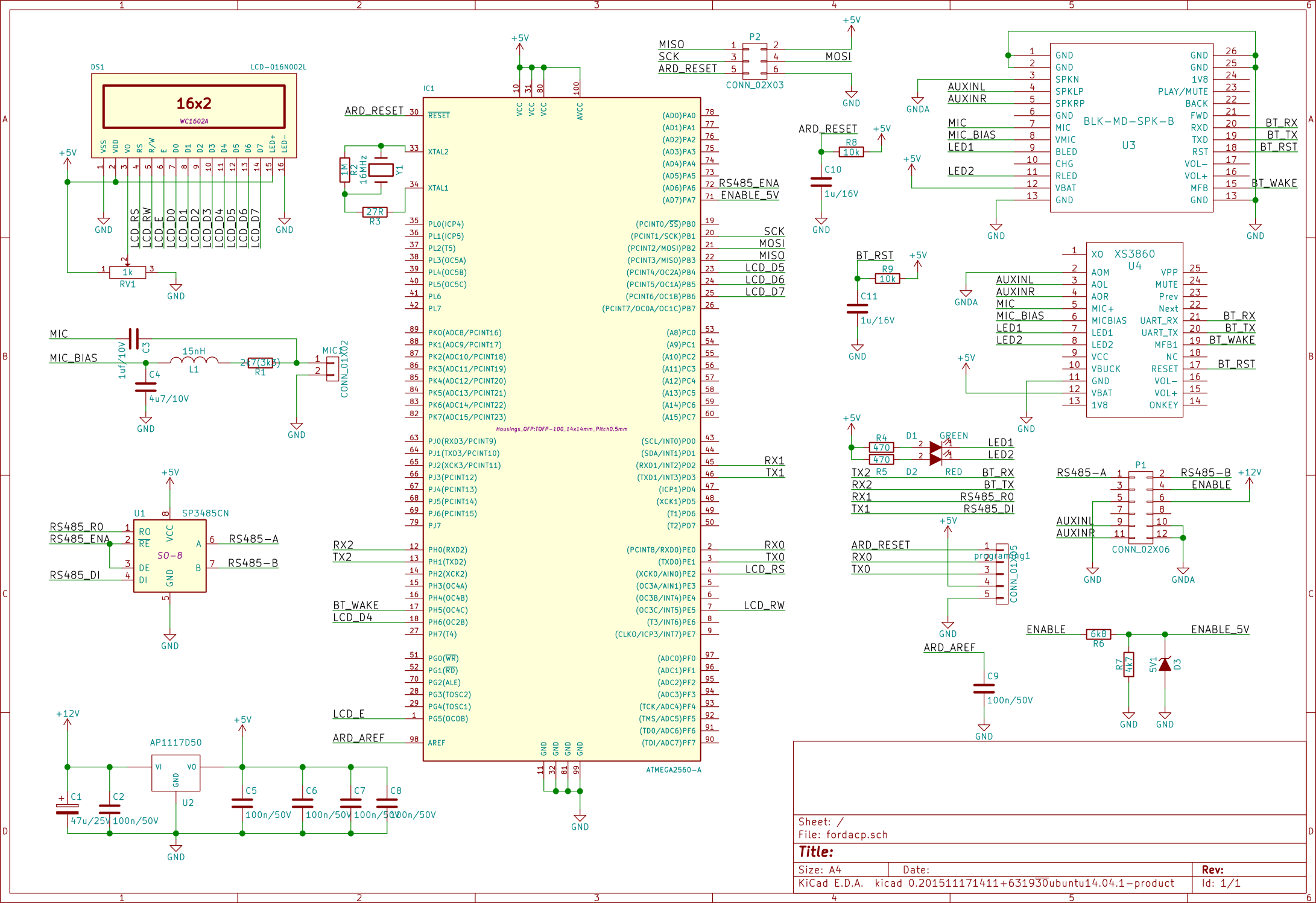

schematics ------------ schematics in pdf
Main components on the Fordacp
Fordacp bill of materials (BOM)
36 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA2560-A | TQFP-100_14x14mm_Pitch0.5mm | IC1 |
| 1 | SP3485CN | SO-8 | U1 |
| 1 | AP1117D50 | SOT-223-REGULATOR | U2 |
| 1 | BLK-MD-SPK-B | BLK-MD-SPK-B | U3 |
| 1 | XS3860 | S3860M-S | U4 |
| 1 | 16MHz | Q_49U3HMS | Y1 |
| 1 | CONN_02X06 | Pin_Header_Straight_2x06 | P1 |
| 1 | CONN_02X03 | Pin_Header_Straight_2x03 | P2 |
| 1 | CONN_01X02 | Pin_Header_Straight_1x02 | MIC1 |
| 1 | CONN_01X05 | Pin_Header_Straight_1x05 | programing1 |
| 1 | GREEN | LED-1206 | D1 |
| 1 | RED | LED-1206 | D2 |
| 1 | 5V1 | MiniMELF_Standard | D3 |
| 1 | 15nH | Choke_SMD_1206_Standard | L1 |
| 1 | 47u/25V | TantalC_SizeD_EIA-7343_HandSoldering | C1 |
| 6 | 100n/50V | C_0805_HandSoldering | C2, C5, C6, C7, C8, C9 |
| 1 | 1uf/10V | C_0805_HandSoldering | C3 |
| 1 | 4u7/10V | C_1206_HandSoldering | C4 |
| 2 | 1u/16V | C_0805_HandSoldering | C10, C11 |
| 2 | 22 | C_0805_HandSoldering | C12, C13 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2k7(3k3) | R_0805_HandSoldering | R1 |
| 1 | 1M | R_0805_HandSoldering | R2 |
| 1 | 27R | R_0805_HandSoldering | R3 |
| 2 | 470 | R_0805_HandSoldering | R4, R5 |
| 1 | 6k8 | R_0805_HandSoldering | R6 |
| 1 | 4k7 | R_0805_HandSoldering | R7 |
| 2 | 10k | R_0805_HandSoldering | R8, R9 |
Fordacp design files
The KiCad project lives in the tomaskovacik/fordacp repository on GitHub; these links point at the commit this page was built from.
- Layouthw/fordacp.kicad_pcb
Fordacp: common questions
What microcontroller does the Fordacp use?
The Fordacp is built around the ATMEGA2560-A, from the AVR/Arduino family.
How big is the Fordacp PCB?
The Fordacp measures 39.7 × 28.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fordacp?
36 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the Fordacp design files?
From the tomaskovacik/fordacp repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Fordacp design in my own project?
The repository has no license, so all rights stay with tomaskovacik. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Fordacp without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
