F-3188 CSR8645 breadbord Adapter

tomaskovacik·hw·kicad/F-3188_CSR8645_breadbord_Adapter/F-3188_CSR8645_breadbord_Adapter.kicad_pcb

F-3188 CSR8645 breadbord Adapter PCB layout, top view — open source board by tomaskovacik

About the F-3188 CSR8645 breadbord Adapter PCB

F-3188 CSR8645 breadbord Adapter is an open source PCB design by tomaskovacik, published on GitHub under the Custom license license. It is a 2-layer board measuring 26.9 × 74.7 mm, with 32 components from 21 distinct parts.

Other key parts include the F-3188_CSR8645 and MIC. By type, the board carries 9 resistors, 7 diodes, 6 switches, 4 connectors, 3 capacitors and 2 ICs.

From the project

HW (pcb, schematics etc) for my projects

Breadboard adapter for F-3188 ----------------------------- Breadboard adapter for F-3188 bluetooth audio module from ebay/aliexpress (search for F-3188) based on CSR8645 chip.

v2: - buttons for PLAY, NEXT, PREVIOUS, VOLUME UP and DOWN - 3th led - usb microusb + protection circute - microphone support circute

v1: - reset + MFB button (based on schematics provided for module, this should be button, but based on tests it should be switch, solder jumper is on board to bypass button) - 3.5mm jack for audio output - indication leds

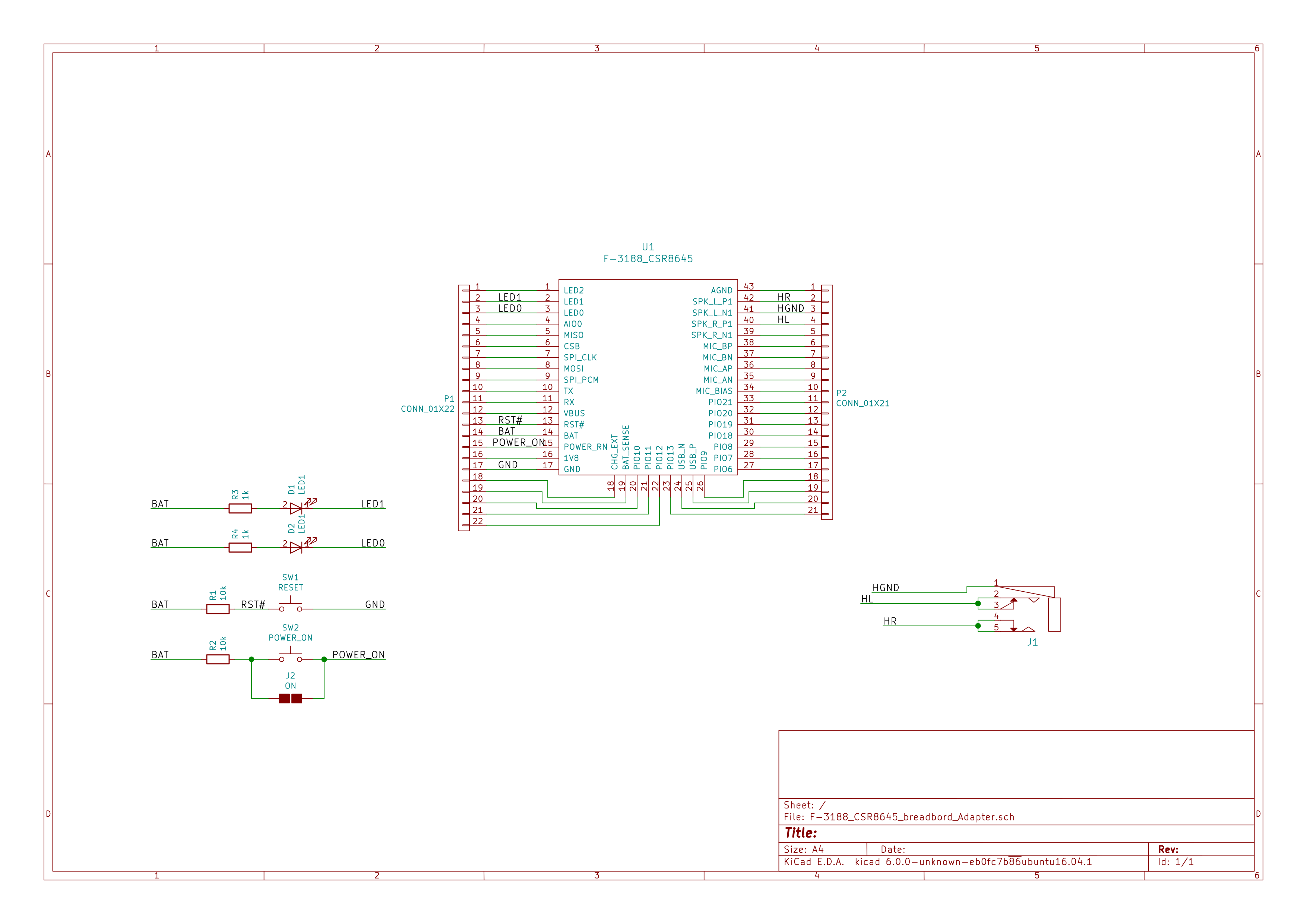

F-3188 CSR8645 breadbord Adapter, from the project README — From the project README

Main components on the F-3188 CSR8645 breadbord Adapter

F-3188_CSR8645 MIC

F-3188 CSR8645 breadbord Adapter bill of materials (BOM)

32 components, 21 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	F-3188_CSR8645	F-3188_CSR8645_no_silk_under_antena	U1
1	MIC	3.5mm_stereo_jack_PJ320B	U2
1	SCJ368R1NUS0B00G	3.5mm_stereo_jack_PJ306M	J1
1	USB_B_Micro	USB_Micro-B	J2
1	CONN_01X22	Pin_Header_Straight_1x22	P1
1	CONN_01X21	Pin_Header_Straight_1x21	P2
1	RESET	SW_SPST_FSMSM	SW1
1	VOL+	SW_SPST_FSMSM	SW2
1	VOL-	SW_SPST_FSMSM	SW3
1	NEXt	SW_SPST_FSMSM	SW4
1	PREV	SW_SPST_FSMSM	SW5
1	PLAY	SW_SPST_FSMSM	SW6
3	LED1	LED_1206_HandSoldering	D1, D2, D6
3	MLC-05E	R_0603_HandSoldering	D3, D4, D5
1	1N4448	D_SOD-323_HandSoldering	D7
1	15nH	Choke_SMD_1206_Handsoldering	L1
2	100n	C_0805_HandSoldering	C1, C2
1	15p	C_0805_HandSoldering	C3
4	10k	R_0805_HandSoldering	R1, R2, R5, R6
3	1k	R_0805_HandSoldering	R3, R4, R9

Show 1 more

Qty	Part	Footprint	Refs
2	20	R_0805_HandSoldering	R7, R8

F-3188 CSR8645 breadbord Adapter design files

The KiCad project lives in the tomaskovacik/hw repository on GitHub; these links point at the commit this page was built from.

F-3188 CSR8645 breadbord Adapter: common questions

How big is the F-3188 CSR8645 breadbord Adapter PCB?

The F-3188 CSR8645 breadbord Adapter measures 26.9 × 74.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the F-3188 CSR8645 breadbord Adapter?

32 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the F-3188 CSR8645 breadbord Adapter design files?

From the tomaskovacik/hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the F-3188 CSR8645 breadbord Adapter design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
