Ardpicprog smd

tomaskovacik·hw·kicad/ardpicprog/ardpicprog_smd.kicad_pcb

Ardpicprog smd PCB layout, top view — open source PIC board by tomaskovacik
Simulate this board

About the Ardpicprog smd PCB

Ardpicprog smd is an open source PIC PCB design by tomaskovacik, published on GitHub under the Custom license license. It is a 2-layer board measuring 69.2 × 54 mm, with 33 components from 28 distinct parts.

Its main chip is the PIC16F627, from the PIC family. Other key parts include the MC34063 and LM78L12ACZ. By type, the board carries 11 resistors, 7 capacitors, 5 diodes, 3 ICs, 2 connectors and 1 transistor.

From the project

HW (pcb, schematics etc) for my projects

arduino shield board for http://rweather.github.io/ardpicprog/

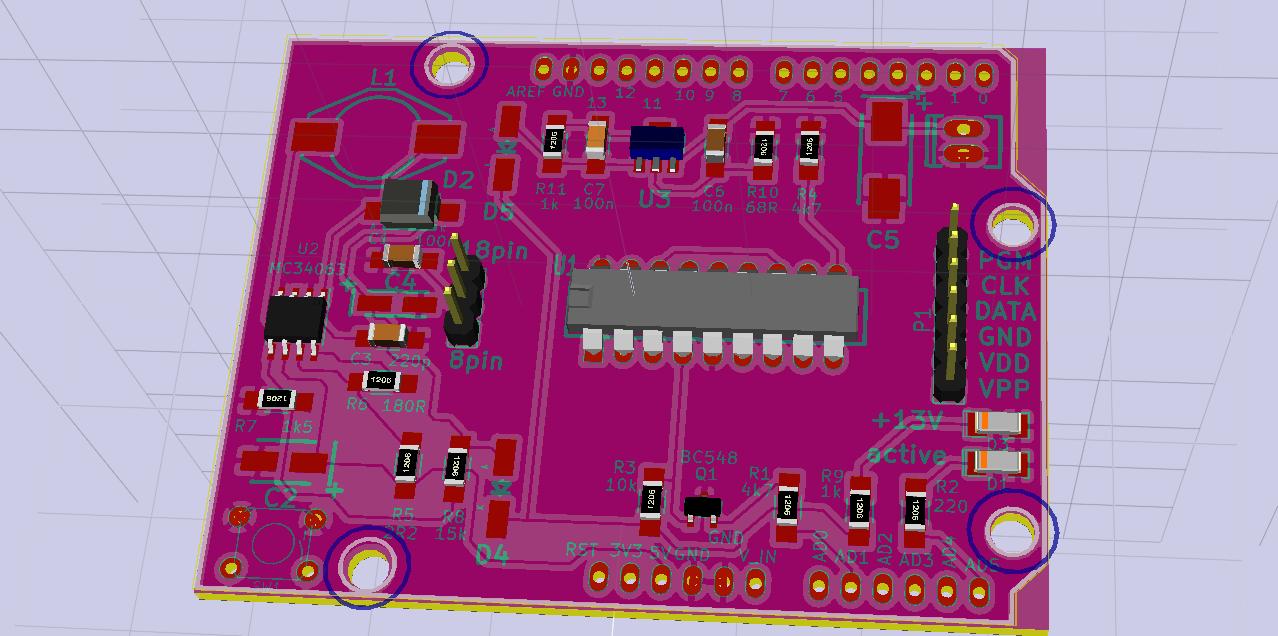

Ardpicprog smd, from the project README
From the project README

Main components on the Ardpicprog smd

PIC16F627MC34063LM78L12ACZ

Ardpicprog smd bill of materials (BOM)

33 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PIC16F627
U1
1
MC34063
U2
1
LM78L12ACZ
U3
1
BC548
Q1
1
CONN_01X06
P1
1
CONN_01X02
P2
1
JUMPER3
JP1
1
ARDUINO_SHIELD
SHIELD1
1
SW_PUSH
SW1
1
LED yellow
D1
1
1N5819
D2
1
LED red
D3
2
DIODE
D4, D5
1
220uH
L1
3
100n
C1, C6, C7
1
10m/6,3V
C2
1
220p
C3
1
10m/16V
C4
1
33m/35V
C5
2
4k7
R1, R4
Show 8 more
QtyPartRefs
1
220
R2
1
10k
R3
1
2R2
R5
1
180R
R6
1
1k5
R7
1
15k
R8
2
1k
R9, R11
1
68R
R10

Ardpicprog smd design files

The KiCad project lives in the tomaskovacik/hw repository on GitHub; these links point at the commit this page was built from.

Ardpicprog smd: common questions

What microcontroller does the Ardpicprog smd use?

The Ardpicprog smd is built around the PIC16F627, from the PIC family.

How big is the Ardpicprog smd PCB?

The Ardpicprog smd measures 69.2 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ardpicprog smd?

33 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ardpicprog smd design files?

From the tomaskovacik/hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Ardpicprog smd design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Ardpicprog smd without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
