About the Cf deck carrier PCB
Cf deck carrier is an open source PCB design by tomvand, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 33 × 28 mm, with 20 components from 17 distinct parts.
Other key parts include the C50088, C129522 and C124886. By type, the board carries 8 connectors, 5 capacitors, 3 ICs, 3 resistors and 1 switch.
It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.
From the project

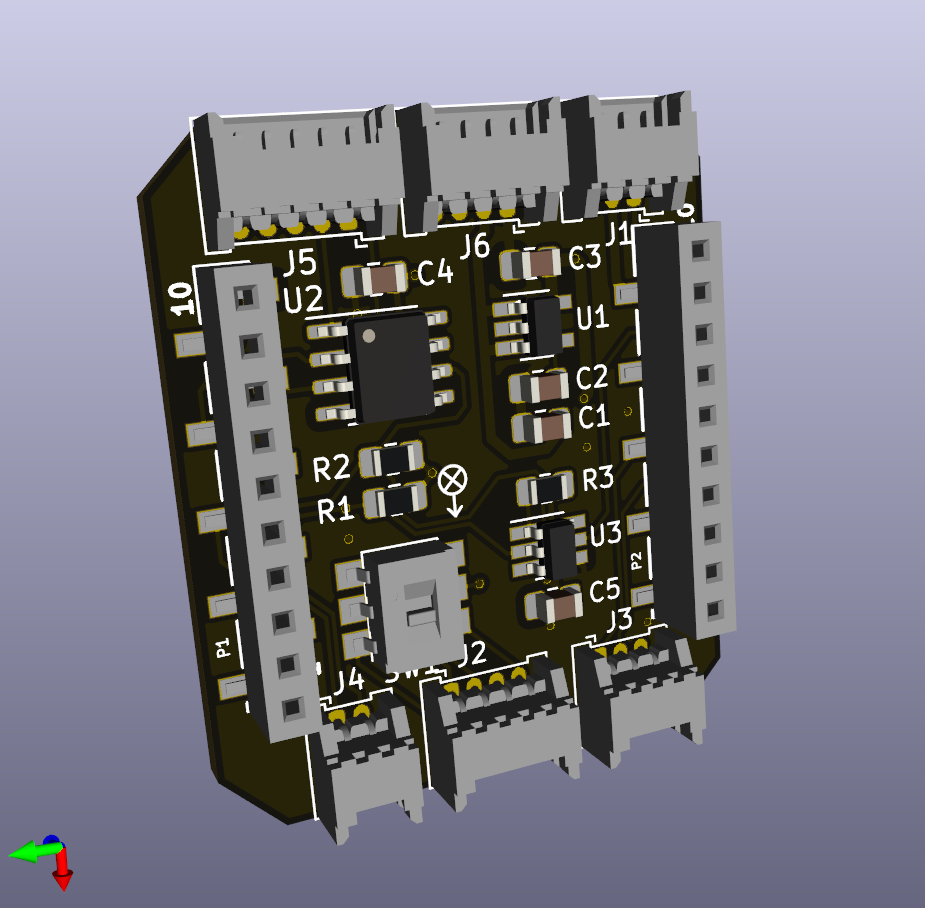

Carrier board for Bitcraze Crazyflie decks
This carrier board lets the Crazyflie 2 decks by Bitcraze AB be carried by other drones. The board functions similarly to a breakout board but with additional functions. The board is originally designed for the Eachine Trashcan, but may also be useful for other drones.
Nearly all of the features on this carrier board are optional, unused components can be left out to save weight and assembly time. Refer to the optional features section below to check which components should be installed for your application.

Main components on the Cf deck carrier
Cf deck carrier bill of materials (BOM)
20 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C50088 LP2985-3.0 | SOT-23-5_HandSoldering | U1 |
| 1 | C129522 PCA9536D | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | C124886 DS2484 | SOT-23-6_Handsoldering | U3 |
| 1 | PWR | Molex_PicoBlade_53048-0310_1x03_P1.25mm_Horizontal_3D | J1 |
| 1 | UART | Molex_PicoBlade_53048-0410_1x04_P1.25mm_Horizontal_3D | J2 |
| 1 | SPI | Molex_PicoBlade_53048-0310_1x03_P1.25mm_Horizontal_3D | J3 |
| 1 | I2C | Molex_PicoBlade_53048-0210_1x02_P1.25mm_Horizontal_3D | J4 |
| 1 | IO | Molex_PicoBlade_53048-0510_1x05_P1.25mm_Horizontal_3D | J5 |
| 1 | UART_AUX | Molex_PicoBlade_53048-0410_1x04_P1.25mm_Horizontal_3D | J6 |
| 1 | CF_EXP_LEFT | CF2-DECK-SMD-HOLES | P1 |
| 1 | CF_EXP_RIGHT | CF2-DECK-SMD-HOLES | P2 |
| 1 | CAS-220 | CAS-220B-wide-pads | SW1 |
| 1 | C28323 1uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 1 | C1710 10nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2 |
| 1 | C1779 4.7uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C3 |
| 2 | C49678 0.1uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4, C5 |
| 3 | C17520 2.2k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R2, R3 |
Cf deck carrier design files
The KiCad project lives in the tomvand/cf-deck-carrier repository on GitHub; these links point at the commit this page was built from.
Cf deck carrier: common questions
How big is the Cf deck carrier PCB?
The Cf deck carrier measures 33 × 28 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Cf deck carrier?
20 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cf deck carrier design files?
From the tomvand/cf-deck-carrier repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Cf deck carrier design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which tomvand chose for the repository.
