Coonix
About the Coonix PCB
Coonix is an open source PCB design by TreeNewbeer, published on GitHub. It is a 2-layer board measuring 95 × 85 mm, with 164 components from 59 distinct parts.
Other key parts include the NUC980DK, IP101GR, W25N01GV, EA3036 and MAX485E. By type, the board carries 68 capacitors, 53 resistors, 12 connectors, 11 inductors, 6 ICs and 5 switches.
From the project

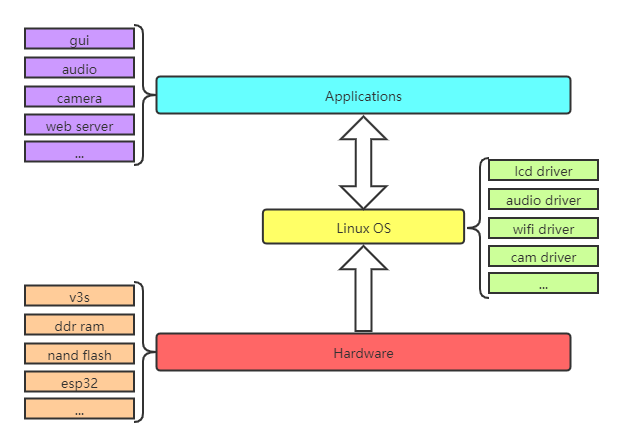

Coonix is a funny project about building a application platform in Allwinner-v3s processor.
Coonix is a funny project about building a application platform in Allwinner-v3s processor or nuvoton nuc980 processor.
If you are pleased with this project, give me Star rather than coffee:)
Main components on the Coonix
Coonix bill of materials (BOM)
164 components, 59 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NUC980DK | LQFP-128_14x14mm_P0.4mm | U201 |
| 1 | IP101GR | QFN-32-1EP_4x4mm_P0.4mm_EP2.65x2.65mm | U202 |
| 1 | W25N01GV | Mi | U401 |
| 1 | EA3036 | QFN-20-1EP_3x3mm_P0.4mm_EP1.65x1.65mm | U701 |
| 1 | MAX485E | SOIC-8_3.9x4.9mm_P1.27mm | U1001 |
| 1 | SN65HVD232 | SOIC-8_3.9x4.9mm_P1.27mm | U1101 |
| 1 | MMBT3904 | SOT-23 | Q701 |
| 1 | 25MHZ 25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y201 |
| 1 | 32.768KHZ 32.768KHz | Crystal_DS26_D2.0mm_L6.0mm_Horizontal | Y701 |
| 1 | 12MHZ 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y702 |
| 1 | 8P8C_LED_SHIELDED 8P8C_LED_Shielded | RJ45_Amphenol_RJHSE538X | J201 |
| 1 | USB_A | USB_A_Stewart_SS-52100-001_Horizontal | J301 |
| 1 | USB_C_Receptacle | USB_C_Receptacle_Palconn_UTC16-G | J302 |
| 1 | POWER | PhoenixContact_MC_1,5_2-G-5.08_1x02_P5.08mm_Horizontal | J303 |
| 1 | Micro_SD_Card | MicroSD | J501 |
| 2 | CONN_01X10 Conn_01x10 | Molex_PicoBlade_53048-1010_1x10_P1.25mm_Horizontal | J601, J901 |
| 1 | Debug_UART | PinSocket_1x03_P2.54mm_Vertical | J701 |
| 1 | JTAG | Molex_PicoBlade_53048-0810_1x08_P1.25mm_Horizontal | J702 |
| 1 | AC1583 | PinHeader_2x20_P2.54mm_Vertical | J801 |
| 1 | CONN_01X05 Conn_01x05 | PhoenixContact_MC_1,5_5-G-3.81_1x05_P3.81mm_Horizontal | J1001 |
Show 39 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X02 Conn_01x02 | PhoenixContact_MC_1,5_2-G-3.81_1x02_P3.81mm_Horizontal | J1101 |
| 1 | RESET | SW_DIP_SPSTx01_Slide_Copal_CHS-01A_W5.08mm_P1.27mm_JPin | SW701 |
| 1 | SW_DIP_X04 SW_DIP_x04 | SW_DIP_SPSTx04_Piano_10.8x11.72mm_W7.62mm_P2.54mm | SW702 |
| 3 | SW_Push | SW_DIP_SPSTx01_Slide_Copal_CHS-01A_W5.08mm_P1.27mm_JPin | SW1201, SW1202, SW1203 |
| 1 | PT61017PEL | Transformer_Ethernet_Bourns_PT61017PEL | TR201 |
| 2 | GREEN | LED_0603_1608Metric | D301, D1202 |
| 1 | SS14 | D_SMA | D302 |
| 1 | RED | LED_0603_1608Metric | D1201 |
| 8 | 120R | L_0805_2012Metric | FB201, FB202, FB501, FB701, FB702, FB703, FB704, FB705 |
| 3 | 2.2uH 1.5A | L_Taiyo-Yuden_NR-30xx | L701, L702, L703 |
| 2 | 0.01UF/2KV 0.01uF/2KV | C_1812_4532Metric | C201, C202 |
| 5 | 0.01UF 0.01uF | C_0603_1608Metric | C203, C205, C207, C303, C304 |
| 26 | 0.1UF 0.1uF | C_0603_1608Metric | C204, C206, C208, C212, C213, C305, C402, C501 +18 |
| 2 | 30PF 30pF | C_0603_1608Metric | C209, C214 |
| 22 | 10UF 10uF | C_0805_2012Metric | C210, C211, C301, C302, C306, C401, C502, C707 +14 |
| 4 | 15PF 15pF | C_0603_1608Metric | C701, C702, C704, C705 |
| 1 | 1NF 1nF | C_0603_1608Metric | C703 |
| 3 | 1UF 1uF | C_0603_1608Metric | C706, C709, C712 |
| 3 | 18PF 18pF | C_0603_1608Metric | C732, C733, C734 |
| 2 | 330R | R_0603_1608Metric | R201, R204 |
| 7 | 5.1K | R_0603_1608Metric | R202, R203, R212, R213, R214, R305, R306 |
| 3 | 10K | R_0603_1608Metric | R205, R211, R307 |
| 5 | 0R | R_0603_1608Metric | R206, R401, R501, R704, R713 |
| 4 | 75R | R_0603_1608Metric | R207, R208, R209, R210 |
| 1 | 6.19K | R_0603_1608Metric | R215 |
| 1 | 1M | R_0603_1608Metric | R216 |
| 4 | 22R | R_0603_1608Metric | R301, R302, R303, R304 |
| 1 | 20K | R_0603_1608Metric | R308 |
| 1 | 39K | R_0603_1608Metric | R309 |
| 1 | 470R | R_0603_1608Metric | R701 |
| 2 | 12.1K | R_0603_1608Metric | R702, R703 |
| 5 | 100K | R_0603_1608Metric | R705, R706, R707, R708, R710 |
| 1 | 200K | R_0603_1608Metric | R709 |
| 1 | 68K | R_0603_1608Metric | R711 |
| 1 | 15K | R_0603_1608Metric | R712 |
| 4 | NC | R_0603_1608Metric | R718, R719, R720, R721 |
| 2 | 120R | R_0603_1608Metric | R1001, R1101 |
| 2 | 4.7K | R_0603_1608Metric | R1201, R1202 |
| 5 | 10KX4 10Kx4 | R_Array_Convex_4x0603 | RN401, RN501, RN502, RN701, RN1201 |
Coonix design files
The KiCad project lives in the TreeNewbeer/Coonix repository on GitHub; these links point at the commit this page was built from.
Coonix: common questions
How big is the Coonix PCB?
The Coonix measures 95 × 85 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Coonix?
164 components, from 59 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Coonix design files?
From the TreeNewbeer/Coonix repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Coonix design in my own project?
The repository has no license, so all rights stay with TreeNewbeer. Use it as a reference, and ask the author before reusing the design.
