Rv1106g2
About the Rv1106g2 PCB

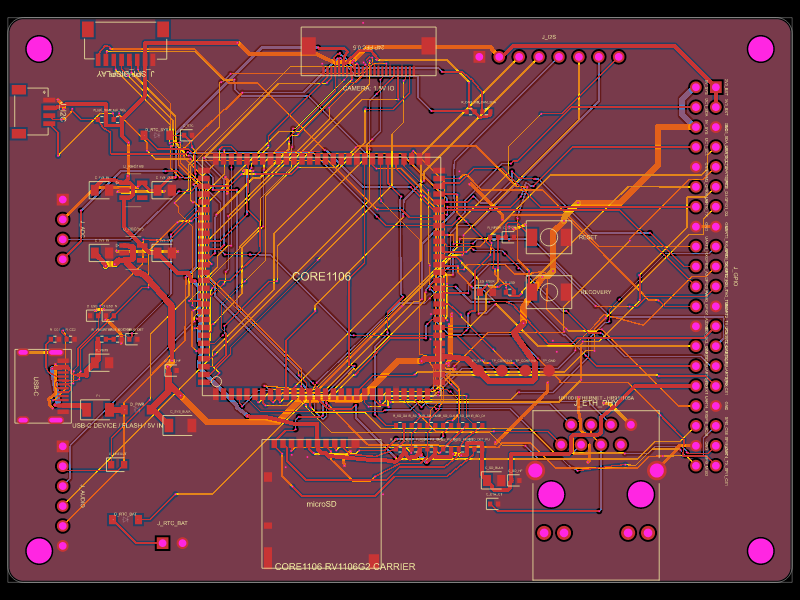

Rv1106g2 is an open source PCB design by tscircuit, published on GitHub. It is a 4-layer board measuring 100 × 72 mm, with 24 components from 13 distinct parts.
By type, the board carries 12 resistors, 4 capacitors and 1 fuse.
It belongs with the power & battery and dev boards & breakouts designs in this gallery.
From the project
Four-layer tscircuit carrier board for Luckfox Core1106 RV1106G2 and RV1106G3 modules
This project is a four-layer, 100 mm × 72 mm tscircuit carrier for the 30 mm Luckfox Core1106 module. It targets the Core11060208 (RV1106G2, 128 MB DDR3L) and uses the official 112-pad module footprint and pin assignment. The related Core11061208, Core11060408, and Core11061408 variants use the same Core1106 family form factor; confirm wireless/antenna requirements and the intended software image before substitution.
Rv1106g2 bill of materials (BOM)
24 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | F1 | fuse_1206 | F1 |
| 1 | J_I2C | SM04B-SRSS-TB(LF)(SN) | J_I2C |
| 1 | J_I2S | pin_header_pinrow8_nopinlabels | J_I2S |
| 1 | TP_CORE1V8 | test_point_smtpad_circle_d1.5 | TP_CORE1V8 |
| 1 | TP_CORE3V3 | test_point_smtpad_circle_d1.5 | TP_CORE3V3 |
| 1 | TP_SYS5 | test_point_smtpad_circle_d1.5 | TP_SYS5 |
| 1 | AP2112K-1.8 | AP2112K-1.8 | U_REG1V8 |
| 1 | AP2112K-3.3 | AP2112K-3.3 | U_REG3V3 |
| 4 | 10uF | capacitor_cap0805 | C_1V8_IN, C_1V8_OUT, C_3V3_IN, C_3V3_OUT |
| 2 | 5.1kΩ | resistor_res0402 | R_CC1, R_CC2 |
| 2 | 4.7kΩ | resistor_res0402 | R_I2C_SCL, R_I2C_SDA |
| 4 | 22Ω | resistor_res0402 | R_SD_D0, R_SD_D1, R_SD_D2, R_SD_D3 |
| 4 | 47kΩ | resistor_res0402 | R_SD_PU_D0, R_SD_PU_D1, R_SD_PU_D2, R_SD_PU_D3 |
Rv1106g2 design files
The KiCad project lives in the tscircuit/rv1106g2 repository on GitHub; these links point at the commit this page was built from.
Rv1106g2: common questions
How big is the Rv1106g2 PCB?
The Rv1106g2 measures 100 × 72 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Rv1106g2?
24 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rv1106g2 design files?
From the tscircuit/rv1106g2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rv1106g2 design in my own project?
The repository has no license, so all rights stay with tscircuit. Use it as a reference, and ask the author before reusing the design.
