Rv1106g2-breakout
About the Rv1106g2-breakout
Rv1106g2-breakout is an open source PCB design by tscircuit, published on GitHub. It is a 4-layer board measuring 100 × 72 mm, with 24 components from 13 distinct parts.
By type, the board carries 12 resistors, 4 capacitors and 1 fuse.
It belongs with the dev boards & breakouts and power & battery designs in this gallery.
From the project

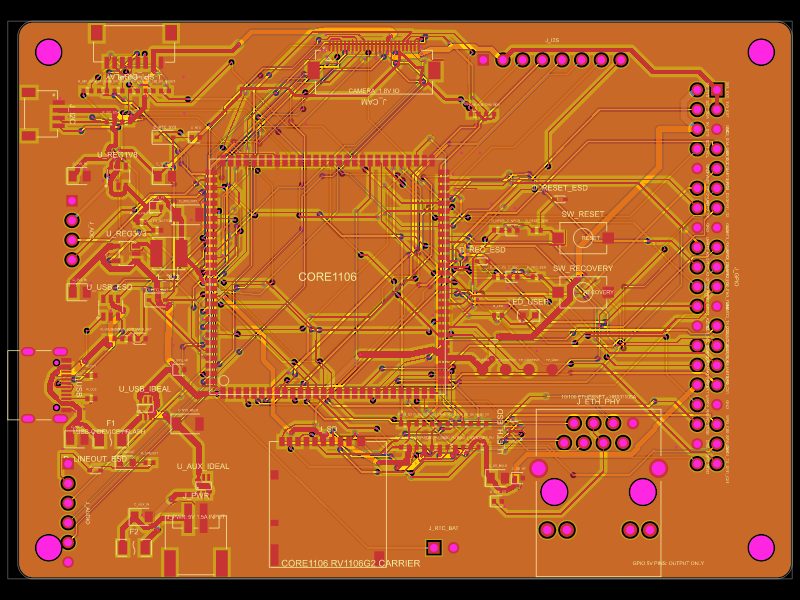

Four-layer tscircuit breakout and carrier board for Luckfox Core1106 RV1106G2 and RV1106G3 modules
This project is a four-layer, 100 mm × 72 mm tscircuit carrier for the 30 mm Luckfox Core1106 module. It targets the Core11060208 (RV1106G2, 128 MB DDR3L) and uses the official 112-pad module footprint and pin assignment. The related Core11061208, Core11060408, and Core11061408 variants use the same Core1106 family form factor; confirm wireless/antenna requirements and the intended software image before substitution.
Rv1106g2-breakout bill of materials (BOM)
24 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | F1 | fuse_1206 | F1 |
| 1 | J_I2C | SM04B-SRSS-TB(LF)(SN) | J_I2C |
| 1 | J_I2S | pin_header_pinrow8_nopinlabels | J_I2S |
| 1 | TP_CORE1V8 | test_point_smtpad_circle_d1.5 | TP_CORE1V8 |
| 1 | TP_CORE3V3 | test_point_smtpad_circle_d1.5 | TP_CORE3V3 |
| 1 | TP_SYS5 | test_point_smtpad_circle_d1.5 | TP_SYS5 |
| 1 | AP2112K-1.8 | AP2112K-1.8 | U_REG1V8 |
| 1 | AP2112K-3.3 | AP2112K-3.3 | U_REG3V3 |
| 4 | 10uF | capacitor_cap0805 | C_1V8_IN, C_1V8_OUT, C_3V3_IN, C_3V3_OUT |
| 2 | 5.1kΩ | resistor_res0402 | R_CC1, R_CC2 |
| 2 | 4.7kΩ | resistor_res0402 | R_I2C_SCL, R_I2C_SDA |
| 4 | 22Ω | resistor_res0402 | R_SD_D0, R_SD_D1, R_SD_D2, R_SD_D3 |
| 4 | 47kΩ | resistor_res0402 | R_SD_PU_D0, R_SD_PU_D1, R_SD_PU_D2, R_SD_PU_D3 |
Rv1106g2-breakout design files
The KiCad project lives in the tscircuit/rv1106g2-breakout repository on GitHub; these links point at the commit this page was built from.
Rv1106g2-breakout: common questions
How big is the Rv1106g2-breakout?
The Rv1106g2-breakout measures 100 × 72 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Rv1106g2-breakout?
24 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rv1106g2-breakout design files?
From the tscircuit/rv1106g2-breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rv1106g2-breakout design in my own project?
The repository has no license, so all rights stay with tscircuit. Use it as a reference, and ask the author before reusing the design.
