About the ClassicControllerPico PCB

ClassicControllerPico is an open source RP2040/RP2350 PCB design by tt3333, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30.5 × 63.5 mm, with 8 components from 7 distinct parts.

Its main chip is the Raspberry Pi Pico, from the RP2040/RP2350 family. By type, the board carries 4 connectors, 2 resistors, 1 IC and 1 diode.

From the project

Classic Controller Pico is a program that allows Raspberry Pi Pico to be recognized as Wii classic controller.

This project is based off of the Wii RetroPad Adapter project by Bruno Freitas. The license for this project follows the license for the Wii RetroPad adapter.

WiiU (via Wii Remote) SNES Classic Edition ELECOM JC-W01UWH Columbus Circle CC-NSSCV-RD * Controller Converter for Switch

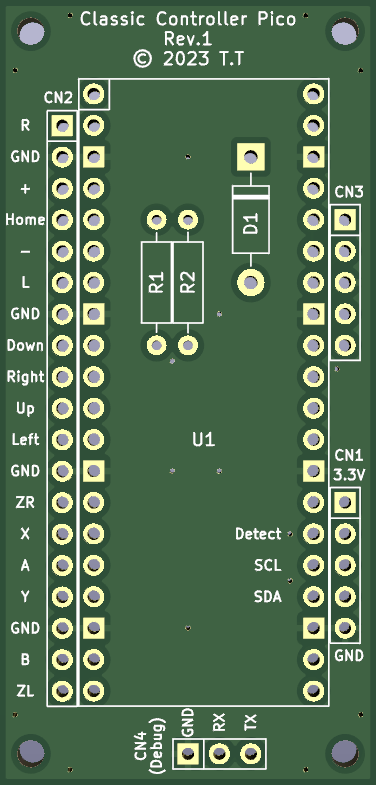

ClassicControllerPico, from the project README — From the project README

Main components on the ClassicControllerPico

Raspberry Pi Pico

ClassicControllerPico bill of materials (BOM)

8 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	Raspberry Pi Pico	RPi_Pico_SMD_TH	U1
1	Wii Remote	PinHeader_1x05_P2.54mm_Vertical	CN1
1	Buttons	PinHeader_1x19_P2.54mm_Vertical	CN2
1	Analog Stick	PinHeader_1x05_P2.54mm_Vertical	CN3
1	UART (for Debug)	PinHeader_1x03_P2.54mm_Vertical	CN4
1	1N5819	D_DO-41_SOD81_P10.16mm_Horizontal	D1
2	2K	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R1, R2

ClassicControllerPico design files

The KiCad project lives in the tt3333/ClassicControllerPico repository on GitHub; these links point at the commit this page was built from.

LayoutKiCad/ClassicControllerPico.kicad_pcb
SchematicKiCad/ClassicControllerPico.kicad_sch

ClassicControllerPico: common questions

What microcontroller does the ClassicControllerPico use?

The ClassicControllerPico is built around the Raspberry Pi Pico, from the RP2040/RP2350 family.

How big is the ClassicControllerPico PCB?

The ClassicControllerPico measures 30.5 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ClassicControllerPico?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the ClassicControllerPico design files?

From the tt3333/ClassicControllerPico repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ClassicControllerPico design in my own project?

Yes, under the terms of its GPL-3.0 license, which tt3333 chose for the repository.

Can I test firmware for the ClassicControllerPico without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
