MIDI Output Breakout Board

TuDo-Makerspace·MIDI-Breakouts·MIDI_OUT/MIDI_OUT.kicad_pcb

MIDI Output Breakout Board layout, top view — open source board by TuDo-Makerspace
Simulate this board

About the MIDI Output Breakout Board

MIDI Output Breakout Board is an open source PCB design by TuDo-Makerspace, published on GitHub. It is a 2-layer board measuring 20.3 × 50.9 mm, with 11 components from 8 distinct parts.

By type, the board carries 6 resistors, 2 transistors, 2 connectors and 1 switch.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

Just another pair of MIDI breakouts

- Overview & Background - Noteworthy Features - Schematics - MIDI IN - MIDI OUT - Ordering - Parts & Assembly - Pictures - License

This repository contains the KiCad files for a pair of MIDI breakout boards. There isn't anything particularly special about them, besides perhaps the fact that the MIDI OUT has a switch to select between 3.3V and 5V operation, as well as two BS170 MOSFETs to sink the current, rather than using buffer chips. Oh, and we use JST-XH connectors, because I hate those loose "DuPont" headers that allow you to plug things in the wrong way around! >:(

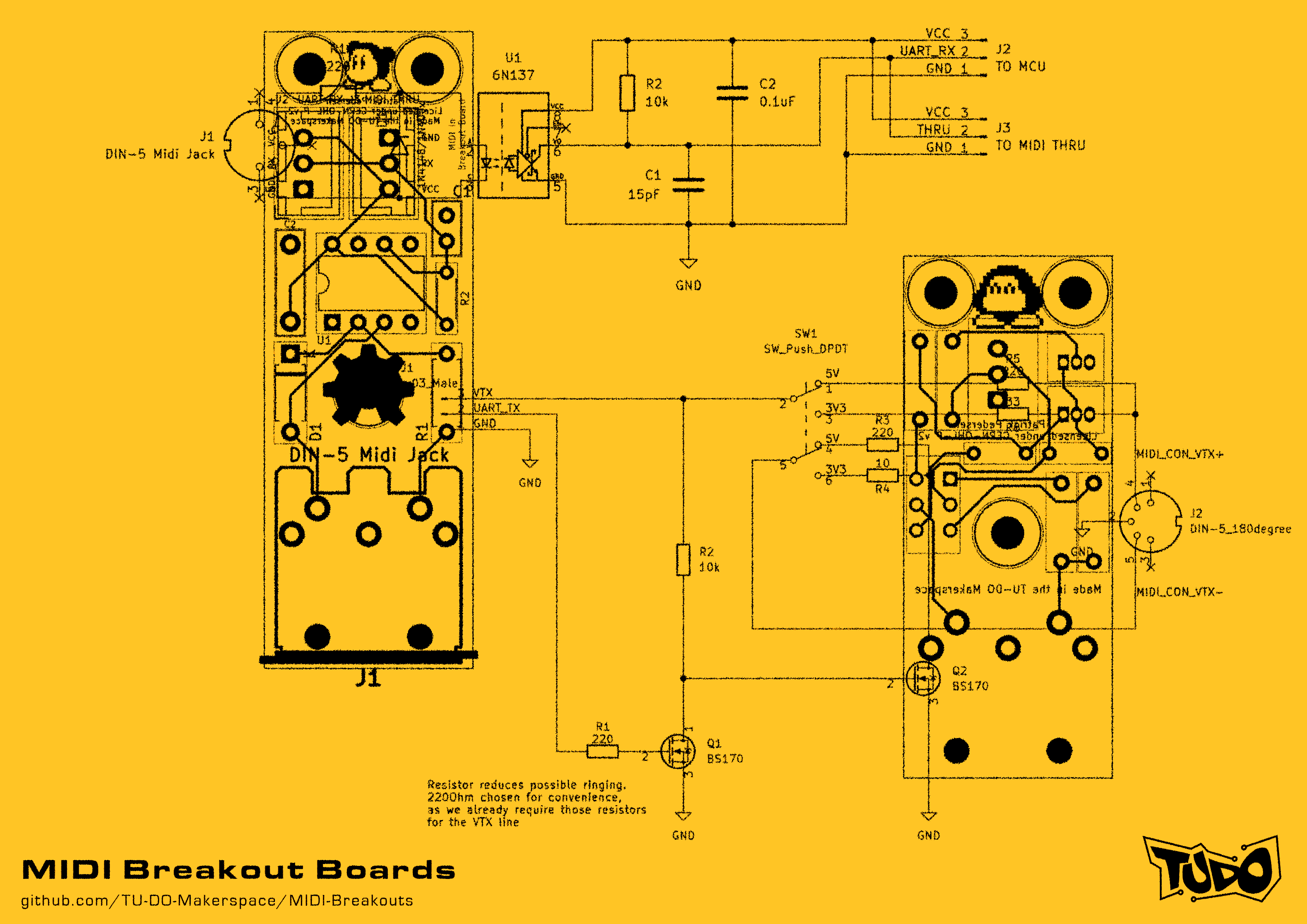

MIDI Output Breakout Board, from the project README
From the project README

MIDI Output Breakout Board bill of materials (BOM)

11 components, 8 distinct parts.

QtyPartRefs
2
BS170
Q1, Q2
1
Conn_01x03_Male
J1
1
DIN-5_180degree
J2
1
SW_Push_DPDT
SW1
3
220
R1, R3, R5
1
10k
R2
1
10
R4
1
33
R6

MIDI Output Breakout Board design files

The KiCad project lives in the TuDo-Makerspace/MIDI-Breakouts repository on GitHub; these links point at the commit this page was built from.

MIDI Output Breakout Board: common questions

How big is the MIDI Output Breakout Board?

The MIDI Output Breakout Board measures 20.3 × 50.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MIDI Output Breakout Board?

11 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the MIDI Output Breakout Board design files?

From the TuDo-Makerspace/MIDI-Breakouts repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MIDI Output Breakout Board design in my own project?

The repository has no license, so all rights stay with TuDo-Makerspace. Use it as a reference, and ask the author before reusing the design.
