3w rgb led driver
About the 3w rgb led driver PCB
3w rgb led driver is an open source PCB design by tunaerray, published on GitHub. It is a 2-layer board measuring 65.1 × 46.1 mm, with 24 components from 9 distinct parts.
Other key parts include the PT4115. By type, the board carries 6 capacitors, 6 resistors, 3 ICs, 3 connectors, 3 diodes and 3 inductors.
It belongs with the robotics & motion designs in this gallery.
From the project

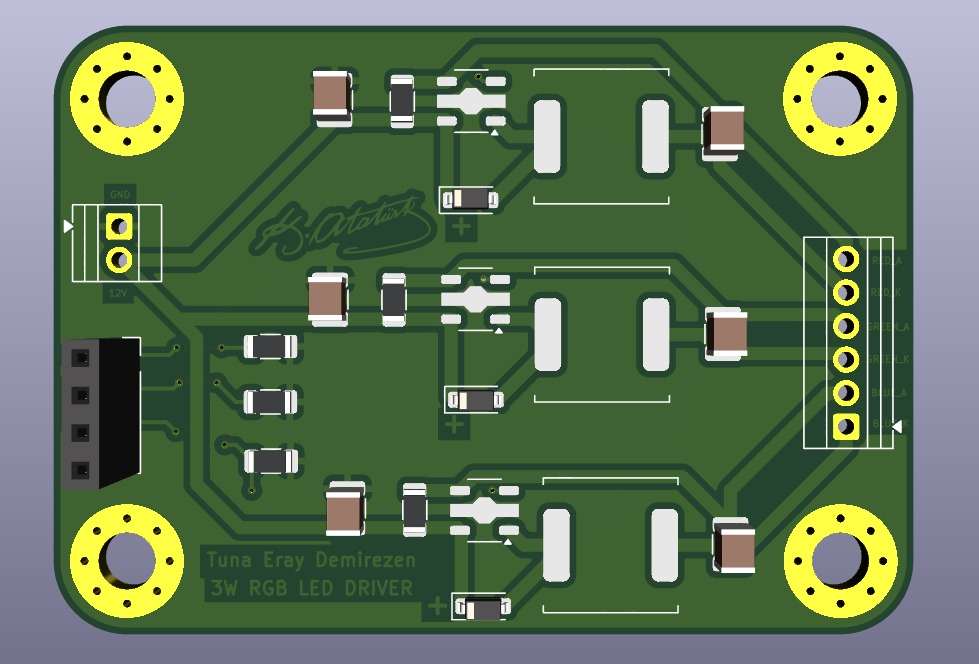

3W RGB LED driver board with PWM dimming for AUV image processing
A custom-designed 3W RGB LED driver board with PWM dimming capability, developed for an Autonomous Underwater Vehicle (AUV).
This board was designed to control the color output of a 3W RGB LED by adjusting each channel independently via PWM signals. The primary purpose is to support the AUV's image processing system by providing tunable, high-intensity underwater illumination.
Main components on the 3w rgb led driver
3w rgb led driver bill of materials (BOM)
24 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | PT4115 | SOT-89-5 | U1, U2, U3 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J1 |
| 1 | SCREW_TERMINAL_01X06 Screw_Terminal_01x06 | TerminalBlock_Phoenix_PT-1,5-6-3.5-H_1x06_P3.50mm_Horizontal | J2 |
| 1 | CONN_01X04 Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | J4 |
| 3 | D_Schottky | D_SOD-123 | D1, D2, D3 |
| 3 | 100UH 100uH | L_SOREDE_SNR.1050_10x10x5mm | L1, L2, L3 |
| 6 | 10UF 10uF | C_1210_3225Metric | C1, C2, C3, C4, C5, C6 |
| 3 | 10K 10k | R_1206_3216Metric | R1, R3, R4 |
| 3 | 0.3 | R_1206_3216Metric | R2, R5, R6 |
3w rgb led driver design files
The KiCad project lives in the tunaerray/3w-rgb-led-driver repository on GitHub; these links point at the commit this page was built from.
- Layoutrgbleddriver.kicad_pcb
- Schematicrgbleddriver.kicad_sch
- BOMrgbleddriver.csv
3w rgb led driver: common questions
How big is the 3w rgb led driver PCB?
The 3w rgb led driver measures 65.1 × 46.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 3w rgb led driver?
24 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 3w rgb led driver design files?
From the tunaerray/3w-rgb-led-driver repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 3w rgb led driver design in my own project?
The repository has no license, so all rights stay with tunaerray. Use it as a reference, and ask the author before reusing the design.
