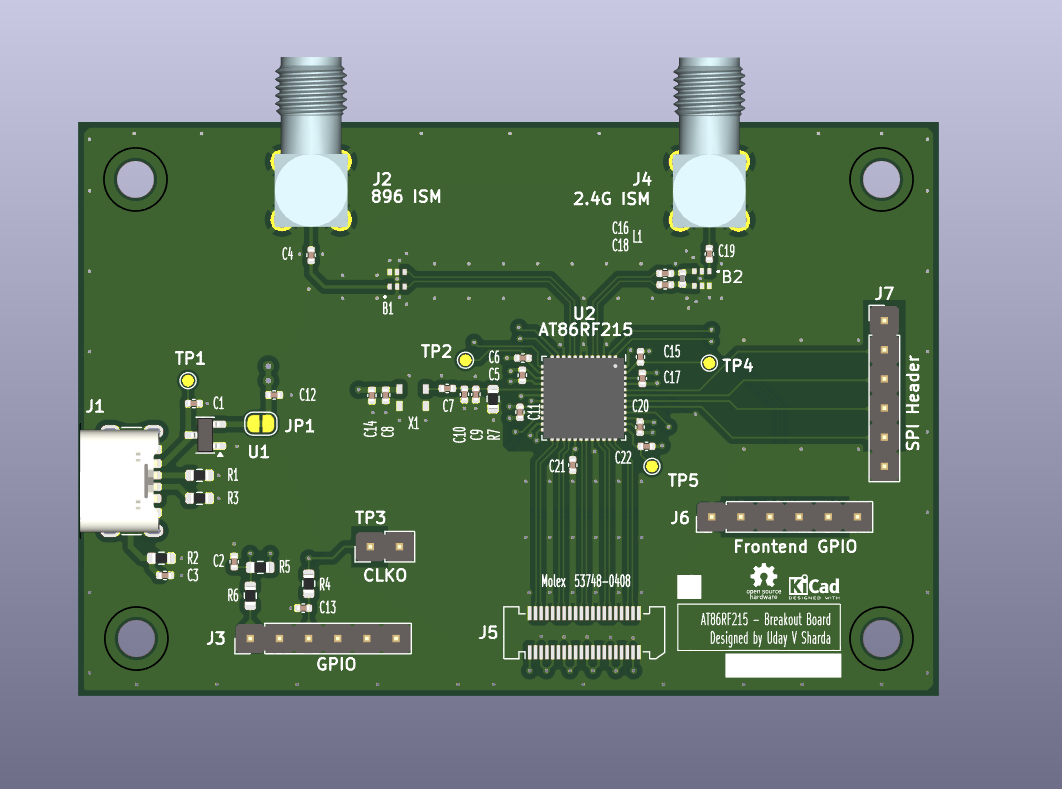

About the AT86RF215-Breakout-Board
AT86RF215-Breakout-Board is an open source PCB design by udayVsSharda, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 75 × 50 mm, with 42 components from 22 distinct parts.
Other key parts include the C5446 and C2151562. By type, the board carries 22 capacitors, 7 resistors, 6 connectors, 2 ICs, 1 crystal and 1 test point.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project
AT86RF215 Breakout Board, Fully integrated radio transceiver covering 389.5-510MHz / 779-1020MHz / 2400-2483.5MHz. It is configured using SPI bus to recieve and transmit simultaneously on the 2.4Ghz ISM and 900Mhz ISM bands. PHY's Supports MR-FSK, MR-OFDM, MR-O-QPSK and O-QPSK. It can be configured for custom protocols using the IQ Interface
Main components on the AT86RF215-Breakout-Board
AT86RF215-Breakout-Board bill of materials (BOM)
42 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C5446 XC6206P332MR-G | SOT-23-3 | U1 |
| 1 | C2151562 AT86RF215 | AT86RF215 | U2 |
| 1 | C409249 7L26002007 | 7L26002007 | X1 |
| 1 | C19274014 USB_C | USB_C_Receptacle_GCT_USB4125-xx-x-0190_6P_TopMnt_Horizontal | J1 |
| 1 | 896 ISM | BWSMA-KE-Z001 | J2 |
| 1 | GPIO | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | 2.4G ISM | BWSMA-KE-Z001 | J4 |
| 1 | Frontend GPIO | PinHeader_1x06_P2.54mm_Vertical | J6 |
| 1 | SPI Header | PinHeader_1x06_P2.54mm_Vertical | J7 |
| 1 | C17271374 0896BM15E0025001E | 0896BM15E0025 | B1 |
| 1 | C17352285 2450FB15A0050001E | 0896BM15E0025 | B2 |
| 1 | CLKO | PinHeader_1x02_P2.54mm_Vertical | TP3 |
| 1 | C576549 5.8nH | L_0402_1005Metric | L1 |
| 6 | C52923 1u | C_0402_1005Metric | C1, C2, C6, C12, C15, C22 |
| 3 | C1548 15p | C_0402_1005Metric | C3, C8, C19 |
| 1 | C88902 0.8p | C_0402_1005Metric | C4 |
| 6 | C307331 100n | C_0402_1005Metric | C5, C11, C14, C17, C20, C21 |
| 1 | C1523 1n | C_0402_1005Metric | C7 |
| 5 | C76903 1.8p | C_0402_1005Metric | C9, C10, C13, C16, C18 |
| 3 | C23186 5.1k | R_0603_1608Metric | R1, R3, R5 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | C22962 220 | R_0603_1608Metric | R2, R4, R6 |
| 1 | C2906982 10k | R_0603_1608Metric | R7 |
AT86RF215-Breakout-Board design files
The KiCad project lives in the udayVsSharda/AT86RF215-Breakout-Board repository on GitHub; these links point at the commit this page was built from.
AT86RF215-Breakout-Board: common questions
How big is the AT86RF215-Breakout-Board?
The AT86RF215-Breakout-Board measures 75 × 50 mm, has 4 copper layers and is 1.5842 mm thick.
How many components are on the AT86RF215-Breakout-Board?
42 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AT86RF215-Breakout-Board design files?
From the udayVsSharda/AT86RF215-Breakout-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AT86RF215-Breakout-Board design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which udayVsSharda chose for the repository.
