UINIO-Monitor
About the UINIO-Monitor PCB
UINIO-Monitor is an open source PCB design by uinika, published on GitHub. It is a 2-layer board measuring 100 × 77.9 mm, with 63 components from 26 distinct parts.
Other key parts include the ME6211 and XC6206PxxxMR. By type, the board carries 19 capacitors, 18 resistors, 10 connectors, 5 ICs and 2 diodes.
It belongs with the displays & leds designs in this gallery.
From the project

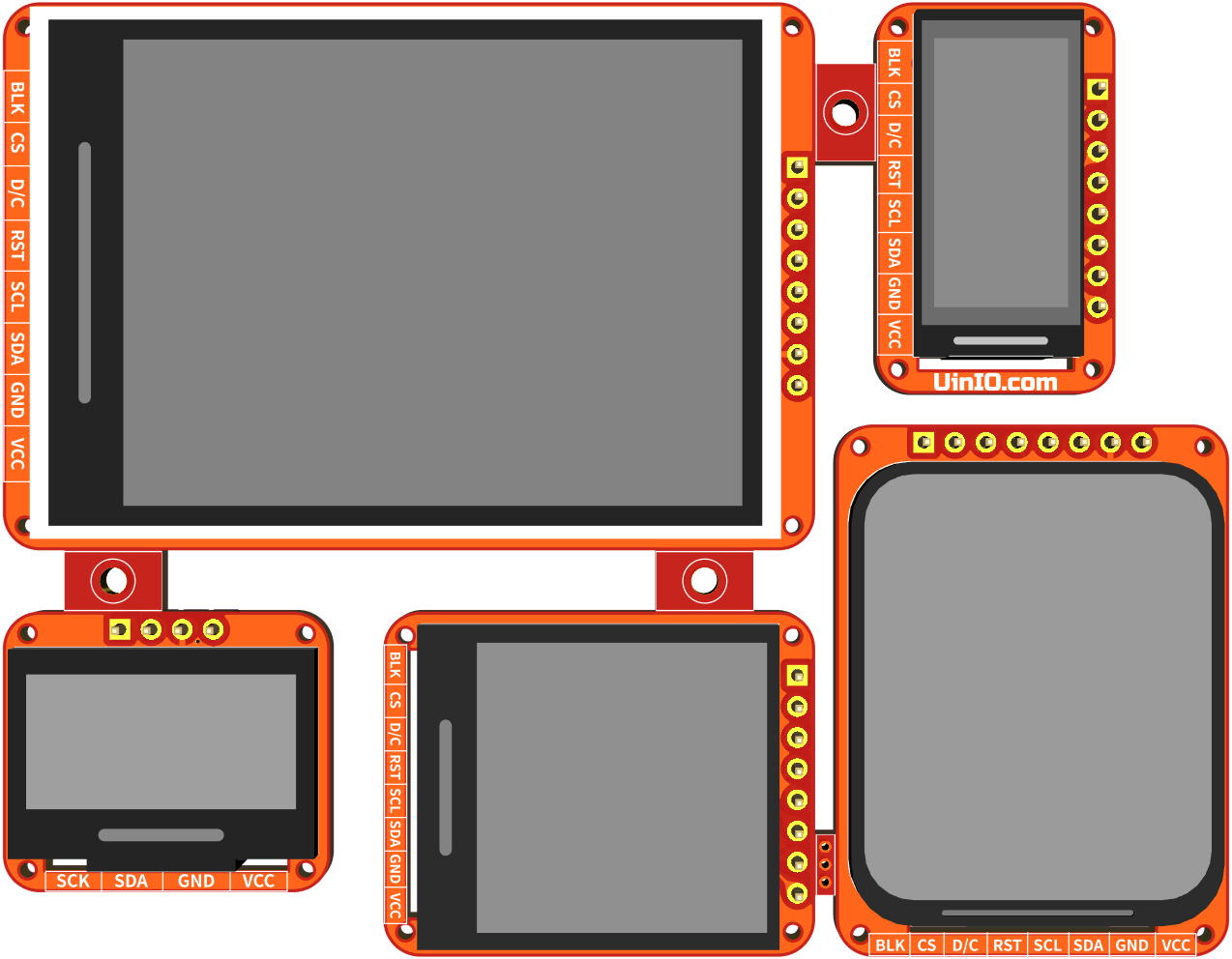

0.96, 1.33, 2.4 inch LCD & OLED Monitor base on ST7789 or SSD1315.
UINIO-Monitor 是一款同时拼接了 0.96 英寸 LCD 显示屏（ST7735，160×80）、0.96 英寸 OLED 显示屏（SSD1315，128×64）、1.3 英寸 LCD 显示屏（ST7789，240×240）、2.4 英寸 LCD 显示屏（ST7789，240×320）、1.69 英寸 LCD 显示屏（ST7789，240×280） 的五合一屏幕驱动电路设计。
1. 采用 FreeCAD 绘制了合理并且美观的板框（长度与宽度均小于或等于 10cmm）； 2. 分别提供有 4 个 1mm 直径螺丝孔，便于安装至其它结构件，快速搭建出产品原型； 3. LCD 屏幕的外接引脚线序全部保持统一，并且重要的丝印信息会同时标注在 PCB 的顶层与底层； 4. PCB 板载 0.5mm 间距的 FPC 柔性排线连接器，同时还引出了 2.54mm 间距的直插排针，便于通过杜邦线快速搭建实验电路； 5. 由于 OLED 屏幕的功耗相对较小，因而采用了 300mA 输出的线性稳压芯片 XC6206P332MR；而功耗相对较大的 LCD 屏幕，则统一采用 ME6211C33M5G-N 线性稳压芯片；
Main components on the UINIO-Monitor
UINIO-Monitor bill of materials (BOM)
63 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | ME6211 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U1, U2, U4, U5 |
| 1 | XC6206PxxxMR | SOT-23-3 | U3 |
| 4 | Conn_01x08_Pin | PinHeader_1x08_P2.54mm_Vertical | J1, J2, J4, J7 |
| 1 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | LCD_Pad_10Pin | LCD_Pad_10Pin | P1 |
| 2 | LCD_Pad_12Pin | LCD_Pad_12Pin | P2, P5 |
| 1 | OLED_Pad_30Pin | OLED_Pad_30Pin | P3 |
| 1 | LCD_Pad_13Pin | LCD_Pad_13Pin | P4 |
| 4 | FPC-SMD_8P-0.5mm | FPC-SMD_8P-P0.5 | FPC1, FPC2, FPC4, FPC7 |
| 1 | FPC-SMD_4P-0.5mm | FPC-SMD_4P-P0.5 | FPC3 |
| 4 | S8050 | SOT-23-3_L2.9-W1.6-P1.90-LS2.9-BL | VT1, VT2, VT3, VT4 |
| 2 | 1N5819 | D_SOD-323F | D1, D2 |
| 9 | 1uF | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C9, C17 +1 |
| 1 | 0.1uF | C_0402_1005Metric | C7 |
| 6 | 1uF | C_0402_1005Metric | C8, C12, C13, C14, C15, C16 |
| 1 | 4.7uF | C_0402_1005Metric | C10 |
| 1 | 2.2uF | C_0402_1005Metric | C11 |
| 1 | 10uF | C_0402_1005Metric | C19 |
| 3 | 1K | R_0603_1608Metric | R1, R3, R15 |
| 3 | 10K | R_0603_1608Metric | R2, R4, R16 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10R | R_0603_1608Metric | R5, R6, R17 |
| 5 | 4.7K | R_0402_1005Metric | R7, R8, R18, R19, R20 |
| 1 | 910K | R_0402_1005Metric | R10 |
| 1 | 10K | R_0402_1005Metric | R11 |
| 1 | 1K | R_0402_1005Metric | R12 |
| 1 | 10R | R_0402_1005Metric | R13 |
UINIO-Monitor design files
The KiCad project lives in the uinika/UINIO-Monitor repository on GitHub; these links point at the commit this page was built from.
- LayoutUINIO-Monitor.kicad_pcb
- SchematicUINIO-Monitor.kicad_sch
UINIO-Monitor: common questions
How big is the UINIO-Monitor PCB?
The UINIO-Monitor measures 100 × 77.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the UINIO-Monitor?
63 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the UINIO-Monitor design files?
From the uinika/UINIO-Monitor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the UINIO-Monitor design in my own project?
The repository has no license, so all rights stay with uinika. Use it as a reference, and ask the author before reusing the design.
