QUarkNano 9250

ukmook·qUark·qUarkNano_9250/qUarkNano_9250.kicad_pcb

QUarkNano 9250 PCB layout, top view — open source STM32 board by ukmook

About the QUarkNano 9250 PCB

QUarkNano 9250 is an open source STM32 PCB design by ukmook, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 21.5 × 30 mm, with 60 components from 32 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the MPU9250, REG113NA-3.3_250 and BMP280. By type, the board carries 19 resistors, 17 capacitors, 11 connectors, 5 diodes, 4 ICs and 1 transistor.

It belongs with the sensors designs in this gallery.

From the project

HW designs

This is not an easy build and uses very small components.

I use a small oven which i bought from a local store, a microscope from ebay and solder paste from an online UK store. But if you are thinking of building this then i suspect that you already have the right tools.

The BOM file has all the part numbers listed either from RS Components or mouser (the 2 component suppliers i use), You do not have to buy from there but adding the part numbers to the RS website search will bring up the item page which has all the info. The components can be bought from where ever you like.

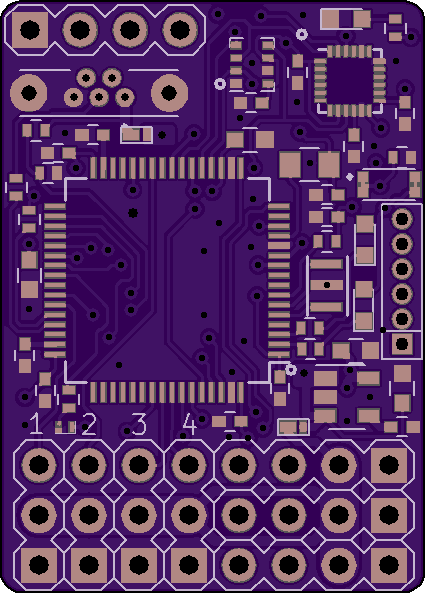

QUarkNano 9250, from the project README
From the project README

Main components on the QUarkNano 9250

MPU9250STM32F405RGT6REG113NA-3.3_250BMP280

QUarkNano 9250 bill of materials (BOM)

60 components, 32 distinct parts.

QtyPartRefs
1
MPU9250
U1
1
STM32F405RGT6
U2
1
REG113NA-3.3_250
U3
1
BMP280
U4
1
NFET_CSD13383F4_MICRO
Q1
1
CSTCE16M0V53A-R0
Y1
1
SD_CARD_JST
J1
4
PIN_2.54x3_VRT
J2, J3, J4, J5
4
PIN_2.54x4_VRT
J6, J7, J8, J9
1
USB_A_VRT_WURTH
J10
1
CONN_1.27_6
J12
1
EVPBB2A9B000
S1
1
Red_LED_0603
D1
1
Blue_LED_0603
D2
1
Green_LED_0603
D3
2
SDM1U20CSP-7
D4, D5
1
Ferrite_Bead_0805_Wurth
FB1
2
0402_2.2uF_X5R
C1, C2
4
0402_100nF_X5R
C3, C4, C6, C10
1
0402_10nF_X5R
C5
Show 12 more
QtyPartRefs
2
0603_100nF_X7R
C7, C9
1
0402_10nF_X5R
C8
2
0603_4.7uF_X5R
C11, C12
5
0402_100nF_X7R
C13, C14, C15, C16, C17
6
0402_10K
R1, R5, R8, R9, R10, R11
3
0402_330R
R2, R3, R4
2
0402_22R
R6, R7
2
0402_4k7
R12, R13
1
0402_1K1
R14
1
0402_1K
R15
1
0402_9K1
R16
3
0402_2K
R17, R18, R19

QUarkNano 9250 design files

The KiCad project lives in the ukmook/qUark repository on GitHub; these links point at the commit this page was built from.

QUarkNano 9250: common questions

What microcontroller does the QUarkNano 9250 use?

The QUarkNano 9250 is built around the STM32F405RGT6, from the STM32 family.

How big is the QUarkNano 9250 PCB?

The QUarkNano 9250 measures 21.5 × 30 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the QUarkNano 9250?

60 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the QUarkNano 9250 design files?

From the ukmook/qUark repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the QUarkNano 9250 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which ukmook chose for the repository.
