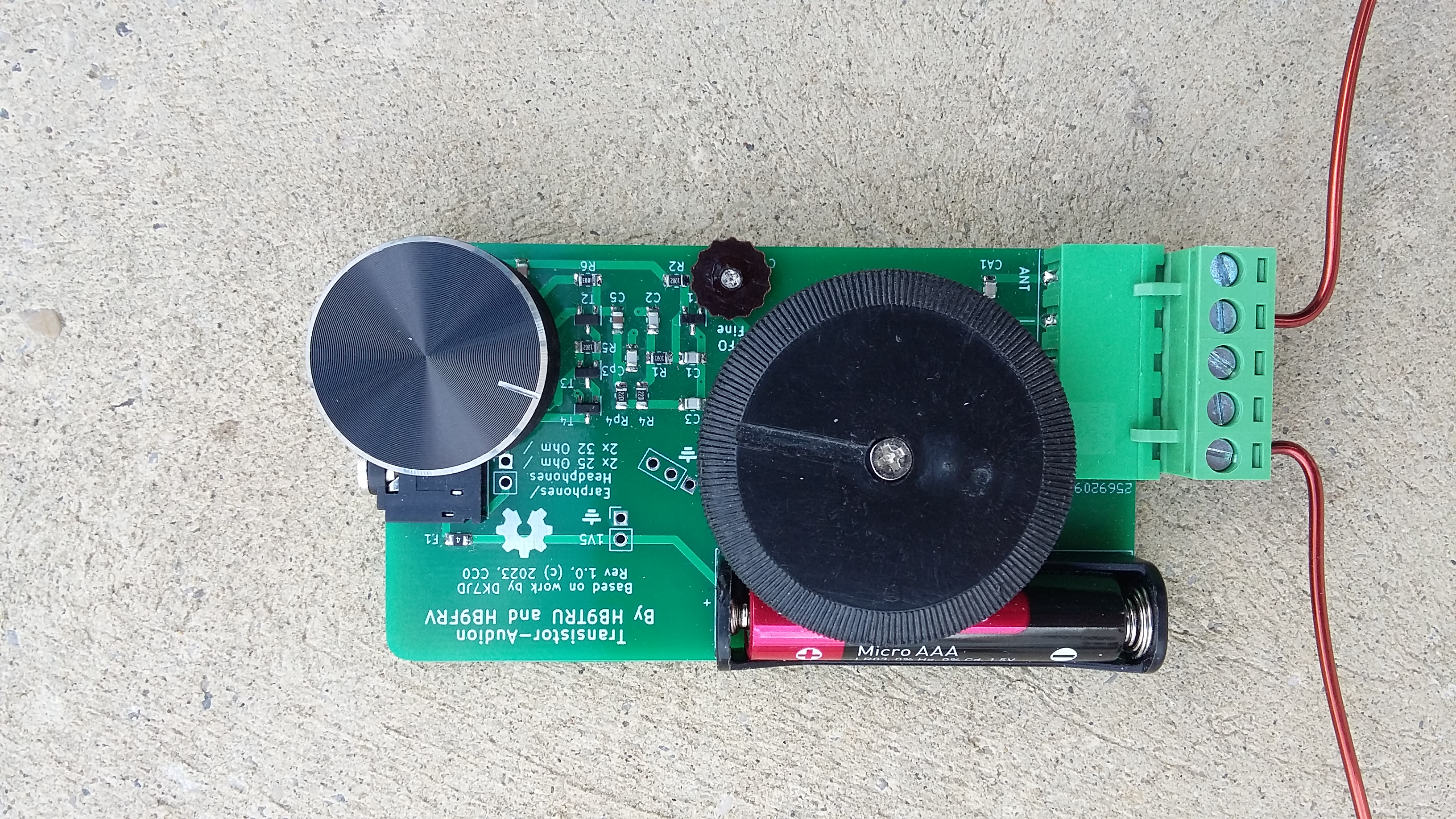

HB9TRU-Transistor-Audion
About the HB9TRU-Transistor-Audion PCB
HB9TRU-Transistor-Audion is an open source PCB design by USKA-FOS, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 90 × 50 mm, with 27 components from 22 distinct parts.
By type, the board carries 8 resistors, 6 capacitors, 4 transformers, 2 connectors, 1 battery holder and 1 fuse.
It belongs with the audio and rf & radio designs in this gallery.
From the project
Transistor-based Audion radio for shortwave reception
Shortwave radio, in the frequency range of 3 to 30 MHz (100 to 10 m wavelength), has lost popularity with the advent of the modern digital communication means, which are much more powerful as to the available information-carrying capacity. Nevertheless, shortwave radio has an unbeatable advantage over Internet & Co, in that it does not depend on external network resources. Shortwave radio enables global, direct point-to-point communication, which remains available when everything else fails. This is the principal reason why shortwave radio is still appreciated and used today for communication…
HB9TRU-Transistor-Audion bill of materials (BOM)
27 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ANT/L | PhoenixContact_MSTBA_2,5_5-G-5,08_1x05_P5.08mm_Horizontal | J2 |
| 1 | HP | Jack_3.5mm_CUI_SJ1-3525N_Horizontal | J4 |
| 1 | 1.5V | BatteryHolder_Keystone_2466_1xAAA | BT1 |
| 1 | 10p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | CA1 |
| 1 | 10n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | Cp3 |
| 1 | 443BF | 443BF_SMD | Cv1 |
| 1 | 5p | C_Trimmer_Murata_TZC3 | Cv2 |
| 1 | 100 mA | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | F1 |
| 1 | 2k2 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | Rp4 |
| 2 | BC858C | SOT-23 | T1, T3 |
| 2 | BC848C | SOT-23 | T2, T4 |
| 1 | 47p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | 2n2 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 1 | 10n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 1 | 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 2 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C6 |
| 1 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 2 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R5 |
| 1 | 10k | Potentiometer_Alps_RK09K_Single_Vertical | R3 |
| 1 | 2k2 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R8 |
| 1 | 220k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
HB9TRU-Transistor-Audion design files
The KiCad project lives in the USKA-FOS/HB9TRU-Transistor-Audion repository on GitHub; these links point at the commit this page was built from.
HB9TRU-Transistor-Audion: common questions
How big is the HB9TRU-Transistor-Audion PCB?
The HB9TRU-Transistor-Audion measures 90 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HB9TRU-Transistor-Audion?
27 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the HB9TRU-Transistor-Audion design files?
From the USKA-FOS/HB9TRU-Transistor-Audion repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the HB9TRU-Transistor-Audion design in my own project?
Yes, under the terms of its CC0-1.0 license, which USKA-FOS chose for the repository.
