NorthernStudios-Low-Noise-Amplifier PCB layout, top view — open source board by uzzambutt

About the NorthernStudios-Low-Noise-Amplifier PCB

NorthernStudios-Low-Noise-Amplifier is an open source PCB design by uzzambutt, published on GitHub under the MIT license. It is a 4-layer board measuring 60 × 30.5 mm, with 18 components from 13 distinct parts.

Other key parts include the SPF5189Z and AMS1117-5.0. By type, the board carries 7 capacitors, 3 connectors, 3 diodes, 2 ICs, 2 resistors and 1 inductor.

It belongs with the audio and rf & radio designs in this gallery.

From the project

The NorthernStudios Wideband VHF/UHF Low-Noise Amplifier (LNA) is an open-source, high-linearity RF preamplifier designed for weak-signal reception across the VHF and UHF bands. Built around the Qorvo / RFMD SPF5189Z GaAs pHEMT MMIC, it operates as an unfiltered wideband gain blo

The NorthernStudios Wideband VHF/UHF Low-Noise Amplifier (LNA) is an open-source, high-linearity RF preamplifier designed for weak-signal reception across the VHF and UHF bands. Built around the Qorvo / RFMD SPF5189Z GaAs pHEMT MMIC, it operates as an unfiltered wideband gain block with active drain biasing, multi-stage supply rail decoupling, and dedicated input ESD protection.

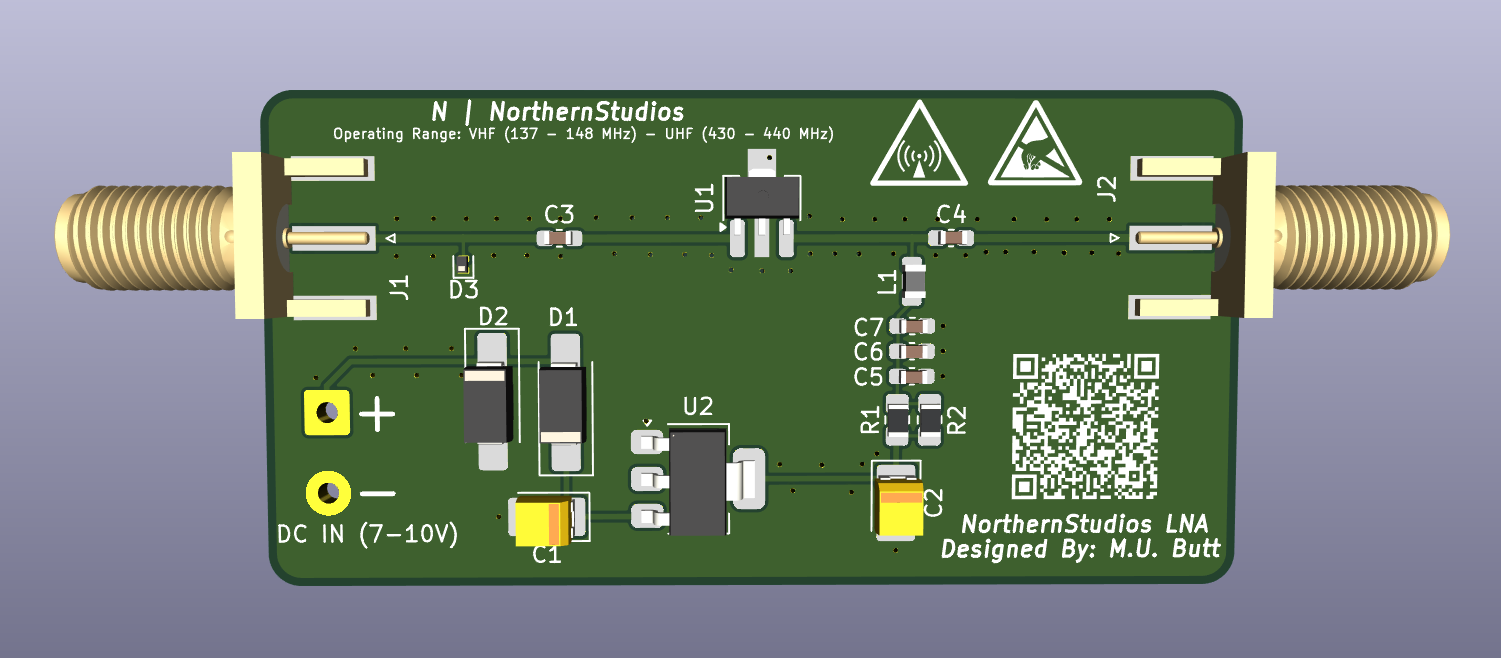

NorthernStudios-Low-Noise-Amplifier, from the project README
From the project README

Main components on the NorthernStudios-Low-Noise-Amplifier

SPF5189ZAMS1117-5.0

NorthernStudios-Low-Noise-Amplifier bill of materials (BOM)

18 components, 13 distinct parts.

QtyPartRefs
1
SPF5189Z
U1
1
AMS1117-5.0
U2
2
SMA 50R
J1, J2
1
DC IN (7-10V)
J3
2
SS34
D1, D2
1
PESD5V0U1BL
D3
1
470nH-1uH
L1
2
22uF (16V)
C1, C2
2
1nF
C3, C4
1
100pF
C5
1
10nF
C6
1
100nF
C7
2
39R
R1, R2
