PiZeroHat PCB layout, top view — open source Raspberry Pi board by vasya-zh
Simulate this board

About the PiZeroHat PCB

PiZeroHat is an open source Raspberry Pi PCB design by vasya-zh, published on GitHub. It is a 2-layer board measuring 65 × 30 mm, with 1 components from 1 distinct parts.

Its main chip is the Raspberry Pi Zero v1.3, from the Raspberry Pi family.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Raspberry Pi Zero Shield/Hat KiCad component and example project

KiCad component and example project for creating Raspberry Pi Zero Shields/Hats with USB and power lines directly (nor with extra cables), with a help of pogo pins (spring contacts).

PiZeroHat KiCad library includes schematic symbols with D+, D- USB lines and +5V_USB and GND lines to power Raspberry Pi Zero properly, and a footprint with 2x20 RPi connector, pogo-pin's points and 2.75mm fixture holes for M2.5 stand-offs.

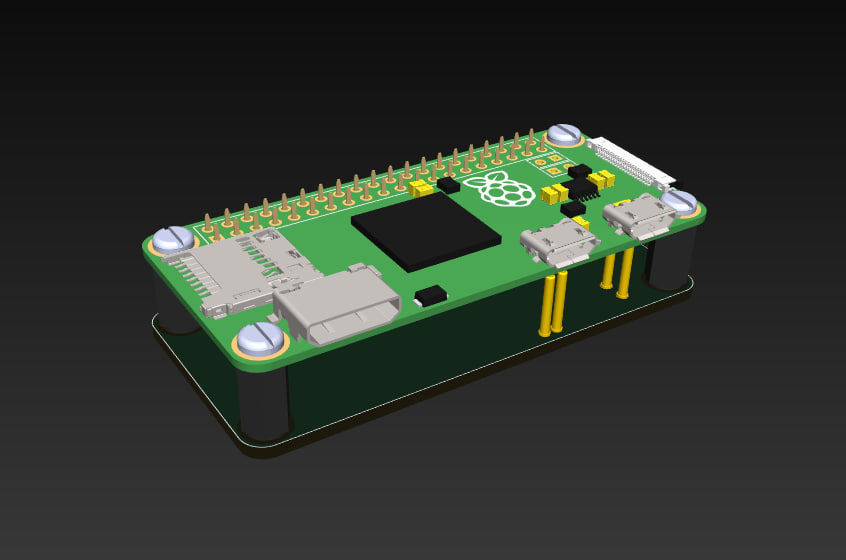

PiZeroHat, from the project README
From the project README

Main components on the PiZeroHat

Raspberry Pi Zero v1.3

PiZeroHat bill of materials (BOM)

1 components, 1 distinct parts.

QtyPartRefs
1
Raspberry Pi Zero v1.3
A1

PiZeroHat design files

The KiCad project lives in the vasya-zh/PiZeroHat repository on GitHub; these links point at the commit this page was built from.

PiZeroHat: common questions

What microcontroller does the PiZeroHat use?

The PiZeroHat is built around the Raspberry Pi Zero v1.3, from the Raspberry Pi family.

How big is the PiZeroHat PCB?

The PiZeroHat measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PiZeroHat?

1 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the PiZeroHat design files?

From the vasya-zh/PiZeroHat repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PiZeroHat design in my own project?

The repository has no license, so all rights stay with vasya-zh. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PiZeroHat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
