MiSTer SNAC2IEC

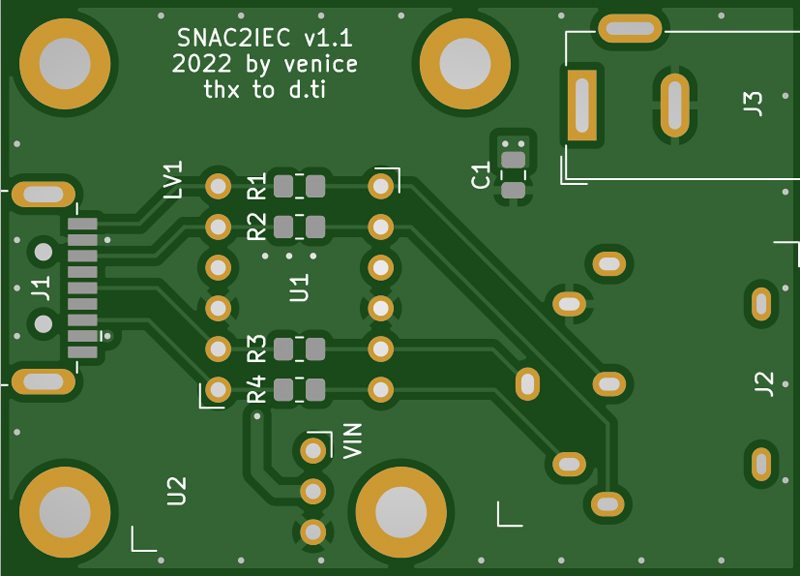

About the MiSTer SNAC2IEC PCB
MiSTer SNAC2IEC is an open source PCB design by venice1200, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 36 mm, with 10 components from 7 distinct parts.
Other key parts include the Breakout_LevelShifter_4-Channel and Breakout_LDO. By type, the board carries 4 resistors, 3 connectors, 2 ICs and 1 capacitor.
It belongs with the retro computing and dev boards & breakouts designs in this gallery.
From the project
Commodore/CBM IEC Adapter for MiSTer FPGA
The Adapter converts the MiSTer FPGA User Port (Serial IO) into a Commodore IEC/CBM (Serial) Bus Port. Use the Adapter to connect a real Commodore Floppy 1541 or compatible devices (SD2IEC/PI1541) to your MiSTer.
I know there are better and faster ways to load a game into a MiSTer's Core, but this is fun 🚀.
Cores and some Hardware Devices are also tested with JiffyDOS 🚀.
Main components on the MiSTer SNAC2IEC
MiSTer SNAC2IEC bill of materials (BOM)
10 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Breakout_LevelShifter_4-Channel | Breakout_LevelShiffer_4Channel | U1 |
| 1 | Breakout_LDO | Breakout_LDO_AMS1117_3.3V | U2 |
| 1 | USB3_A | USB3_A_Plug_Wuerth_692112030100_Horizontal | J1 |
| 1 | DIN-6 | DIN_6Pin_Print_Connector_IEC_Layout | J2 |
| 1 | Barrel_Jack | BarrelJack_Wuerth_6941xx301002 | J3 |
| 1 | 4.7uF | C_0805_2012Metric | C1 |
| 4 | 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R4 |
MiSTer SNAC2IEC design files
The KiCad project lives in the venice1200/MiSTer_SNAC2IEC repository on GitHub; these links point at the commit this page was built from.
MiSTer SNAC2IEC: common questions
How big is the MiSTer SNAC2IEC PCB?
The MiSTer SNAC2IEC measures 50 × 36 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MiSTer SNAC2IEC?
10 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the MiSTer SNAC2IEC design files?
From the venice1200/MiSTer_SNAC2IEC repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MiSTer SNAC2IEC design in my own project?
Yes, under the terms of its GPL-3.0 license, which venice1200 chose for the repository.
