About the Linear-PSU-Isolated-5V PCB

Linear-PSU-Isolated-5V is an open source PCB design by voilderz, published on GitHub. It is a 2-layer board measuring 105 × 105 mm, with 14 components from 12 distinct parts.

Other key parts include the TSR3-2450N. By type, the board carries 4 capacitors, 2 connectors, 2 fuses, 2 diodes, 1 IC and 1 resistor.

It belongs with the power & battery designs in this gallery.

From the project

Isolated 5V DC power supply from 230V AC mains KiCad design (educational project)

Şebeke beslemeli, izoleli 5V DC güç kaynağı modülü.

Bu proje, 230V AC şebeke gerilimini alıp izole bir transformatör, tam dalga köprü doğrultucu ve anahtarlamalı step-down regülatör kullanarak kararlı 5V DC çıkış üreten bir güç kaynağı kartıdır. Tasarım; giriş/çıkış aşırı akım koruması, gerilim darbe koruması (MOV) ve görsel güç göstergesi (LED) içerir.

- Surge Protection: Mains girişine B72314S2271K101 (275VAC MOV) entegre edildi. - Isolation Layout: AC ve DC bölgeleri PCB üzerinde fiziksel olarak ayrıştırıldı. - Branding: Silkscreen katmanına logo ve versiyon bilgisi eklendi.

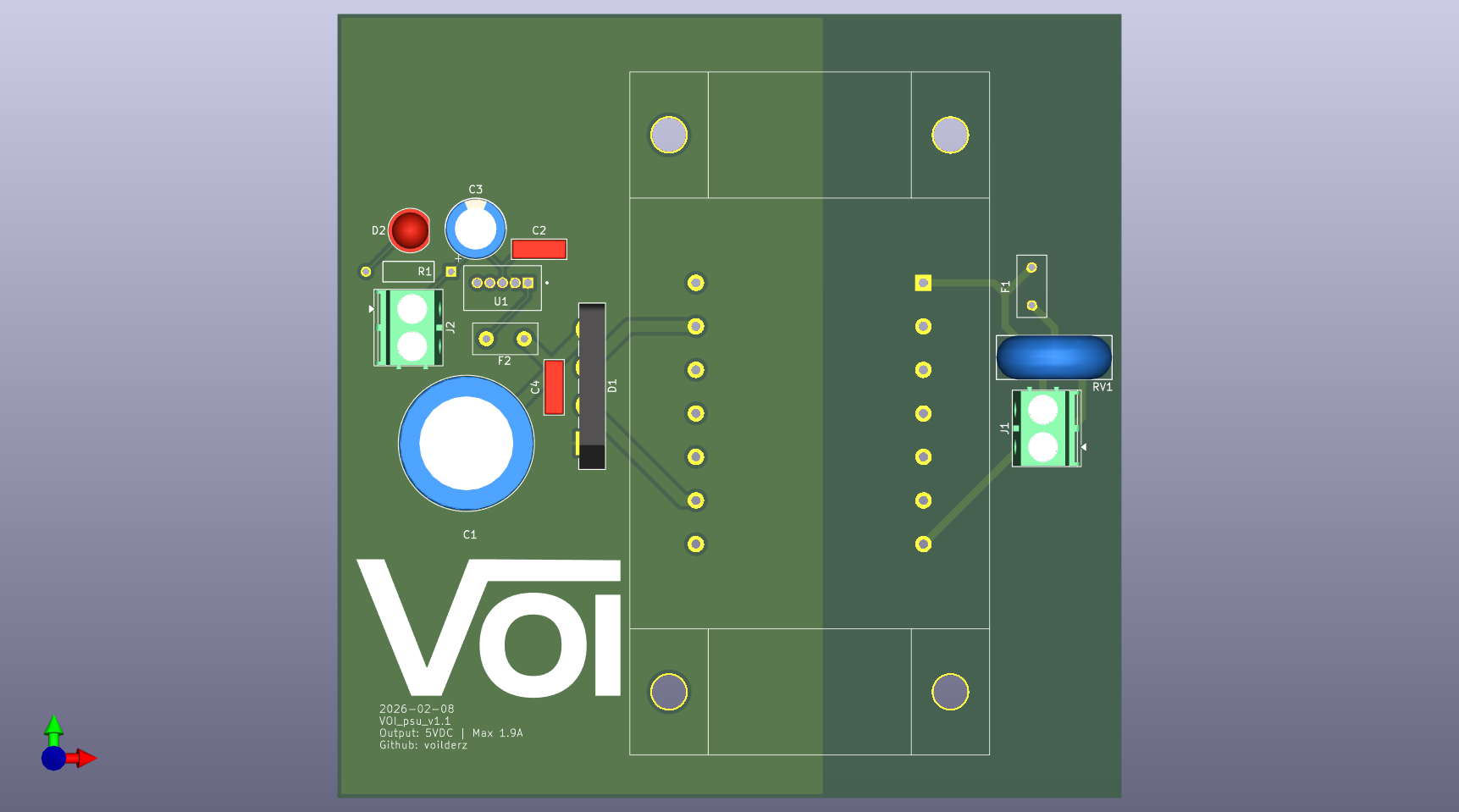

Linear-PSU-Isolated-5V, from the project README
From the project README

Main components on the Linear-PSU-Isolated-5V

TSR3-2450N

Linear-PSU-Isolated-5V bill of materials (BOM)

14 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TSR3-2450N
U1
2
KF129V-5.08-2P
Conn_01x02
J1, J2
1
0697H0250
Fuse_Small
F1
1
80812500000
Fuse_Small
F2
1
B72314S2271K101
Varistor
RV1
1
ASL171112
TEZ16.0-D-1
TR1
1
GBU810_T0_00601
B125C3x00-2200A
D1
1
LED
D2
1
B41858C5688M000
C_Polarized_Small
C1
2
MKS2C031001A00KSSD
C_Small
C2, C4
1
A7C5KN227M1EAAS029
C_Polarized_Small
C3
1
MFR-25FTE52-1K
1K
R1

Linear-PSU-Isolated-5V design files

The KiCad project lives in the voilderz/Linear-PSU-Isolated-5V repository on GitHub; these links point at the commit this page was built from.

Linear-PSU-Isolated-5V: common questions

How big is the Linear-PSU-Isolated-5V PCB?

The Linear-PSU-Isolated-5V measures 105 × 105 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Linear-PSU-Isolated-5V?

14 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Linear-PSU-Isolated-5V design files?

From the voilderz/Linear-PSU-Isolated-5V repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Linear-PSU-Isolated-5V design in my own project?

The repository has no license, so all rights stay with voilderz. Use it as a reference, and ask the author before reusing the design.
